Emerson DSM314 User Manual

User Manual Appendix H
GFK-1742F Jan 2020
Using VersaPro with the DSM314 476
H-5 Creating a Motion Program
H-5.1 Accessing the Motion Editor Screen
Both the Motion Editor and Local Logic Editor are accessed from the VersaPro Folder
Browser window. However, once created and saved, motion programs and Local Logic
programs become part of the PLC CPU Hardware Configuration and are Stored to the PLC
with the other configuration information.
•
On the Main LD screen, click File on the Menu bar, then select New Motion. Then, on
the side menu, click Motion Program (see next figure).

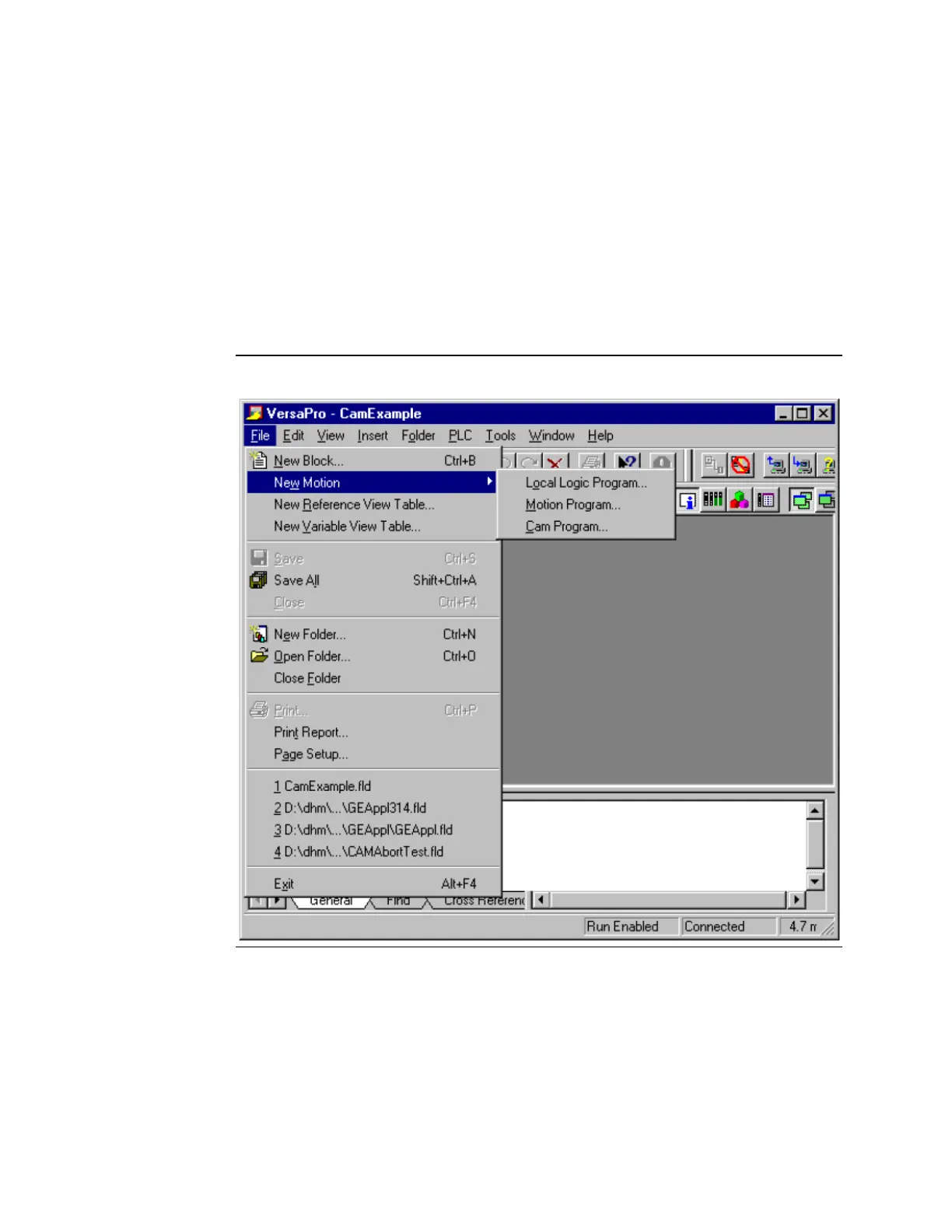

Figure 234: Creating a New Motion Program from the File Menu
