User Manual Chapter 2

GFK-1742F Jan 2020

System Overview 44

2.6 Storing Your Configuration to the Host

Controller

To perform the download operation, first make sure that the communications port is

properly configured. To access communications setup in Machine Edition software, right

click the target you want to connect to in the Navigator window and choose Properties. In

the Inspector window, select the Physical Port through which you want to connect. (For

information on downloading using VersaPro, see Appendix H.)

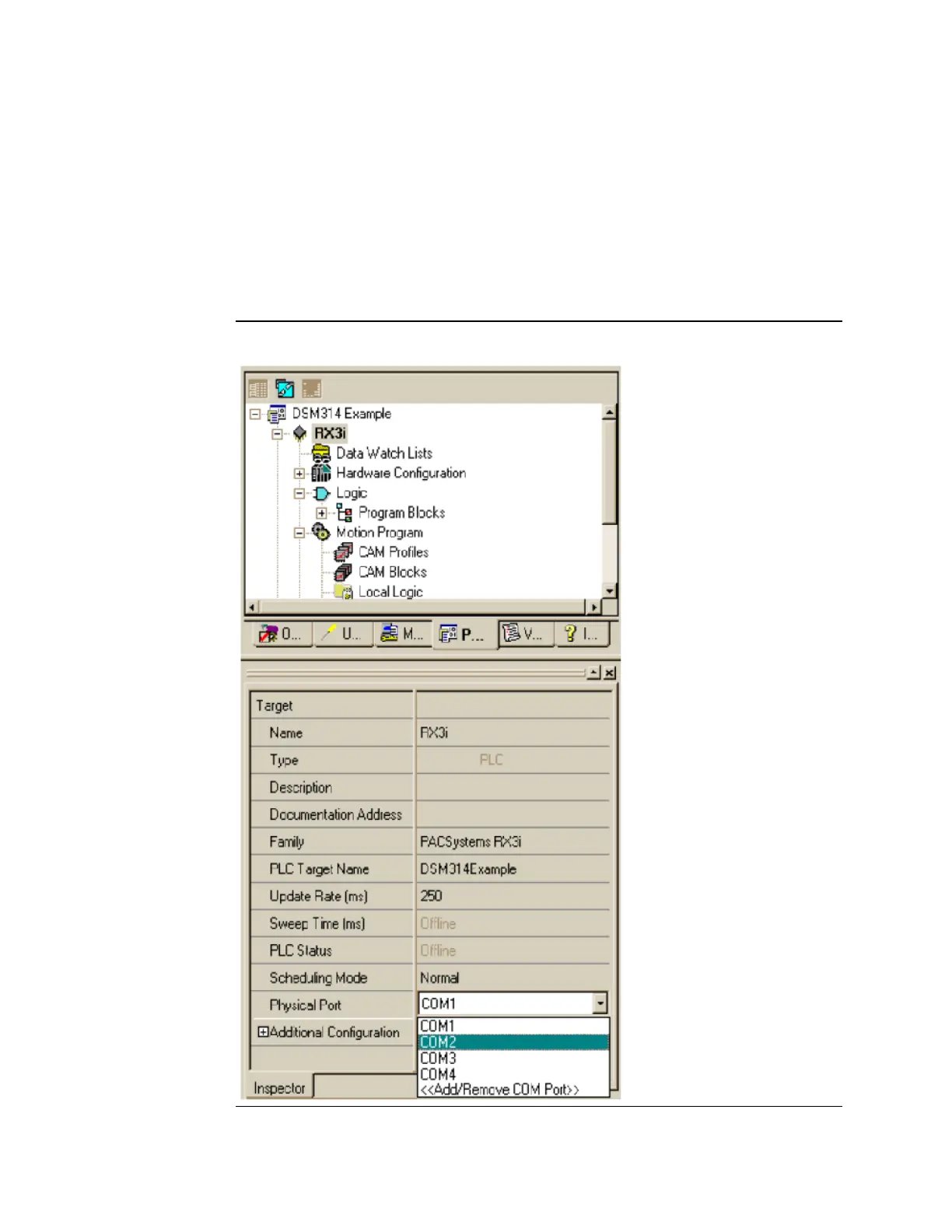

Figure 29: Communications Setup

Default Chapter2
