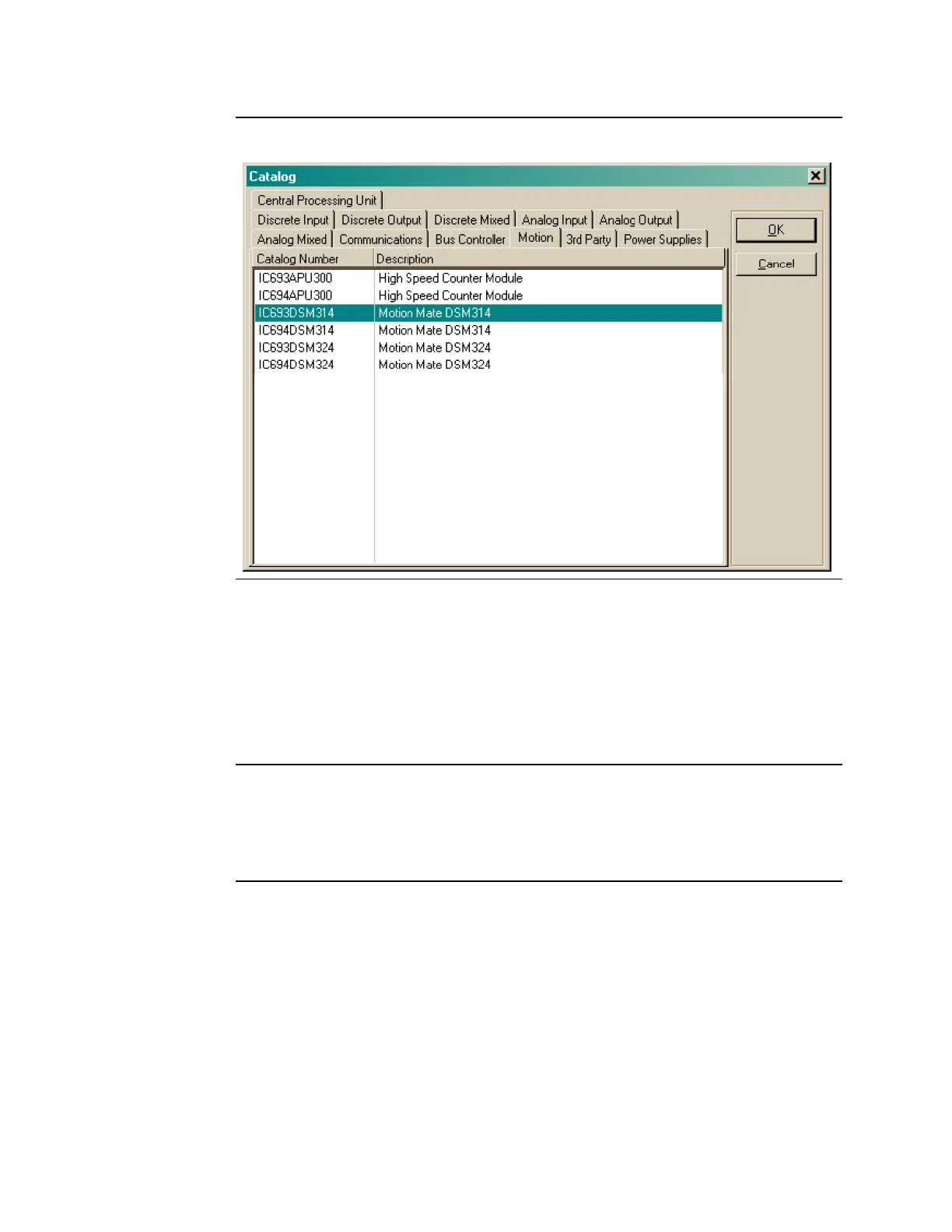

Figure 28

This operation adds the DSM314 to the rack and displays the DSM314

configuration screens that allow you to customize the DSM314 to your

particular application. Refer to chapter 4 for details concerning the DSM314

configuration settings.

You should complete the configuration of your host controller to include the Power Supply,

Rack, CPU and additional modules to match the target system. Consult the software user’s

manual, and on-line help as needed.

Important

The completed configuration must be stored to the host controller. See “Storing Your

Configuration to the Host Controller” on page 44 for instructions on how to do this. For

additional details, consult the software user’s manual, and on-line help.
