Emerson DSM314 User Manual

User Manual Appendix H
GFK-1742F Jan 2020
Using VersaPro with the DSM314 469

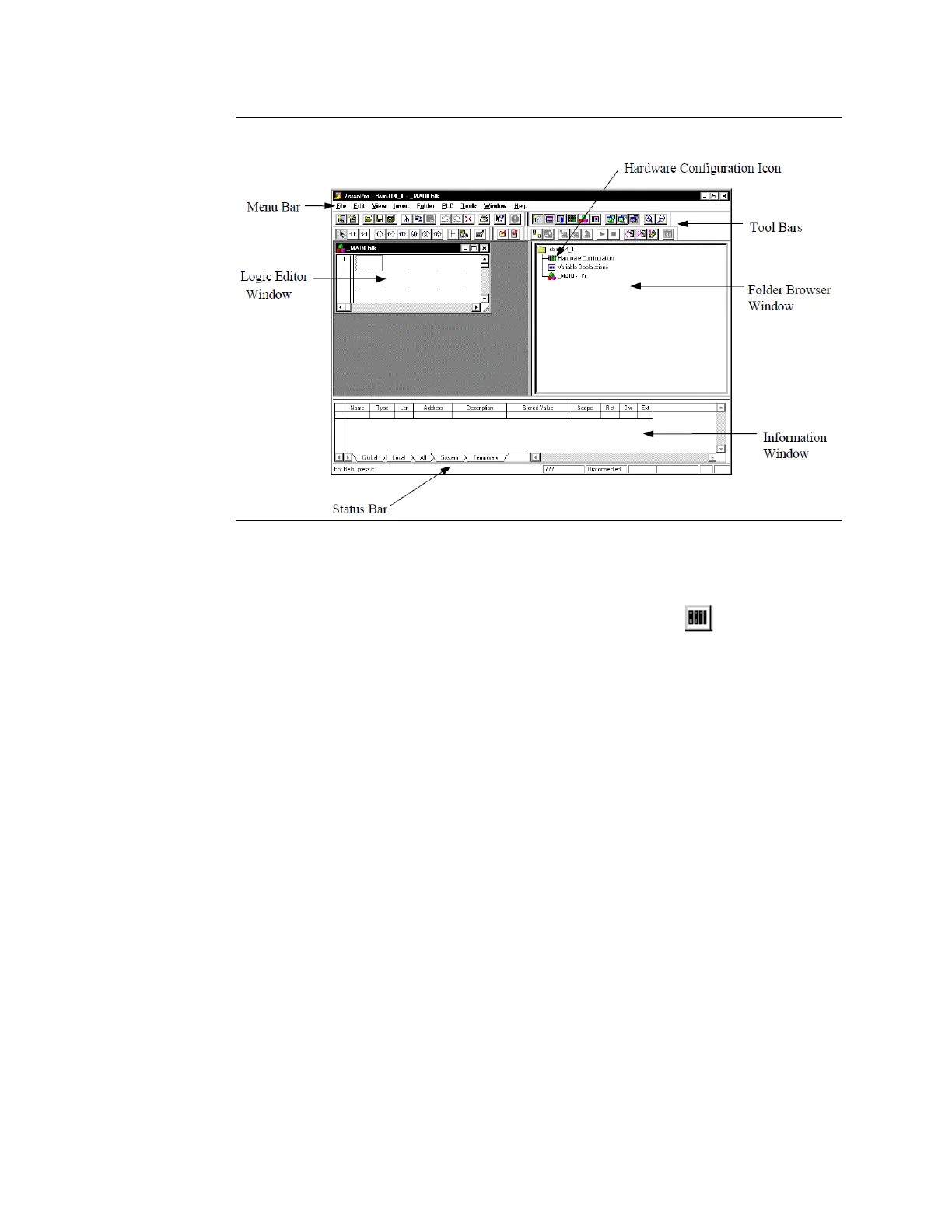

Figure 224: VersaPro’s Main Ladder Diagram (LD) Screen
H-2 Starting the Configuration Process
The configurator is actually a separate program that you can launch from the Main screen
(shown in the previous figure). To begin, double click the Hardware Configuration icon
to launch the HWC (Hardware Configuration) program. The HWC screen may appear as a
window in or on top of the VersaPro Workbench, as shown below. If so, click the Expand
button to expand it to full size. (You may also have to click the Expand Button in the smaller
window to expand it also.)
