User Manual Chapter 2

GFK-1742F Jan 2020

System Overview 29

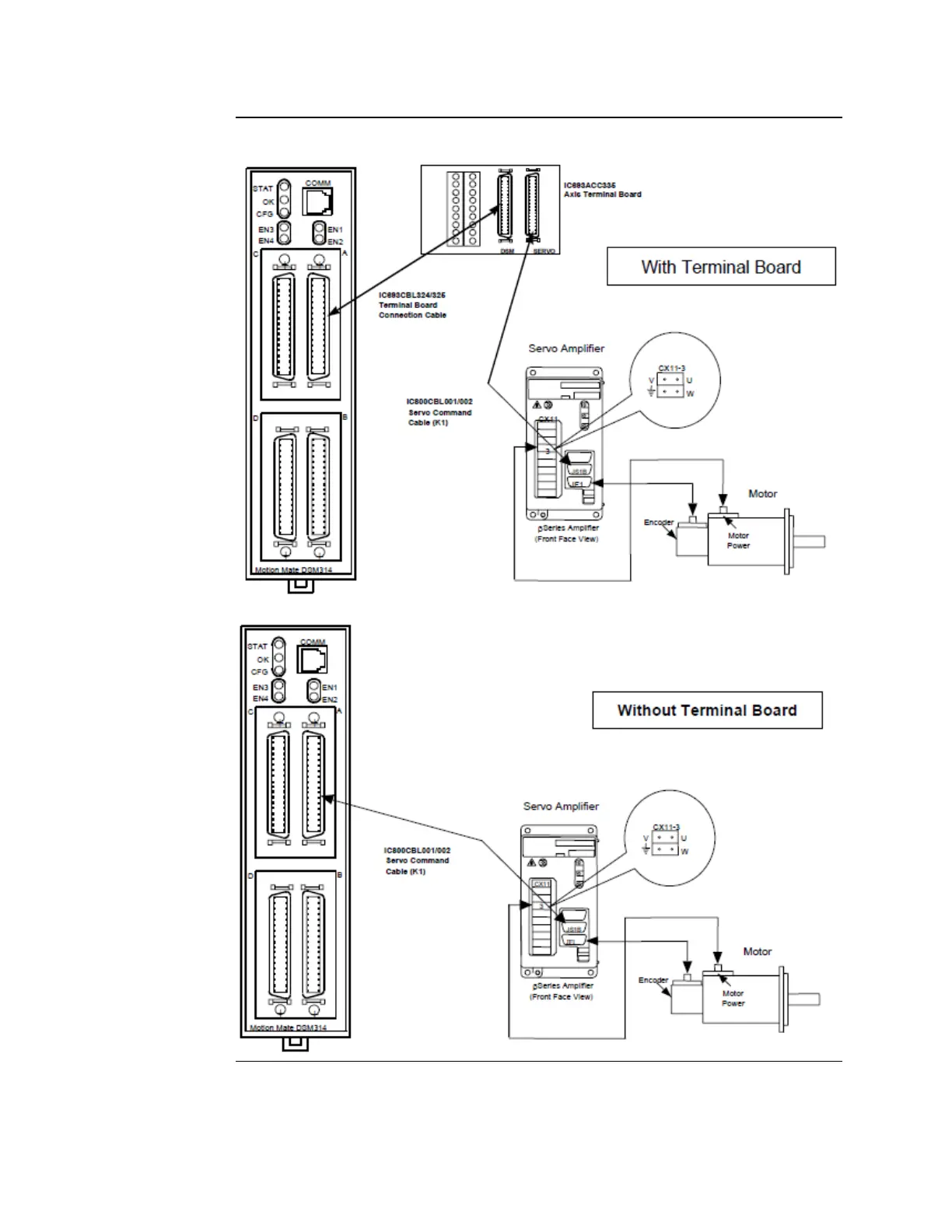

Figure 13:



Series Servo Amplifier Connections

For more information, refer to the connection section of the Servo Product Specification

Guide, GFH-001.
