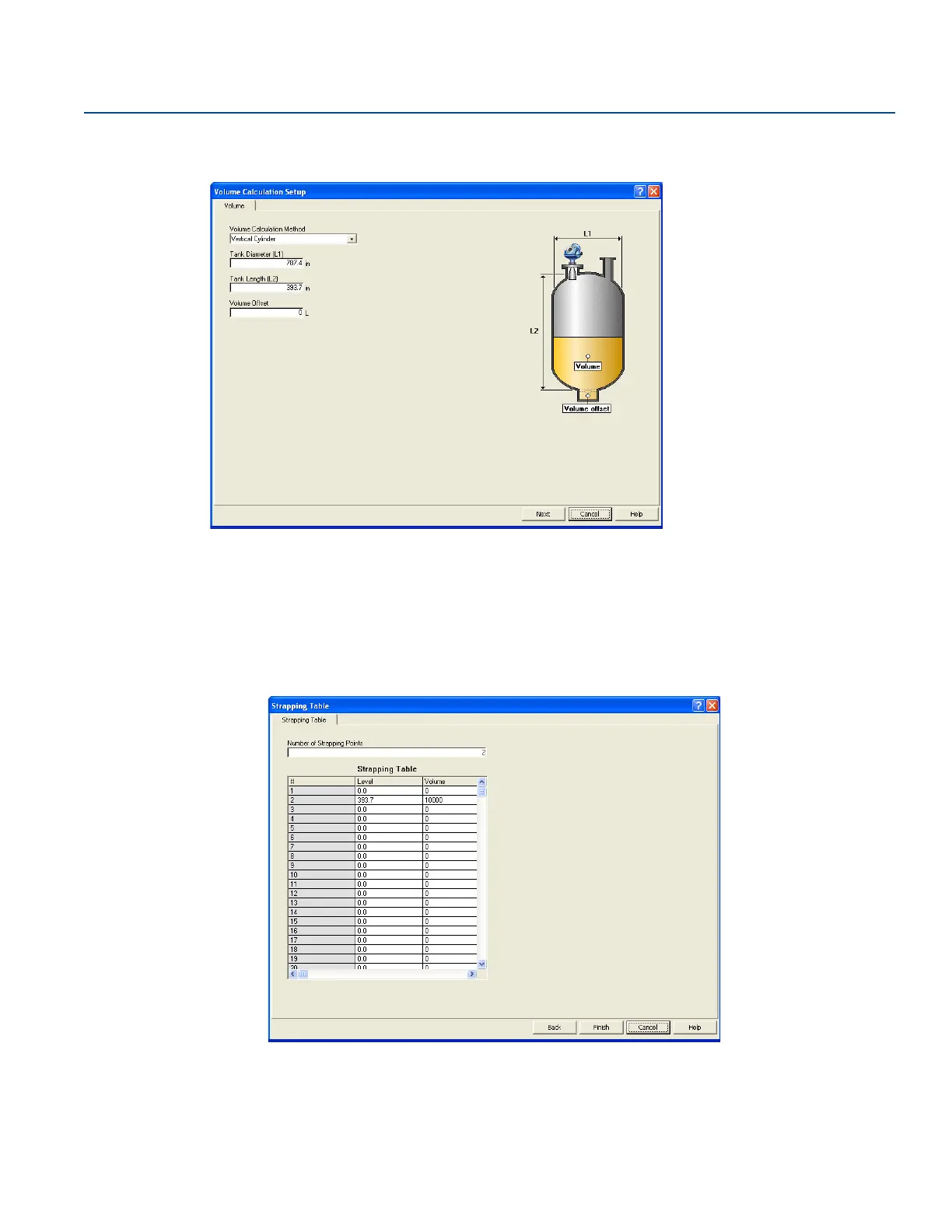

12. To configure volume calculation, select the ADV_CONFIG_TB_1300 block and select the Volume
tab.
13. Select a pre-defined calculation method based on a tank shape that corresponds to the actual tank.
a. Select None if volume calculation is not desired.
b. Use Volume Offset if you do not want zero volume and zero level to match
(for example, if you want to include the product volume below the zero level).
The Strapping Table option is used if the actual tank does not match any of the available options
for pre-defined tanks or if a higher calculation accuracy is desired.
