Specifications and Reference Data
October 2018
Reference Manual
00809-0100-4026, Rev KC
Specifications and Reference Data
222

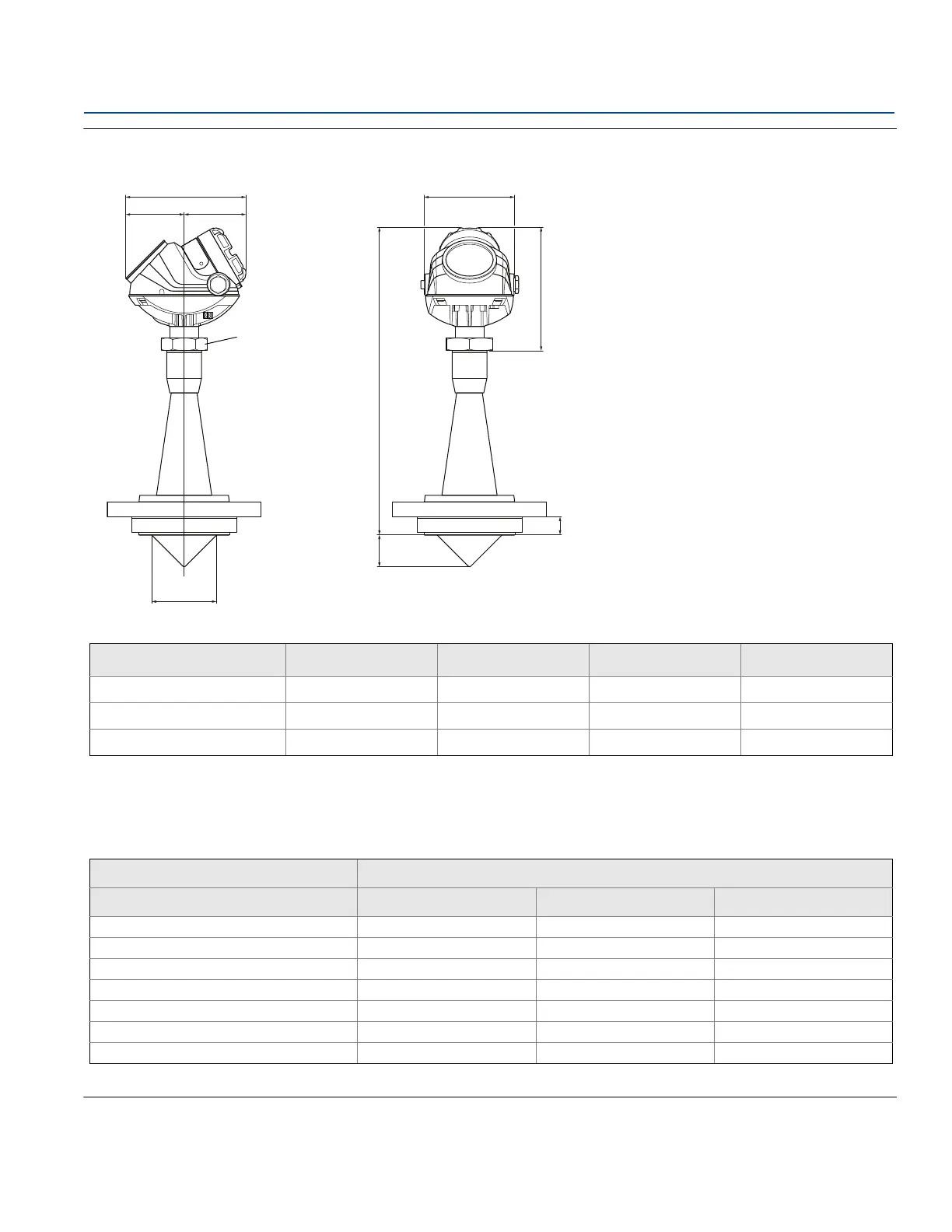

Figure A-7. Rosemount 5402 with Process Seal Antenna (Model Code: 2P-4P)
All dimensions are in inches (mm).
7.1 (180)
3.5 (88) 3.6 (92)
s60
A
B
C
5.2 (133)
7.3 (185)
1.1 (27)
Process seal size (inches) A B C Antenna code
2 1.8 (46) 14.2 (360) 0.9 (22) 2P
3 2.8 (72) 17.3 (440) 1.4 (35) 3P
4 3.8 (97) 18.9 (480) 1.9 (48) 4P
Process connection availability
●
Available as standard
❍
Available as special, consult factory
N/A Not available
Antenna code
Process connection
2P 3P 4P
2 in./DN 50/50A
●
N/A N/A
3 in./DN 80/80A N/A
●
N/A
4 in./DN 100/100A N/A N/A
●
6 in./DN 150/150A N/A N/A N/A
8 in./DN 200/200A N/A N/A N/A
Threaded connection N/A N/A N/A
Bracket mounting N/A N/A N/A
