Maintenance and care multi EA 5000
146

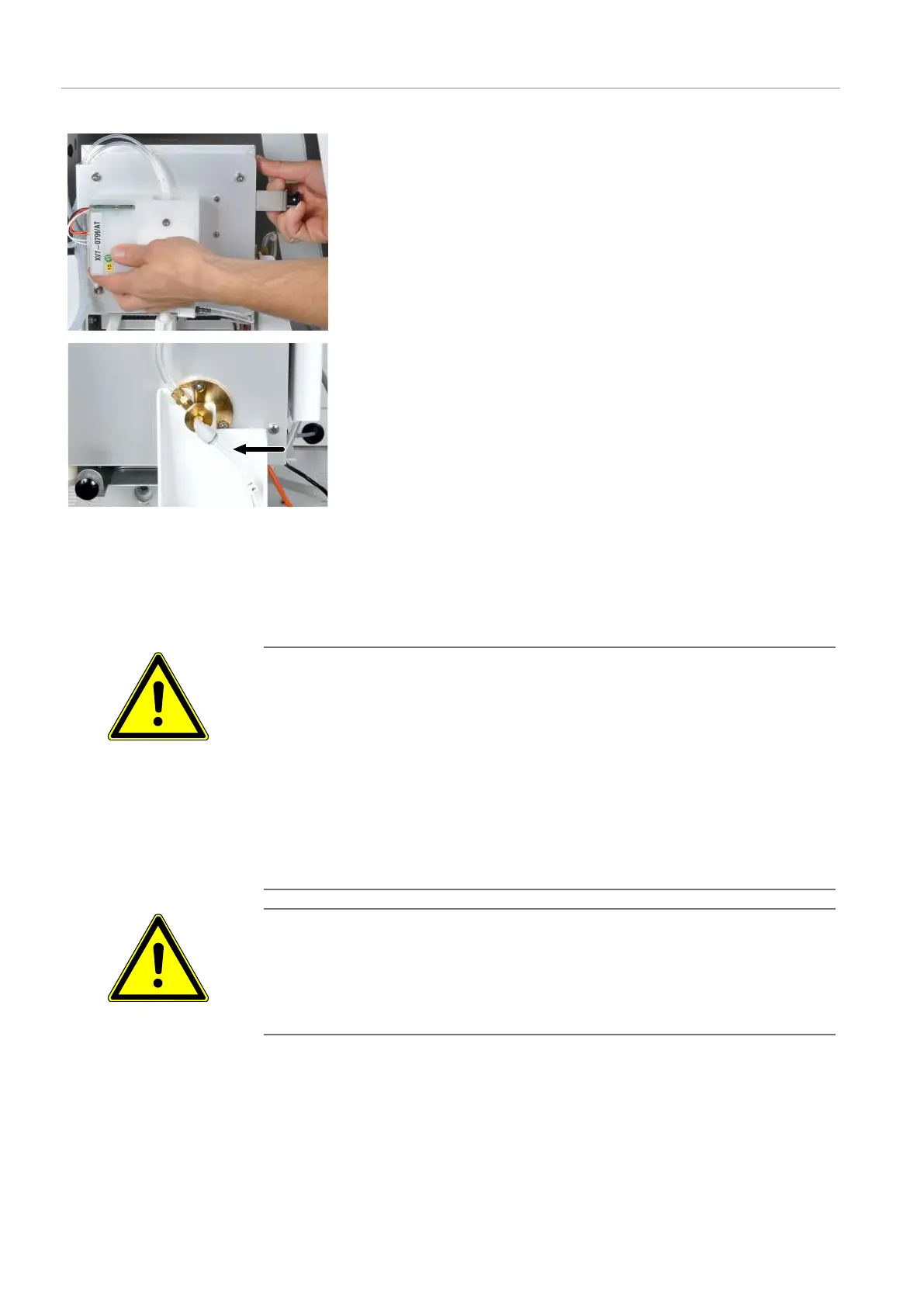

} Move the combustion furnace into the horizontal position.
} Remove the auto-protection valve assembly from the combustion fur-
nace (→ "Maintenance of the auto-protection valve assembly"
134).
} Detach hose 14 (see arrow). Press the ring at the plug connector into the
connector and pull off the hose.
} If necessary, remove the connections on the membrane dryer (for S/N/C
methods).
} Carefully lift the combustion furnace of the basic module.
} The installation of the combustion furnace container is performed in the
reverse order.
14.10 Maintenance of the CLD 5000 nitrogen detector
14.10.1Replacing the ozone generator
DANGER
Risk of electric shock
High voltages are present in the interior of the device, which can lead to electric shock if
contacted.
¡ Only the replaceable ozone generator may be replaced by the user. If the CLD 5000
is not equipped with a replaceable ozone generator, maintenance must be per-
formed by the customer service department.
¡ Before opening: Switch off the device via the power switch.
¡ Disconnect the power cable from the socket.
CAUTION
Risk of burns from the thermal ozone decomposer!
¡ Only perform maintenance in the inside of the device when cold/allow the device to
cool sufficiently.
