multi EA 5000 Carbon analysis with the TOC module
91
1
2
3
4
5
6
7

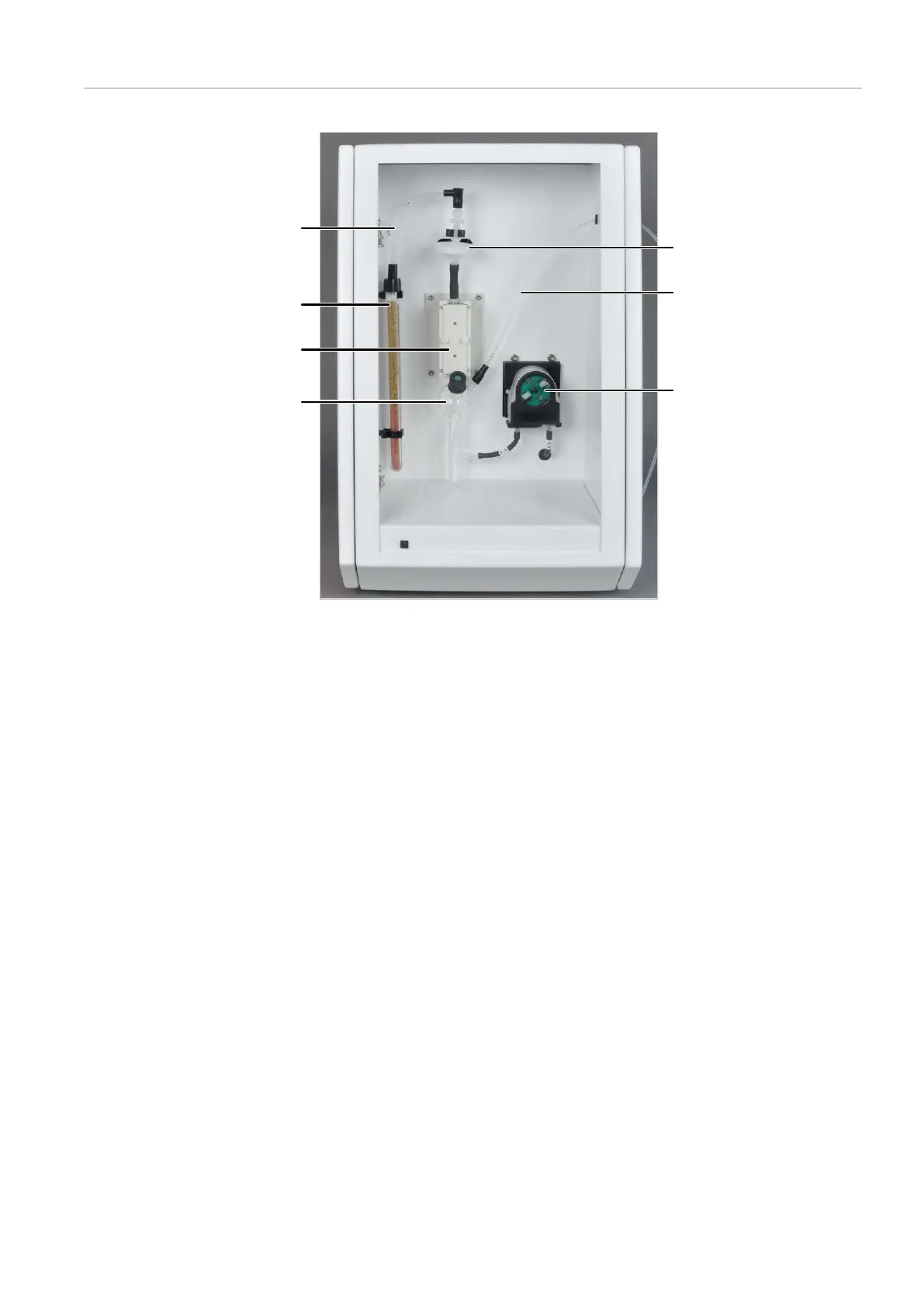

Figure56TOC detector, door opened
1 Water traps 2 Measuring gas hose from the basic
module (hose 80)
3 Condensate pump 4 TIC reactor
5 Cooling block (measuring gas dryer) 6 Halogen trap
7 Hose 81
The basic module must be equipped with the following components to analyze aqueous
samples:
¡ TOC combustion tube
¡ Condensation coil
