Maintenance and care multi EA 5000
168
14.14.6Cleaning the condensation coil
CAUTION
Risk of burns at the hot furnace
¡ Switch off the device and allow it to cool before performing maintenance.
ð Clean the condensation coil annually.
} Switch off the basic modules via the power switch and allow the device to cool.
} Switch off the gas supply and disconnect the power plug from the power outlet.
} Open the doors of the basic module.
} Release the fork clamp connecting the outlet of the TOC combustion tube with the
condensation coil.
} Remove the fork clamp and disconnect the spherical joint connector
} Remove the FAST connector on the bottom end of the condensation coil.
} Carefully remove the condensation coil from the clamps on the combustion furnace.
} Inspect the condensation coil for deposits and cracks.
} Rinse the condensation coil with ultrapure water and dry it well.
} Reinstall the condensation coil in reverse order.
} Check the system for leaks.
ü The analysis system is ready for operation again.
1
2
3

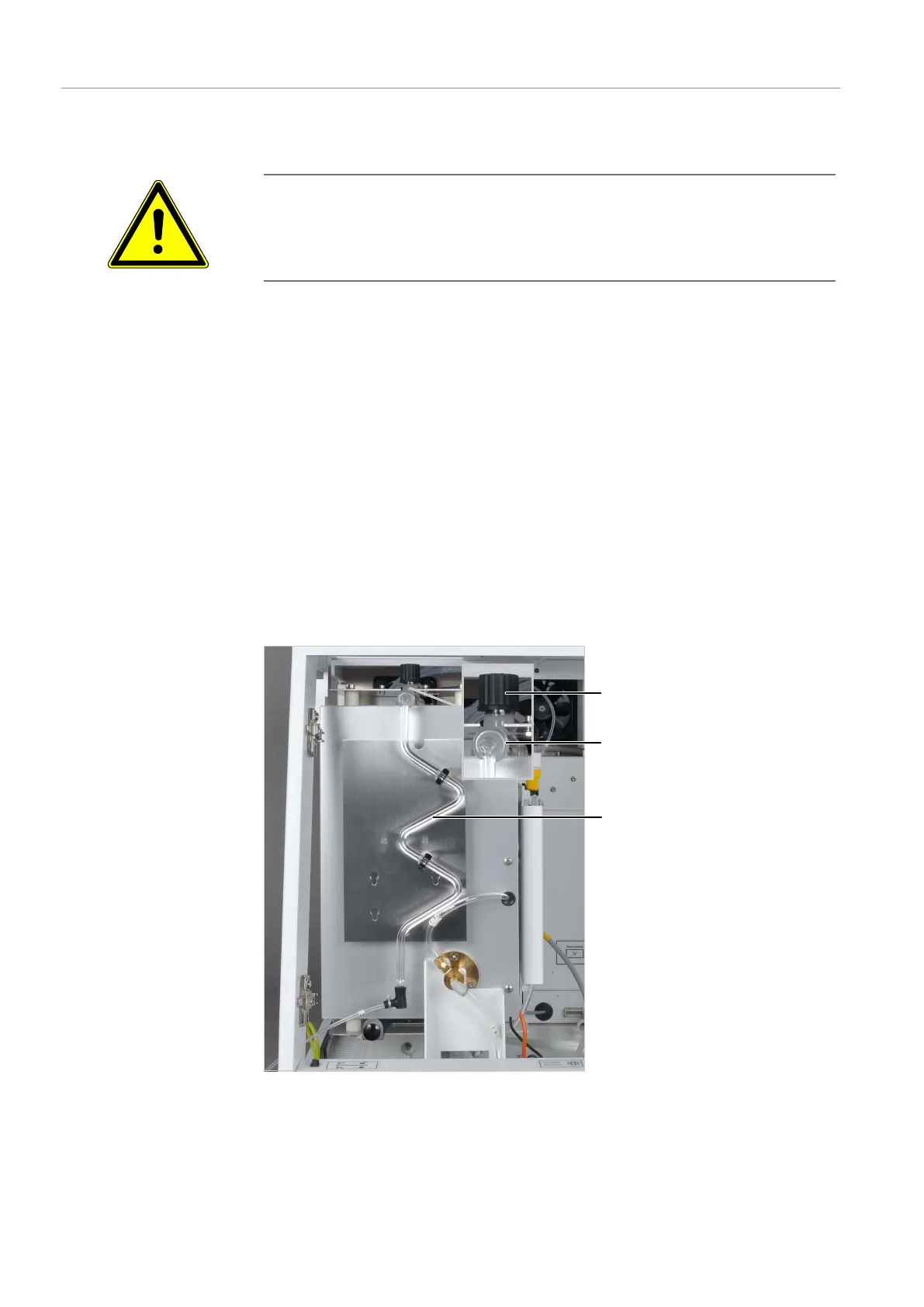

Figure80Components in the basic module
1 TOC combustion tube injection port 2 Spherical joint (fasten with forked
clamp)
3 Condensation coil
