Endress+Hauser Analytik Jena multi EA 5000 User Manual

Sulfur analysis with the Coulometric Sulfur Module multi EA 5000
76
1
2
3
4
5
6
7

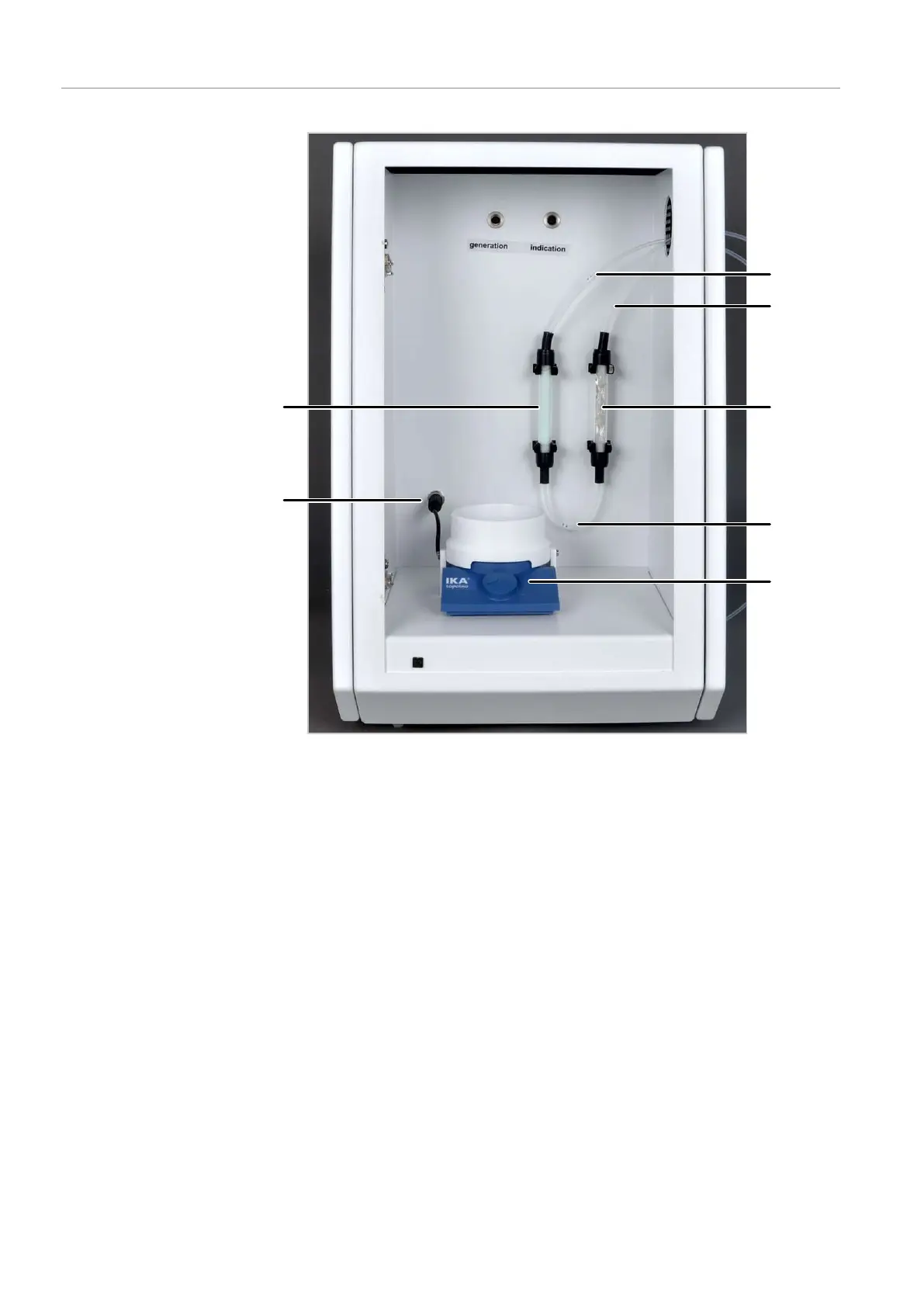

Figure47Coulometric sulfur detectors without measuring cell
1 Measuring gas hose from the basic
module (hose71)
2 Measuring gas hose to the measur-
ing cell (hose72)
3 HX absorber 4 Hose73
5 Magnetic mixer with controls 6 Magnetic mixer connection
7 NOx absorber
Measuring cell
The measuring cell is equipped with electrodes for generation and indication. The elec-
trodes are color-coded:
¡ Generation: Yellow anode, red cathode
¡ Indication: Black indicator electrodes
The measuring gas is routed into the measuring cell via the gas inlet tube. The solution
for the end point routine, the sodium sulfate solution (Na
2
SO
3
) and the solutions for the
cell measurements are dosed, for example, via the port for manual dosing.
The measuring cell must be filled with approx. 100ml electrolyte solution (approx. to
the height of the manual dosing port).
