Installation Proline Promag 53 MODBUS RS485
36 Endress+Hauser
3.3.5 Turning the local display
1. Unscrew the electronics compartment cover from the transmitter housing.
2. Press the latches on the side of the display module and pull the module out of the electronics
compartment cover.
3. Turn the display to the desired position (max. 4 × 45° in both directions) and position it back
on the electronics compartment cover.
4. Screw the cover of the electronics compartment firmly onto the transmitter housing.
a0003236

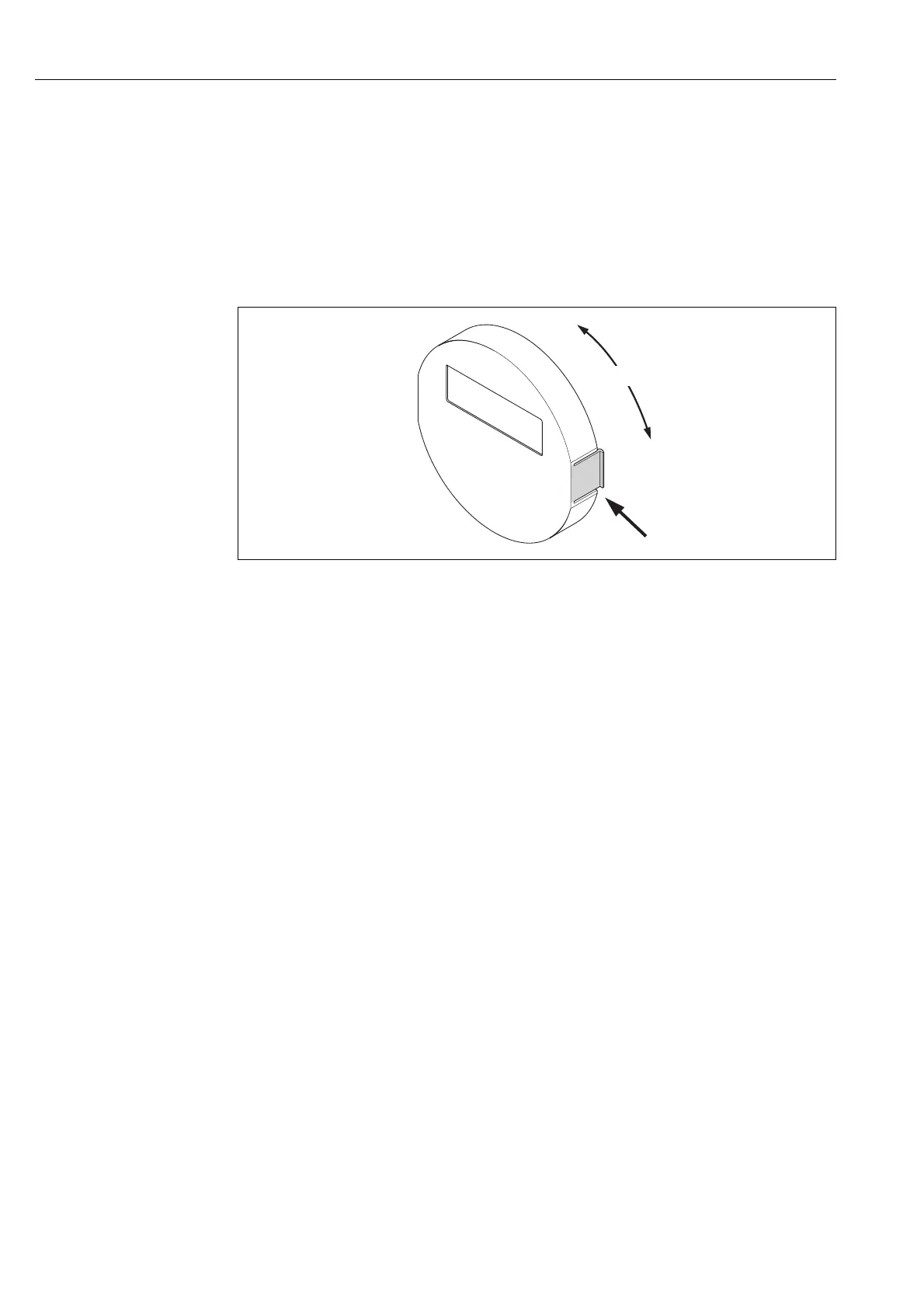

Fig. 24: Turning the local display (field housing)
4x45°
