Proline Promag 53 MODBUS RS485 Installation
Endress+Hauser 35

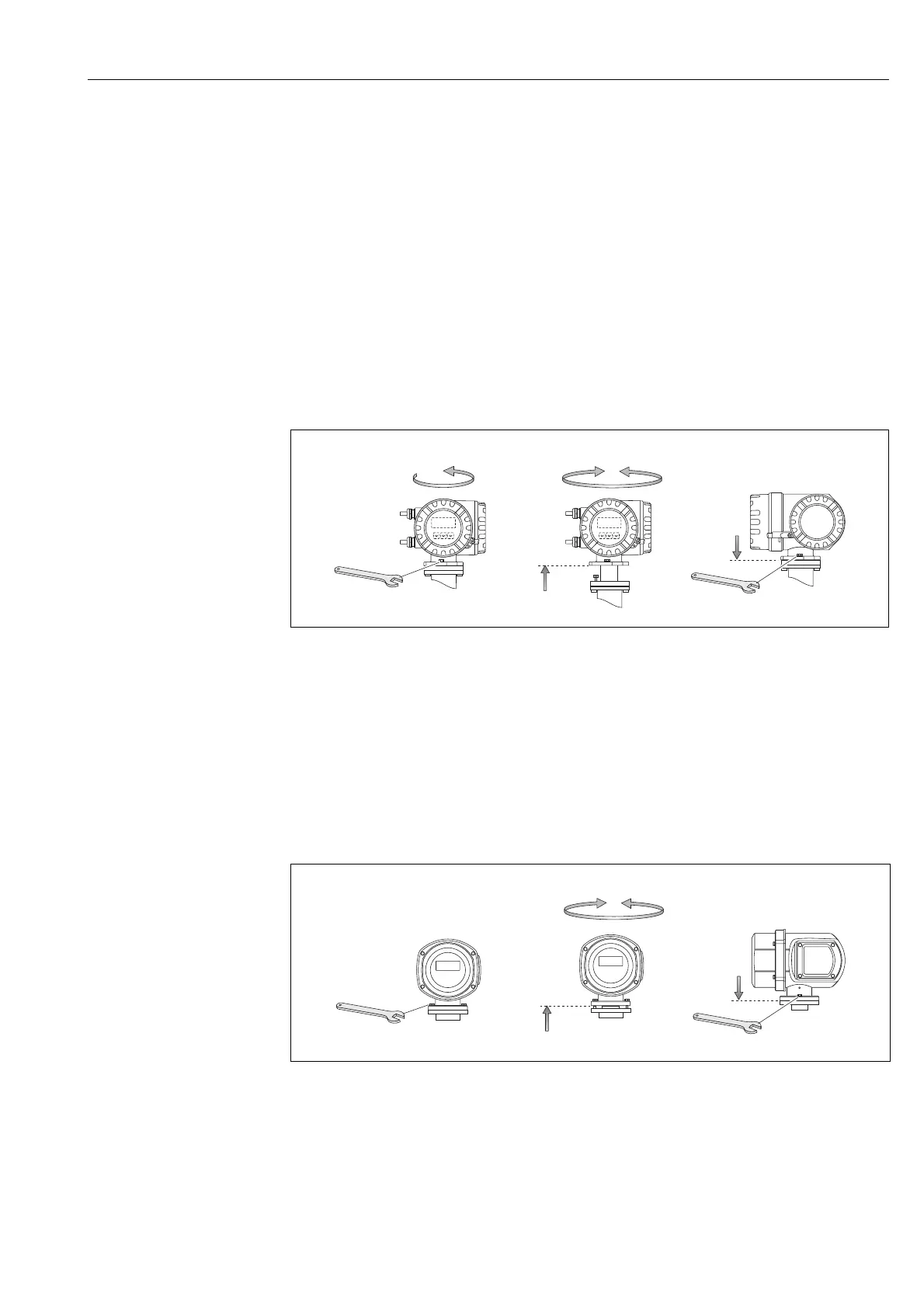

3.3.4 Turning the transmitter housing
Turning the aluminum field housing
#
Warning!
The rotating mechanism in devices with Ex d/de or FM/CSA Cl. I Div. 1 approval is different to
that described here. The relevant procedure is described in the Ex-specific documentation.
1. Loosen the two securing screws.
2. Turn the bayonet catch as far as it will go.
3. Carefully lift the transmitter housing as far as it will go.
4. Turn the transmitter housing to the desired position (max. 2 × 90° in either direction).
5. Lower the housing into position and reengage the bayonet catch.
6. Retighten the two securing screws.
a0004302
Fig. 22: Turning the transmitter housing (aluminum field housing)
Turning the stainless steel field housing
1. Loosen the two securing screws.
2. Carefully lift the transmitter housing as far as it will go.
3. Turn the transmitter housing to the desired position (max. 2 × 90° in either direction).
4. Lower the housing into position once more.
5. Retighten the two securing screws.
a0004303
Fig. 23: Turning the transmitter housing (stainless steel field housing)
3
5
6
1
2
4
1
2
3
4
5
