Proline Promag 53 MODBUS RS485 Wiring
Endress+Hauser 49
4.4 Potential equalization
#
Warning!
The measuring system must be included in potential equalization.
Perfect measurement is only ensured when the medium and the sensor have the same electrical
potential. Most Promag sensors have a reference electrode installed as standard, which guarantees
the required potential equalization.
The following must also be taken into account for potential equalization:
• Company-internal grounding guidelines
• Operating conditions such as material/grounding of piping etc. (see table)
4.4.1 Potential equalization, Promag W, Promag P
Reference electrode available as standard
4.4.2 Potential equalization, Promag H
No reference electrode available!
There is always one electrical connection to the fluid via the metallic process connection.
"
Caution!
When using process connections made of plastic, potential equalization must be guaranteed through
the use of grounding rings → ä 33.
The necessary grounding rings may be ordered separately as an accessory from Endress+Hauser
(→ ä 94).
4.4.3 Connection examples for potential equalization
Standard case
Operating conditions Potential equalization
When using the measuring device in:
• metallic, grounded piping
Potential equalization is carried out via the ground terminal of
the transmitter.
!
Note!
For installation in metal pipes, it is advisable to connect the
ground terminal of the transmitter housing to the piping.
A0011892

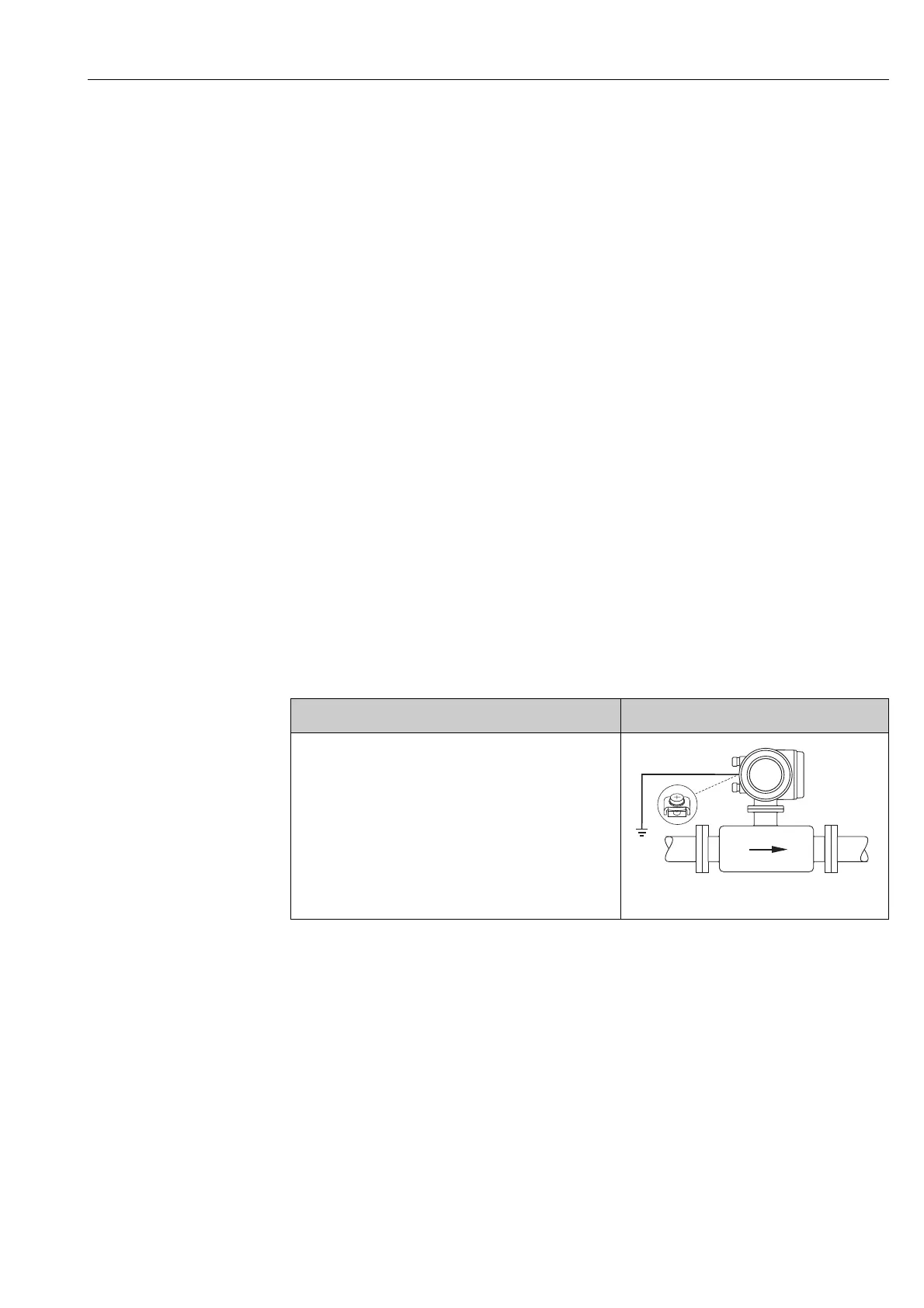

Fig. 32: Via the transmitter's ground terminal
