Operation Proline Promag 53 MODBUS RS485
56 Endress+Hauser

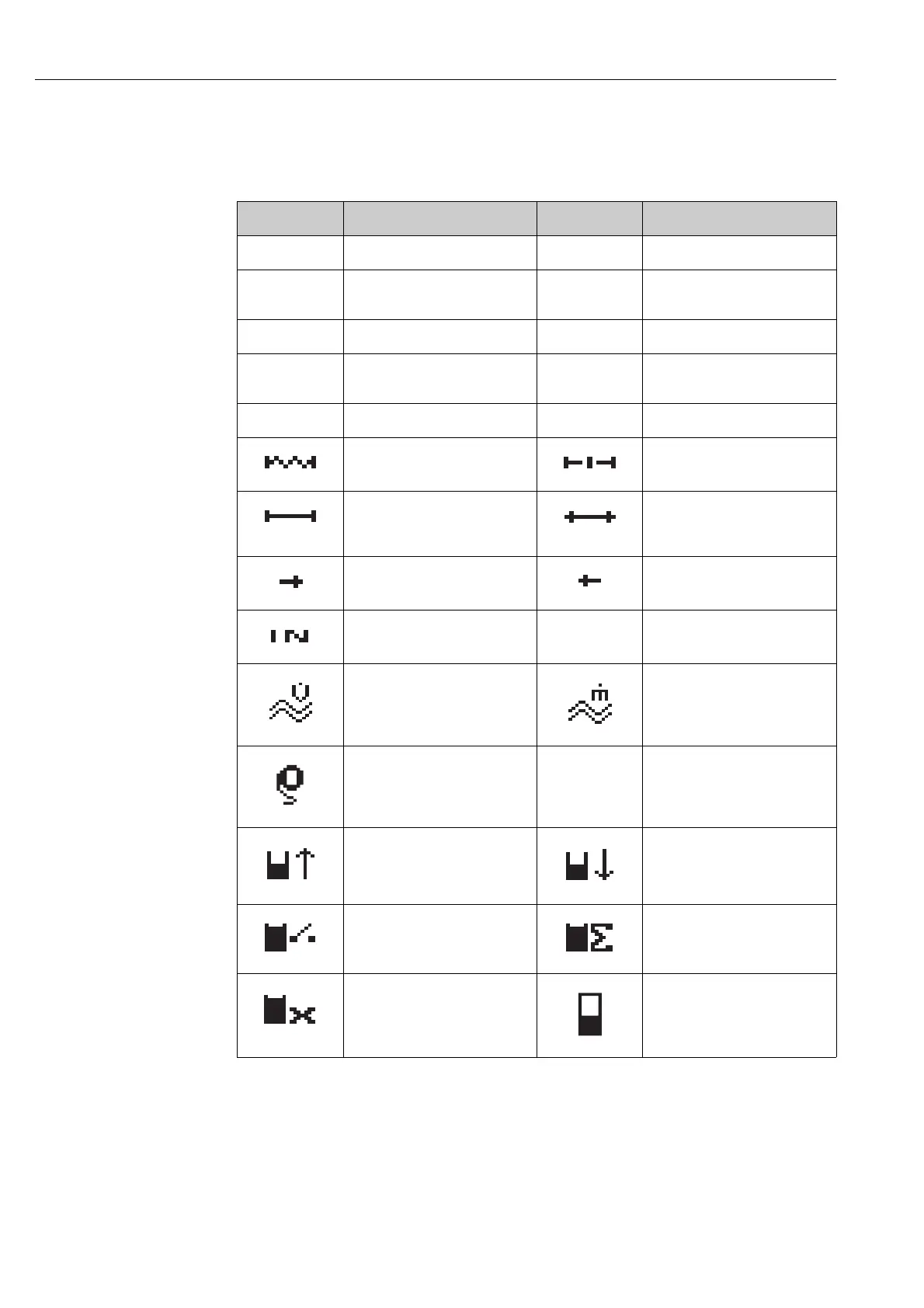

5.2.4 Icons
The icons which appear in the field on the left make it easier to read and recognize measured
variables, device status, and error messages.
Icon Meaning Icon Meaning
S System error P Process error
$ Fault message
(with effect on outputs)
!Notice message
(without effect on outputs)
| 1 to n Current output 1 to n P 1 to n Pulse output 1 to n
F 1 to n Frequency output 1 to n S 1 to n Status/relay output 1 to n
(or status input)
Σ 1 to n Totalizer 1 to n
a0001181
Measuring mode:
PULSATING FLOW
a0001182
Measuring mode:
SYMMETRY (bidirectional)
a0001183
Measuring mode:
STANDARD
a0001184
Counting mode totalizer:
BALANCE (forward and reverse
flow)
a0001185
Counting mode totalizer:
forward
a0001186
Counting mode totalizer:
reverse
a0001187
Status input
a0001188
Volume flow
a0001195
Mass flow
a0001200
Fluid density
a0001201
Batching quantity upwards
a0001202
Batching quantity downwards
a0001203
Batching quantity
a0001204
Batch sum
a0001205
Batch counter (x times)
a0001206
MODBUS communication active
