Proline Promag 53 MODBUS RS485 Identification
Endress+Hauser 7
2 Identification
2.1 Device designation
The flow measuring system consists of the following components:
• Promag 53 transmitter
• Promag W, Promag P or Promag H sensor
Two versions are available:
• Compact version: transmitter and sensor form a single mechanical unit.
• Remote version: transmitter and sensor are installed separately.
2.1.1 Nameplate of the transmitter
a0004363

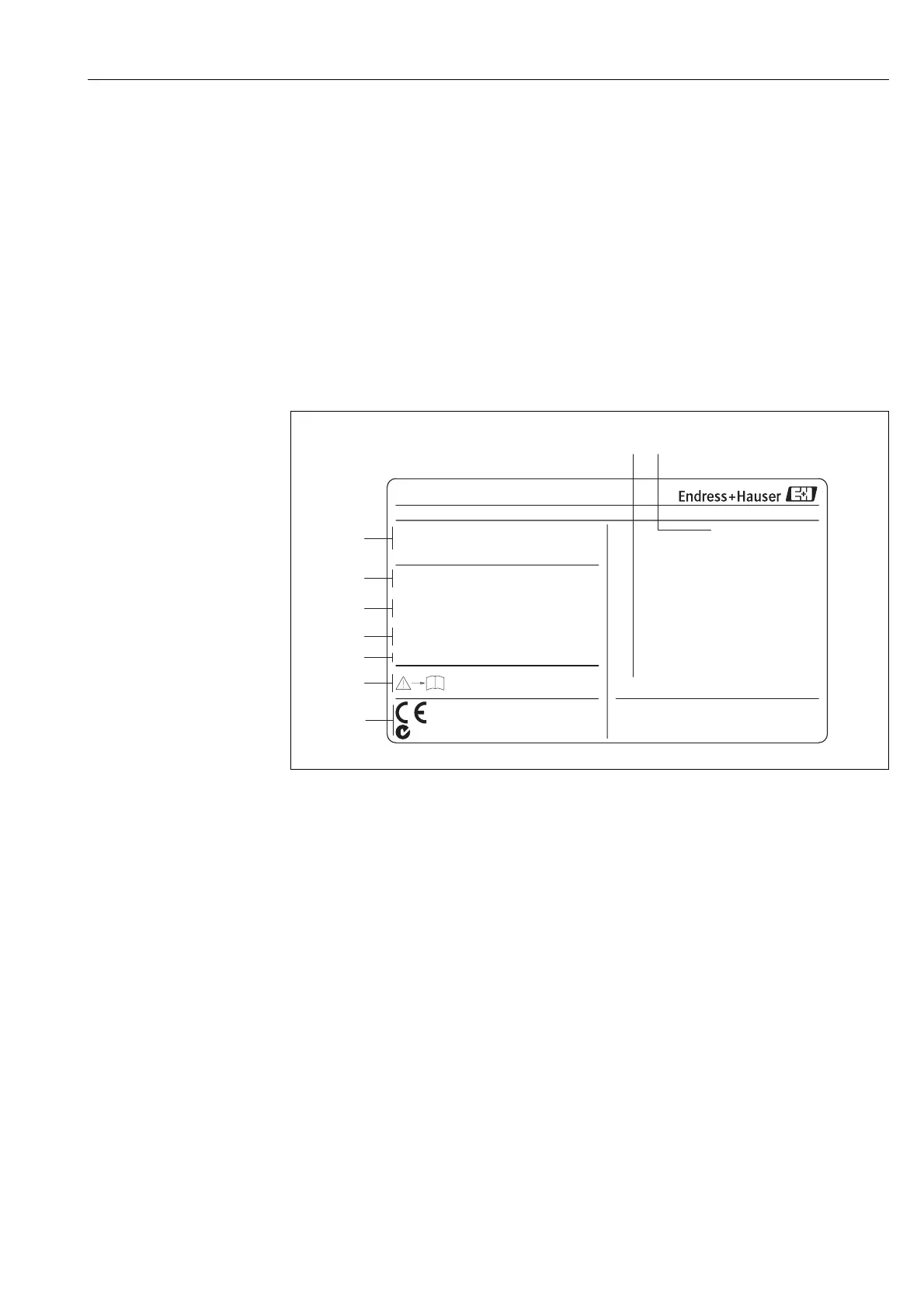

Fig. 1: Nameplate specifications for the "Promag 53" transmitter (example)
1 Order code/serial number: See the specifications on the order confirmation for the meanings of the individual
letters and digits
2 Power supply/frequency/power consumption
3 Additional functions and software
– EPD: with empty pipe detection electrode
– ECC: with electrode cleaning
4 Available outputs:
– I-OUT: with current output
– RELAY: with relay output
– STATUS-IN: with status input (auxiliary input)
5 Reserved for additional information on special products
6 Please comply with the Operating Instructions
7 Reserved for additional information on device version (approvals, certificates)
8 Permitted ambient temperature range
9 Degree of protection
PROMAG 53
-20°C (-4°F) <Tamb<+60°C (+140°F)
IP67 / NEMA/Type 4X Order Code:
Ser.No.:
TAG No.:
53P1H-XXXXXXXXXXXX
12345678901
ABCDEFGHJKLMNPQRST
MODBUS RS485, STATUS-IN
i
f-OUT, I-OUT
ECC
EPD/MSU
1
2
3
4
5
8
9
7
N12895
6
20-260VAC / 20-64VDC
50-60Hz45VA/19W
