5.3 Brief operating instructions to the function matrix
!
Note!
• See the general notes → ä 59.
• Function descriptions → see the "Description of Device Functions" manual
1. HOME position → F → Entry into the function matrix
2. O / S → Select a block (e.g. OUTPUTS)
3. O / S → Select a group (e.g. CURRENT OUTPUT 1)
4. O / S → Select a function group (e.g. CONFIGURATION)
5. Select a function (e.g. UNIT VOLUME FLOW) and
change parameters/enter numerical values:
OS → Select or enter release code, parameters, numerical values
F → Save entries
6. Exit the function matrix:
– Press and hold down Esc key (X) for longer than 3 seconds → HOME position
– Repeatedly press Esc key (X) → Return step by step to HOME position
a0001210

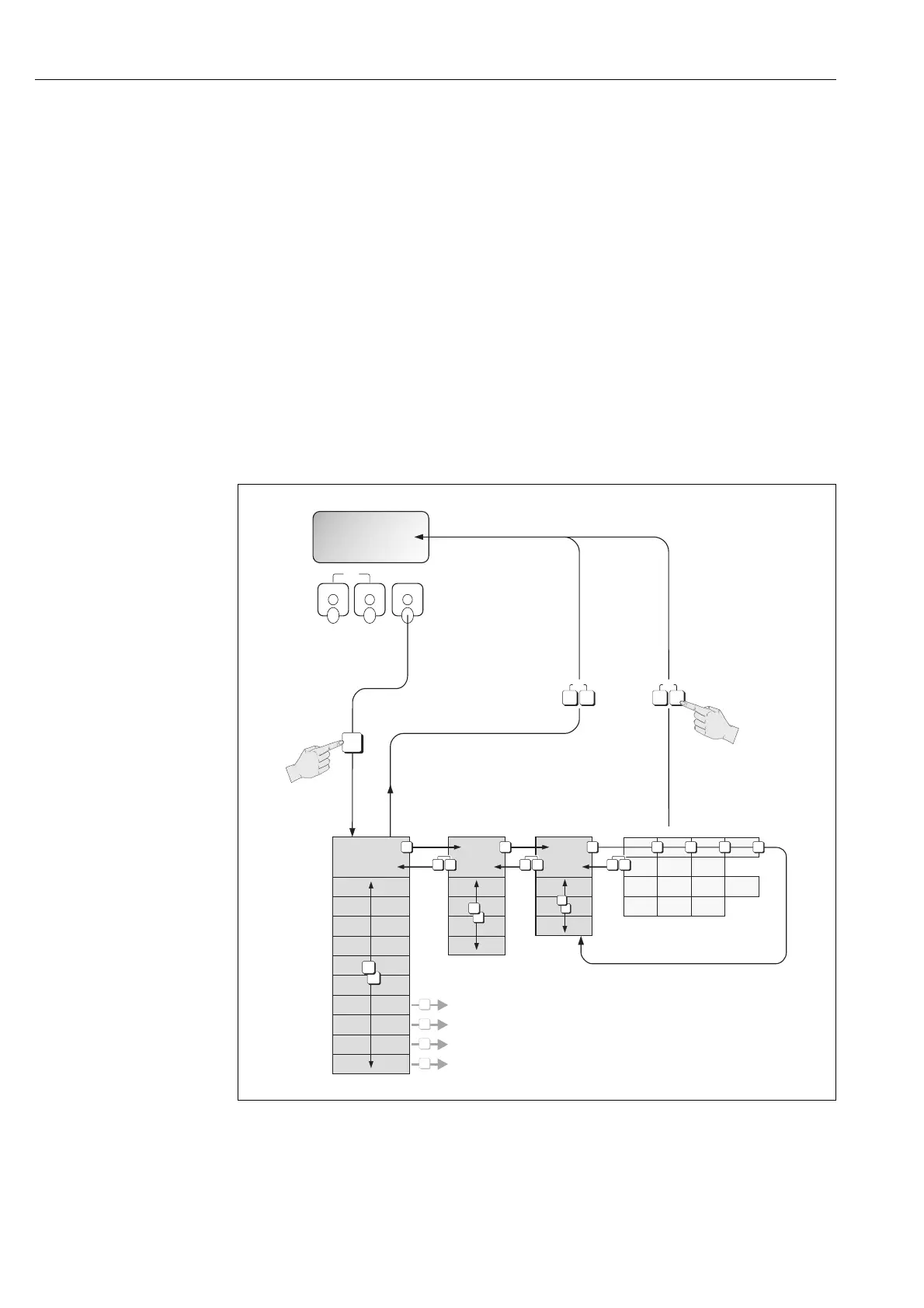

Fig. 41: Selecting functions and configuring parameters (function matrix)
-
+
