Proline Promag 53 MODBUS RS485 Operation
Endress+Hauser 57
5.2.5 Controlling the batching processes using the local display
Filling processes can be carried out directly by means of the local display with the aid of the optional
"(Batching)" software package (F-CHIP, accessories → ä 94). Therefore, the device can be fully
deployed in the field as a "batch controller".
Procedure:
1. Configure all the required batching functions and assign the lower display info line (=
BATCHING KEYS) using the "Batch" Quick Setup menu (→ ä 85 ) or use the function matrix
( → ä 58).
The following "softkeys" then appear on the bottom line of the local display → å 40:
– START = left display key (S)
– PRESET = middle display key (O)
– MATRIX = right display key (F)
2. Press the "PRESET (O)" key. Various batching process functions requiring configuration will
now appear on the display:
3. After exiting the PRESET menu, you can now start the batching process by pressing "START
(S)". New softkeys (STOP / HOLD or GO ON) now appear on the display. You can use these
to interrupt, continue or stop the batching process at any time. → å 40
STOP (S) → Stop batching process
HOLD (O) → Interrupts the batching process (softkey changes to "GO ON")
GO ON (O) → Continues the batching process (softkey changes to "HOLD")
After the batch quantity is reached, the "START" or "PRESET" softkeys reappear on the display.
a0004386

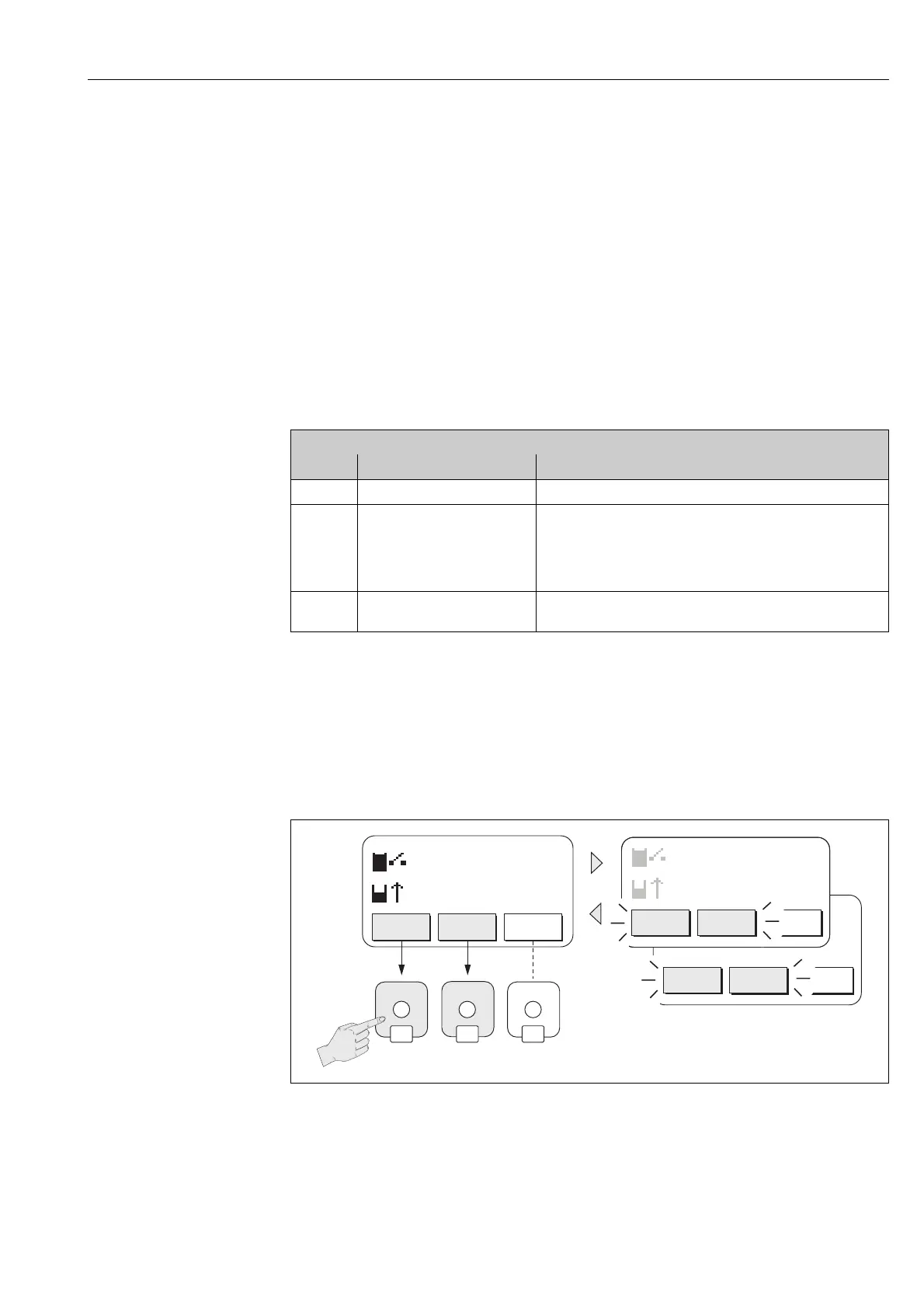

Fig. 40: Controlling batching processes using the local display (softkeys)
"PRESET" → Initial settings for the batching process
No. Function Settings
7200 BATCH SELECTOR OS → Selection of the batching fluid (BATCH #1 to 6)
7203 BATCHING QUANTITY If the "ACCESS CUSTOMER" option was selected for the "PRESET
batch quantity" prompt in the "Batching" Quick Setup, the batching
quantity can be altered via the local display. If the "LOCKED" option
was selected, the batching quantity can only be read and cannot be
altered until the private code has been entered.
7265 RESET TOTAL QUANTITY/
TOTALIZER
Resets the batching quantity counter or the total batching quantity to
"0".
STOP GO ON MATRIX
+2.5 l
0.0 l
+
-
+2.5 l
0.0 l
START
PRESET MATRIX
STOP HOLD MATRIX
E
