Proline Promag 53 MODBUS RS485 Operation
Endress+Hauser 55
5.2.2 Display (operating mode)
The display area consists of three lines in all; this is where measured values are displayed, and/or
status variables (direction of flow, bar graph, etc.). You can change the assignment of display lines
to variables at will in order to customize the display to suit your needs and preferences ( see the
"Description of Device Functions" manual).
Multiplex mode:
A maximum of two different display variables can be assigned to each line. Variables multiplexed in
this way alternate every 10 seconds on the display.
Error messages:
Display and presentation of system/process errors ä 60
a0001173

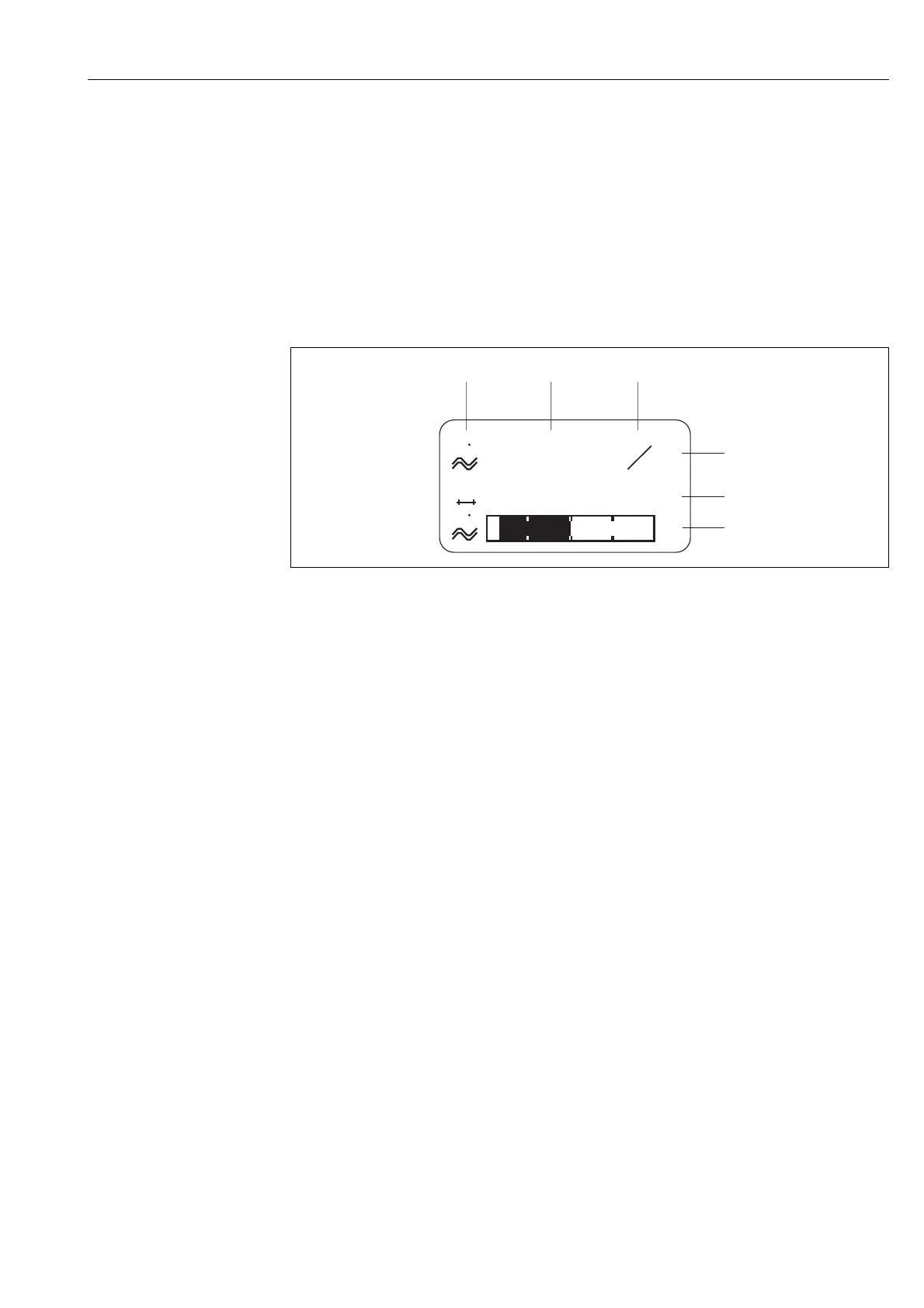

Fig. 39: Typical display for normal operating mode (HOME position)
1 Main line shows main measured values, e.g. flow
2 Supplementary line shows supplementary measured or status variables, e.g. totalizer reading.
3 Information line shows additional information on measured or status variables,
e.g. bar graph representation of the full scale value attained by the flow rate
4 "Info icons" field shows additional information in the form of icons on the measured values displayed. A complete
overview of all icons and their meaning can be found on ä 56
5 "Measured values" field shows the current measured values
6 "Engineering unit" field shows the engineering units and time units defined for the current measured values.
5.2.3 Additional display functions
Depending on the order option (F-CHIP ä 92), the local display has different display functions.
Device without batching software
From HOME position, use the OS keys to open an "Info Menu" containing the following
information:
Totalizer (including overflow)
Actual values or states of the configured inputs/outputs
Device TAG number (user-definable)
OS Scan of individual values within the Info Menu
X (Esc key) Back to HOME position
Device with batching software
On measuring instruments with installed batching software (F-Chip ä 92) and a suitably
configured display line, you can carry out filling processes directly using the local display.
You will find a detailed description on ä 57.
