Enterasys Matrix E1 1H582-51 User Manual

SNMP Traps Configuration Screen
3-6 WebView Local Management Tasks
3.5 SNMP TRAPS CONFIGURATION SCREEN
When to Use
To assign IP addresses where SNMP traps will be sent, to enable or disable traps, and to access the
SNMP Community Names screen, where SNMP community names and access policies associated
with these traps can be set.
How to Access
Click on SNMP on the WebView navigation frame. The SNMP Traps Configuration screen,
Figure 3-4, displays.
Screen Example

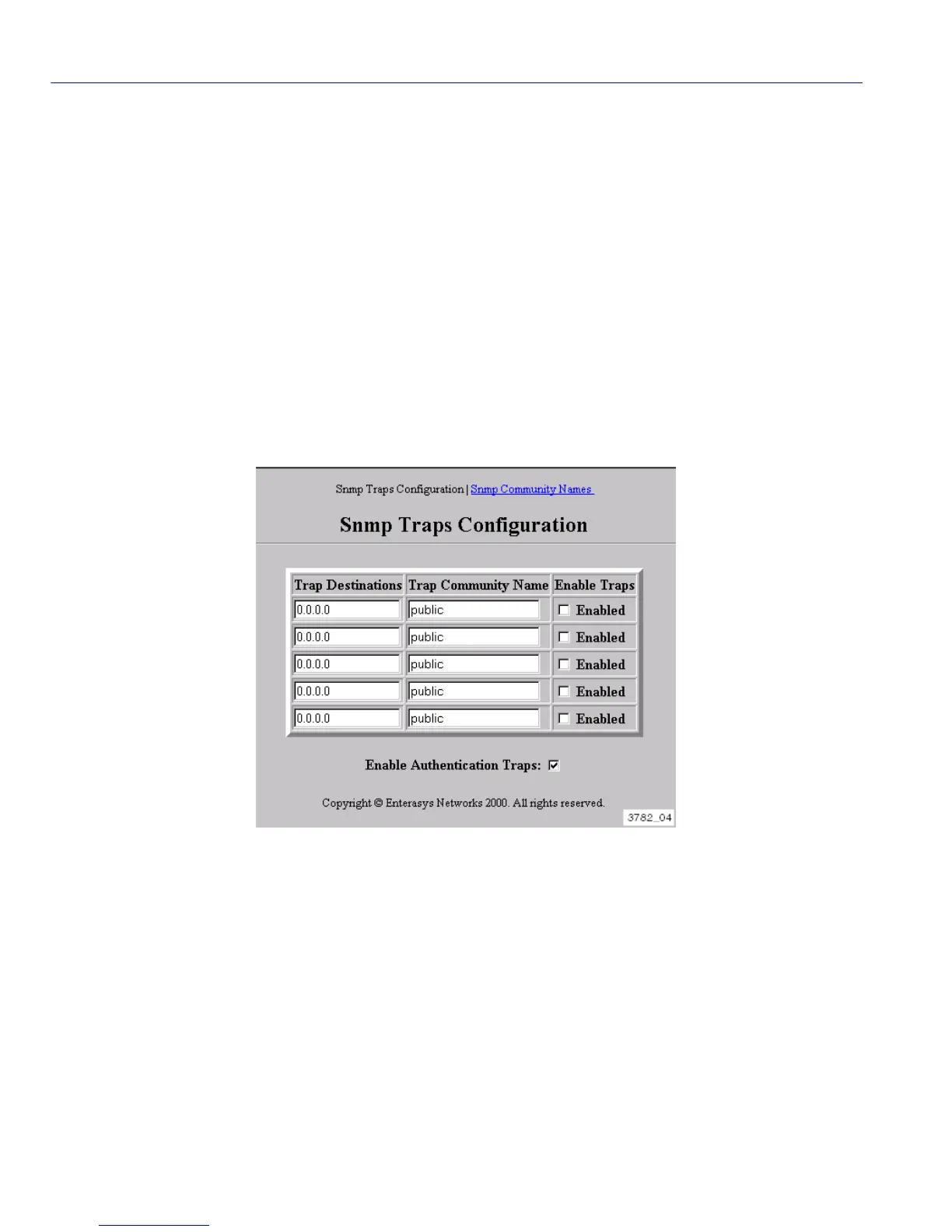

Figure 3-4 SNMP Traps Configuration Screen

Enterasys Matrix E1 1H582-51 Specifications

General

Brand	Enterasys
Model	Matrix E1 1H582-51
Category	Switch
Language	English
