VLAN Current Table Screen
3-36 WebView Local Management Tasks
3.20 VLAN CURRENT TABLE SCREEN
When to Use
To view information about all static and dynamically created VLANs known to the device, such as
which ports belong to a VLAN’s egress list and whether or not they are configured to transmit
untagged frames.
How to Access
Click on VLAN on the WebView navigation frame. The VLAN Basic Information screen,
Figure 3-18, displays. Click on VLAN Current Table on the content frame. The VLAN Current
Table screen, Table 3-19, displays.
Screen Example

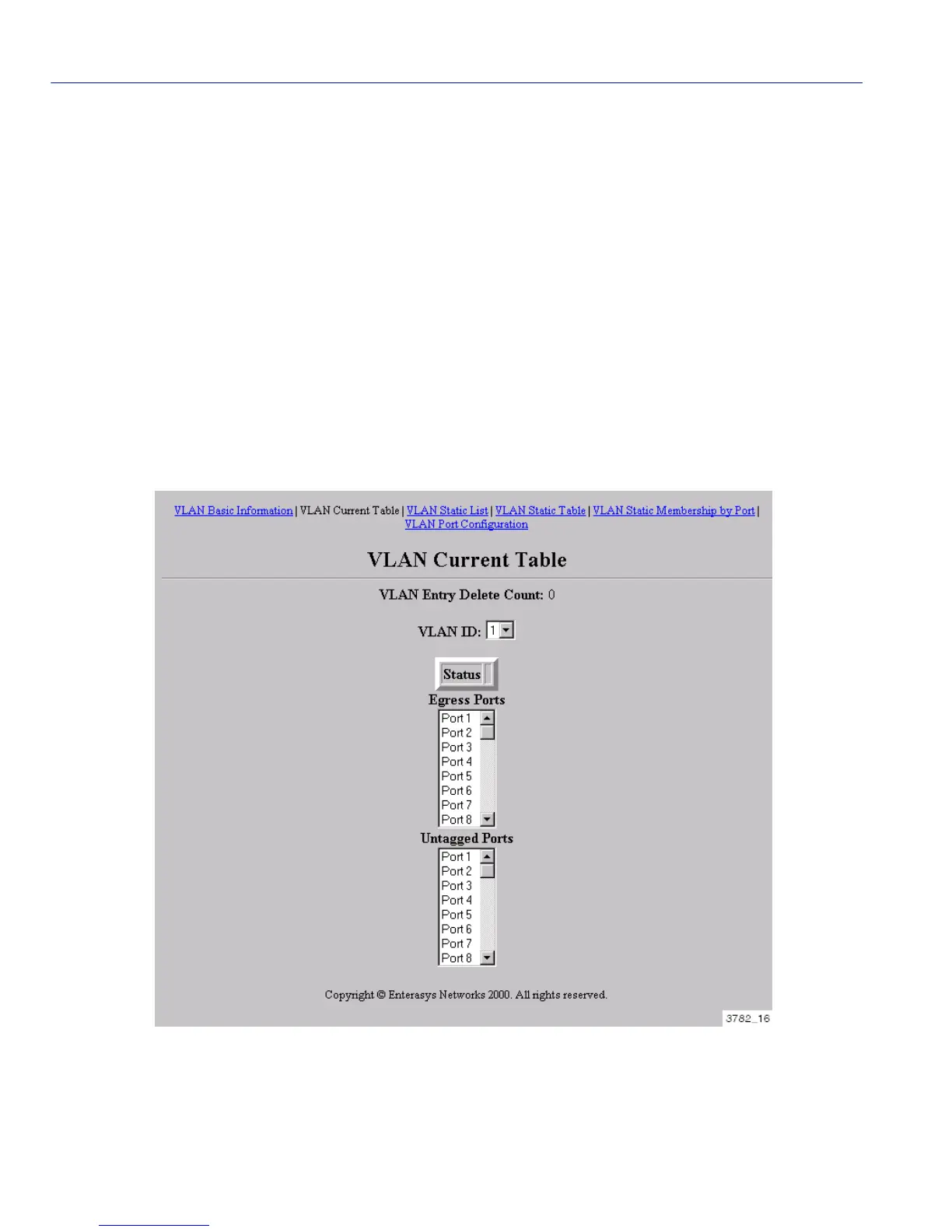

Figure 3-19 VLAN Current Table Screen
