STA Information Screen
3-14 WebView Local Management Tasks
3.10 STA INFORMATION SCREEN
When to Use
To view Spanning Tree Algorithm (STA) information about the device and about each port, and to
access the STA Global Config, STA MST General Configuration, STA Misc Port Config, STA
MST Instance Config, and the STA Spanguard Config screens.
How to Access
Click on STA on the WebView navigation frame. The STA Information screen, Figure 3-9,
displays. Spanning Tree information for the bridge device displays at the top (Spanning Tree)
portion of the screen. STA information about individual ports displays at the bottom (Ports)
portion of the screen.
Screen Example

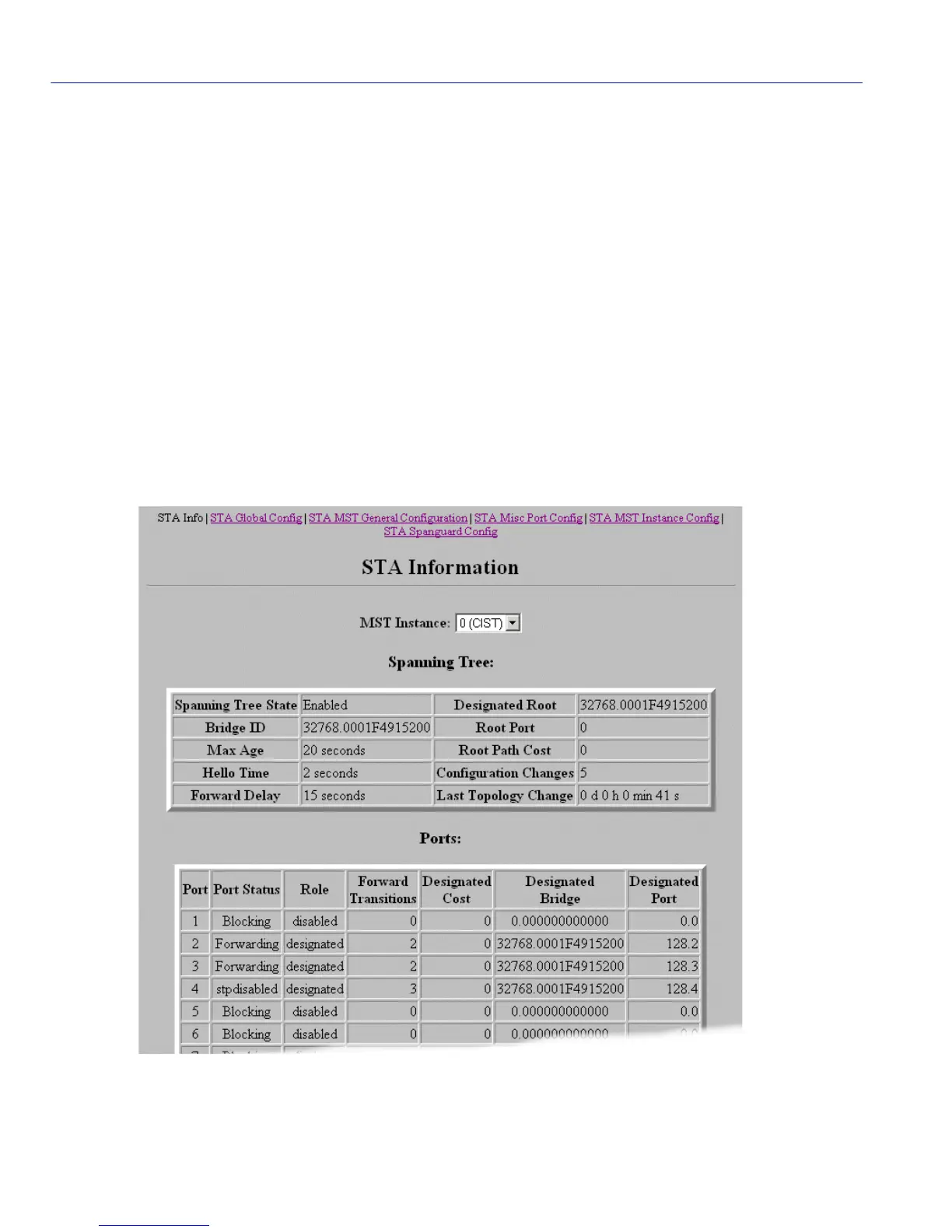

Figure 3-9 STA Information Screen
