Bridge Extension Configuration Screen
WebView Local Management Tasks 3-29
3.16 BRIDGE EXTENSION CONFIGURATION SCREEN
When to Use
To view bridge MIB extension capabilities configured on the device, and to set the host VLAN ID.
How to Access
Click on Bridge Extension on the WebView navigation frame. The Bridge Extension
Configuration screen, Figure 3-15, displays.
Screen Example

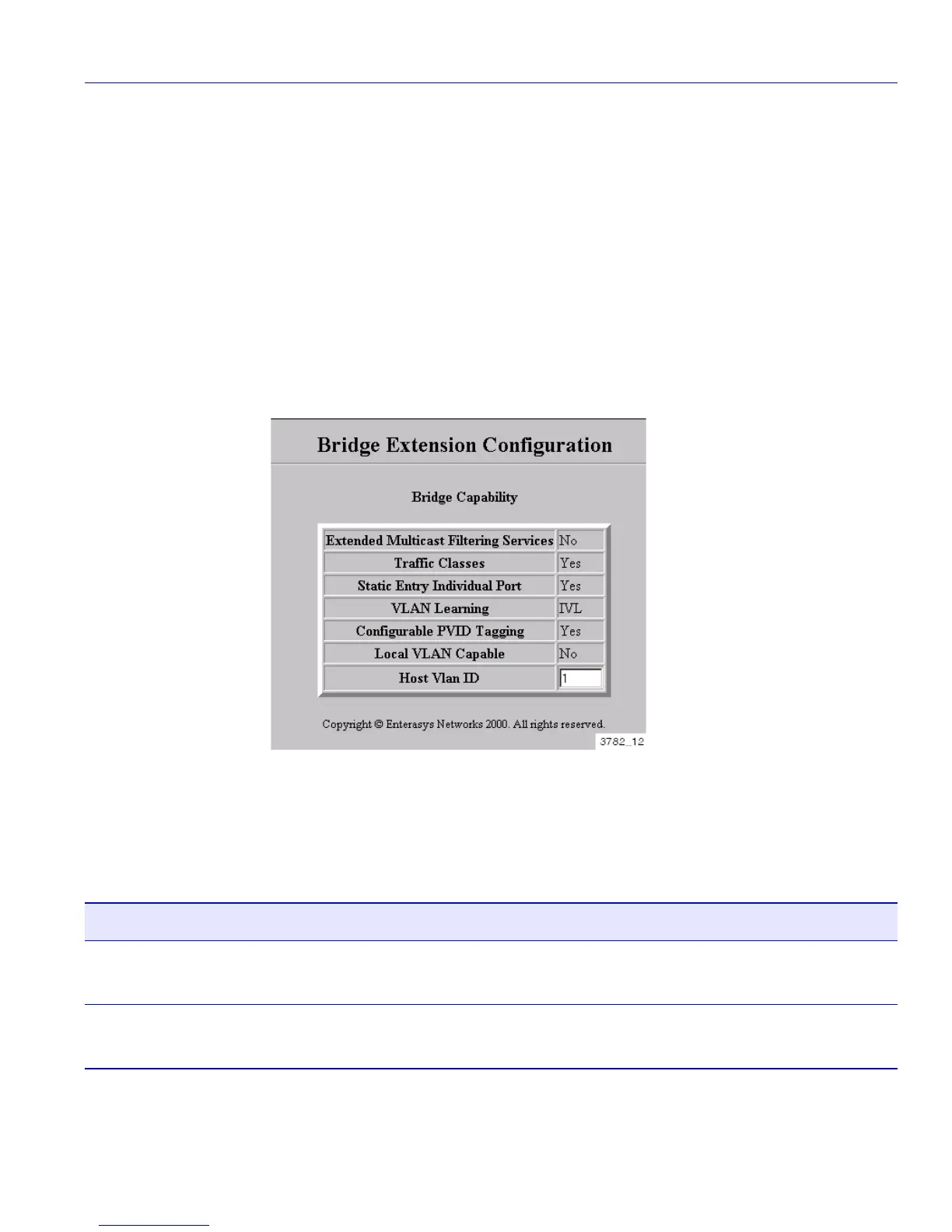

Figure 3-15 Bridge Extension Configuration Screen
Screen Element Descriptions
Refer to Table 3-15 for a functional description of each screen element.
Table 3-15 Bridge Extension Configuration Screen Element Descriptions
Use this field… To…
Extended Multicast
Filtering Services
See if filtering of individual multicast addresses is active.
Traffic Classes See if the mapping of user priorities to multiple traffic classes function
is active.
