Epson G20 Series

Maintenance 4. Cable
124 G10 / G20 Rev.20

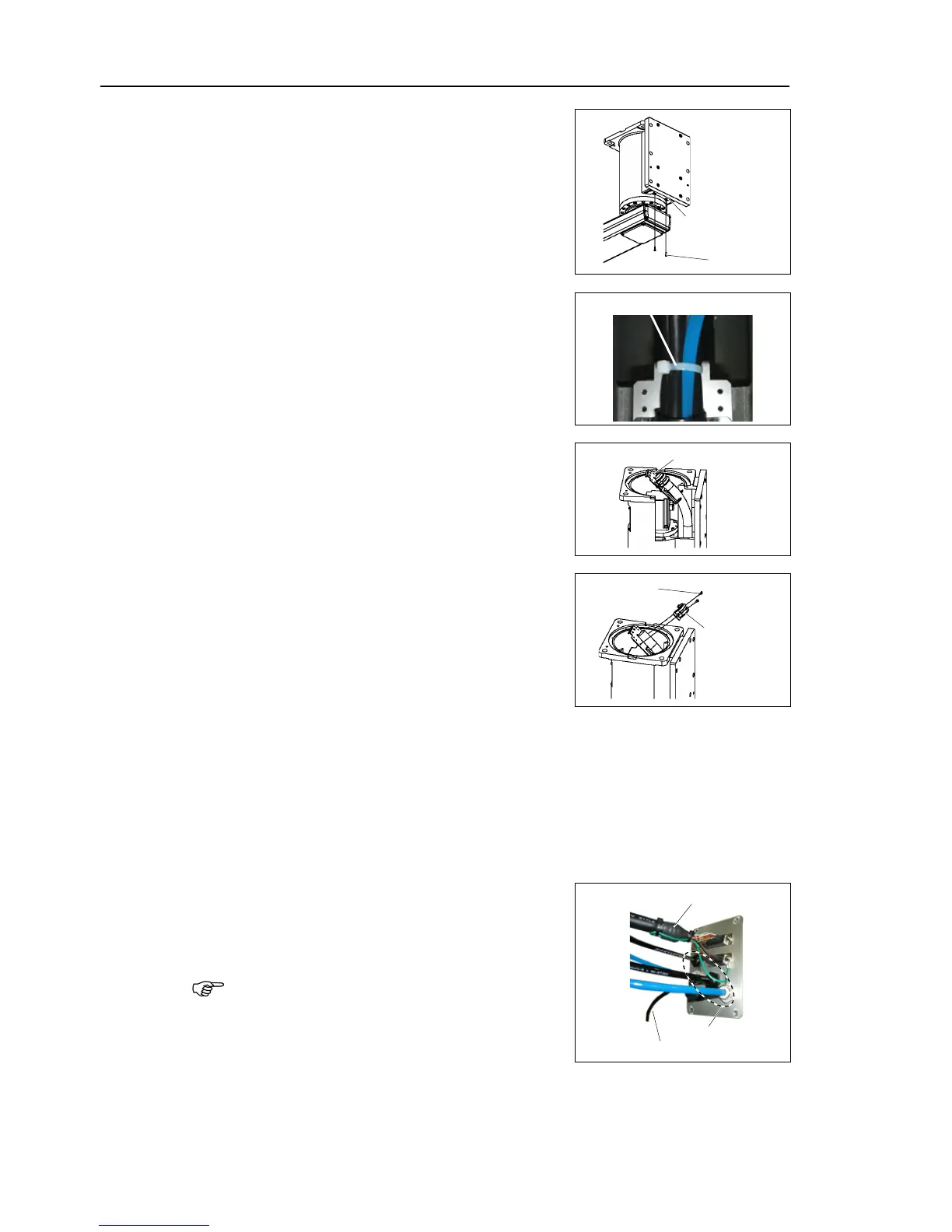

(7)-2 Remove the spring plate.
2-M4×15
Spring plate
(7)-3 Cut the wire tie banding the cables.
Wire tie
(7)-4 Pull out the spring plate.
Spring plate
(7)-5 Remove the saddle
part mounting the
cables.
2-M4×10
Saddle part
(7)-6 Cut the wire tie banding the spring.
(8
)
Remove the arm caps and side covers on Arm #1.
For details, refer to Maintenance: 3.3 Arm #1 Cover.
(9
)
Remove the arm top cover.
For details, refer to Maintenance: 3.1 Arm Top Cover.
(1
0)
Remove the user plate.
For details of user plate removal, refer to
Maintenance 3.6 User Plate.
(11
)
Disconnect the D
-sub cable, air tubes, and
connector of the brake release switch from the
user plate.
Mounting screws for the D
-sub cable are very
small. Be sure to keep the screws.
Press the ring on the fitting and pull out the air
tube. (
ø6×2, ø4×2)
Be sure to
observe the connection for connecting
the disconnected parts
after replacement.
D-sub cable
Air tube
Brake release switch cable

NOTE
