Epson G20 Series

Maintenance 4. Cable
126 G10 / G20 Rev.20

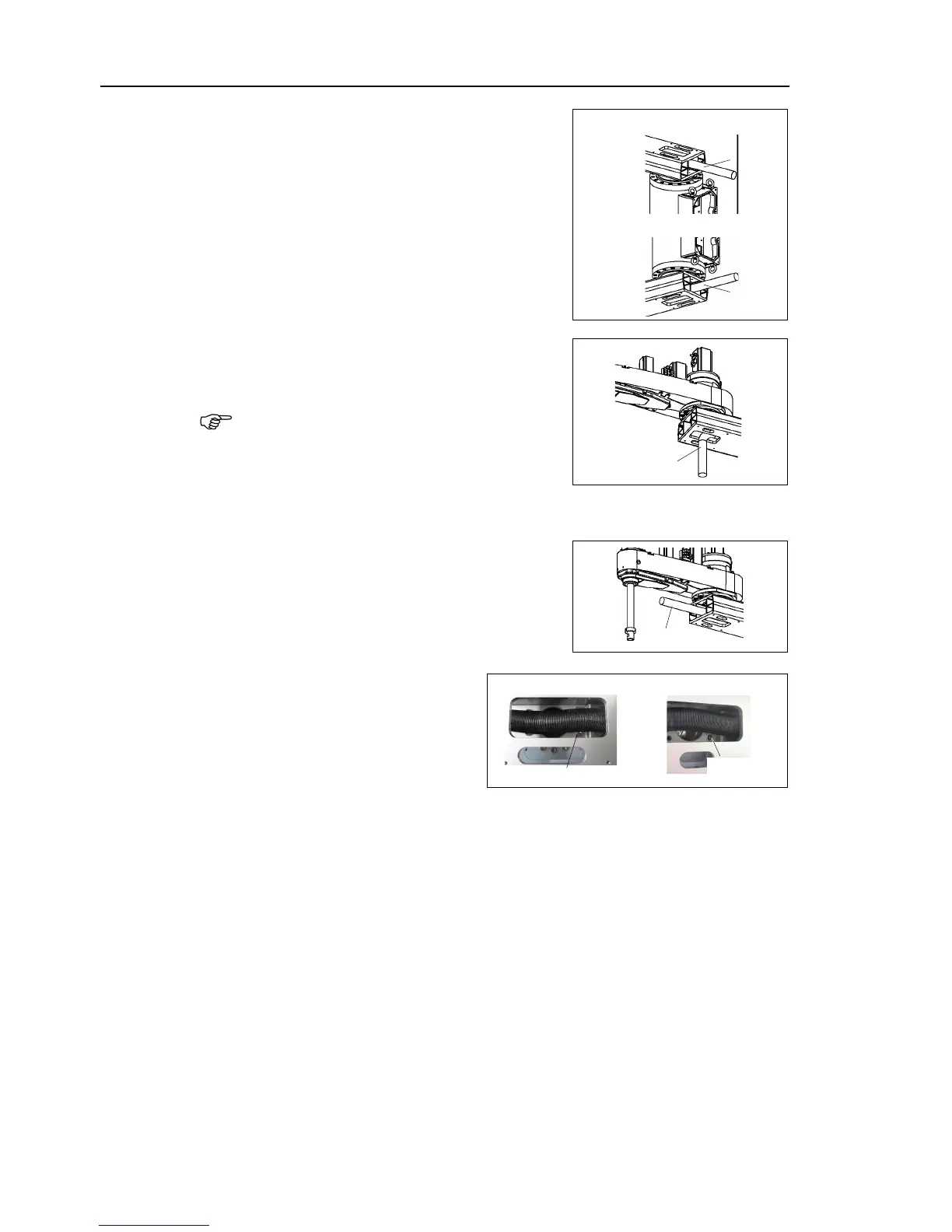

(19
)
D
isconnect the cables that were disconnected
from Arm #1 in step (18) to the side of Arm #1.
Cable
Table Top mounting
Wall / Ceiling mounting
Cable
(20
)
D
isconnect the Arm #2 side cables from the
lower
part of Arm #1.
When
disconnecting the cables, first, disconnect
the air tubes. Then,
disconnect from the
smaller connectors in order.
Do not try to
disconnect the cables forcibly.
Otherwise, connectors may be stuck,
disconnected, or connector pins may fall off.
Cable
(21
)
D
isconnect the cables that were disconnected to
the lower part of Arm #1 in step (2
0) to the side
of Arm #1.
Cable
(22
)
Remove the
spring plate mounting
bolts on
both the Arm #1 side and
the Arm #2 side
.
Arm #1 side
2-M6×30
Arm #2 side
2-M5×18
+ washer
(23)
Disconnect the cables to the base side.

NOTE
