Epson G20 Series

Maintenance 4. Cable
G10 / G20 Rev.20 127

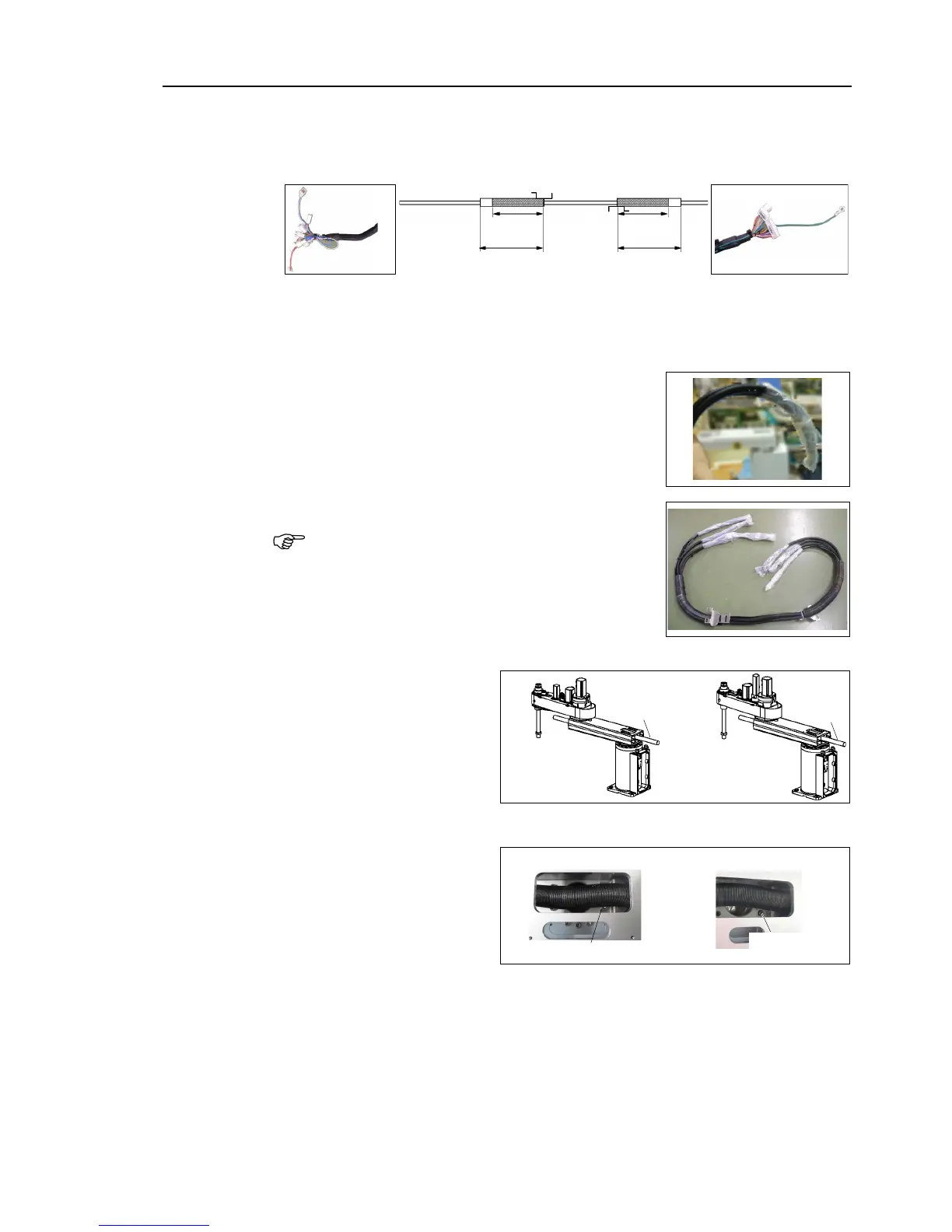

Cable unit
Installation
(1)
Apply grease
(GPL-224) to the cables.
Grease volume:
5 g each (10 g in total)
Applying positions
Each cable inside the spring
Air tube
Periphery of spring (shaded part)
200 mm
Greasing
Spring
200 mm
Greasing
Spring
Arm side
Base side
Connector
X221,231,241
X21,22,31,32,33
X41,42
X61
Connector
X121,131
X20,30
XB10
(2)
Cover both ends of the cables with plastic bags.
(The photo shows one end covered with plastic bags)
The plastic bags prevent grease adhesion to the ends of
connectors and air tubes while drawing the cables.
(3)
Refer to step (1) and insert the cables to Arm #1 in the
proper direction.
Cable
G10
Cable
G20
(4)
Set the mounting holes of the spring plate to the base side and mount the spring
plate to Arm #1.
Arm #1 side
2-M6×30
Arm #2 side
2-M5×18
+ washer

NOTE
