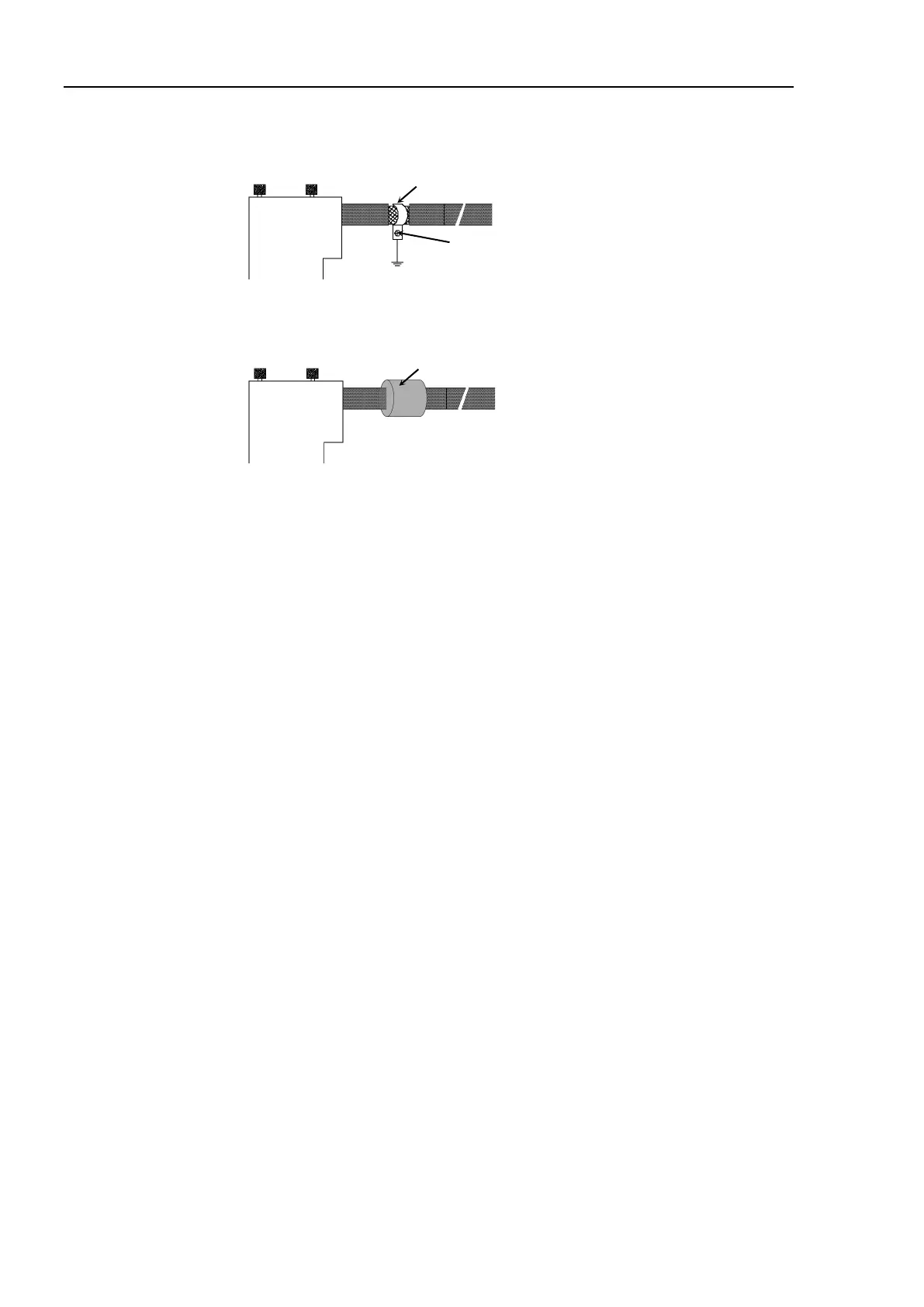

- Perform following EMC countermeasure for the Fieldbus I/O cable as necessary.
- Put together the cable shield side.
Remove the outer cover and fix
with the FG clamp.
Secure the clamps to the
Controller with screws to
ground the shield.
- Mount Ferrite core to the cable.
Ferrite core
