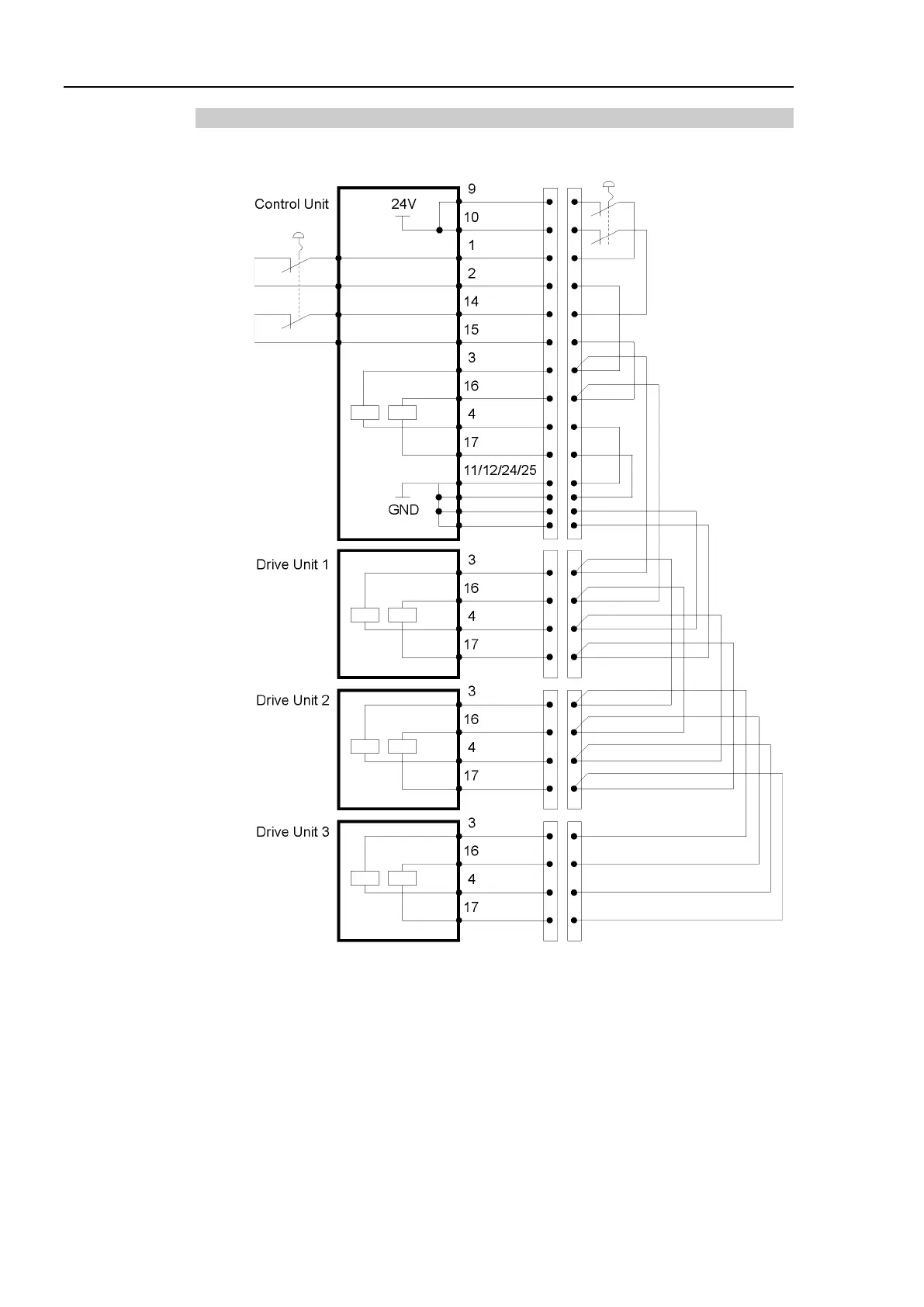

Wiring Example for Emergency Stop
Example 1 External emergency stop switch typical application
Emergency stop switch
Terminal block
Emergency
Stop switch of
an Operation
Unit (TP)
The Emergency cable, Emergency cable kit, and Terminal block are offered as options.
Design the cables connecting the units within 20 m long.

NOTE

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
