Epson RC700 Series Original Instructions

Installation 2. Installation
46 RC700 Series Rev.3

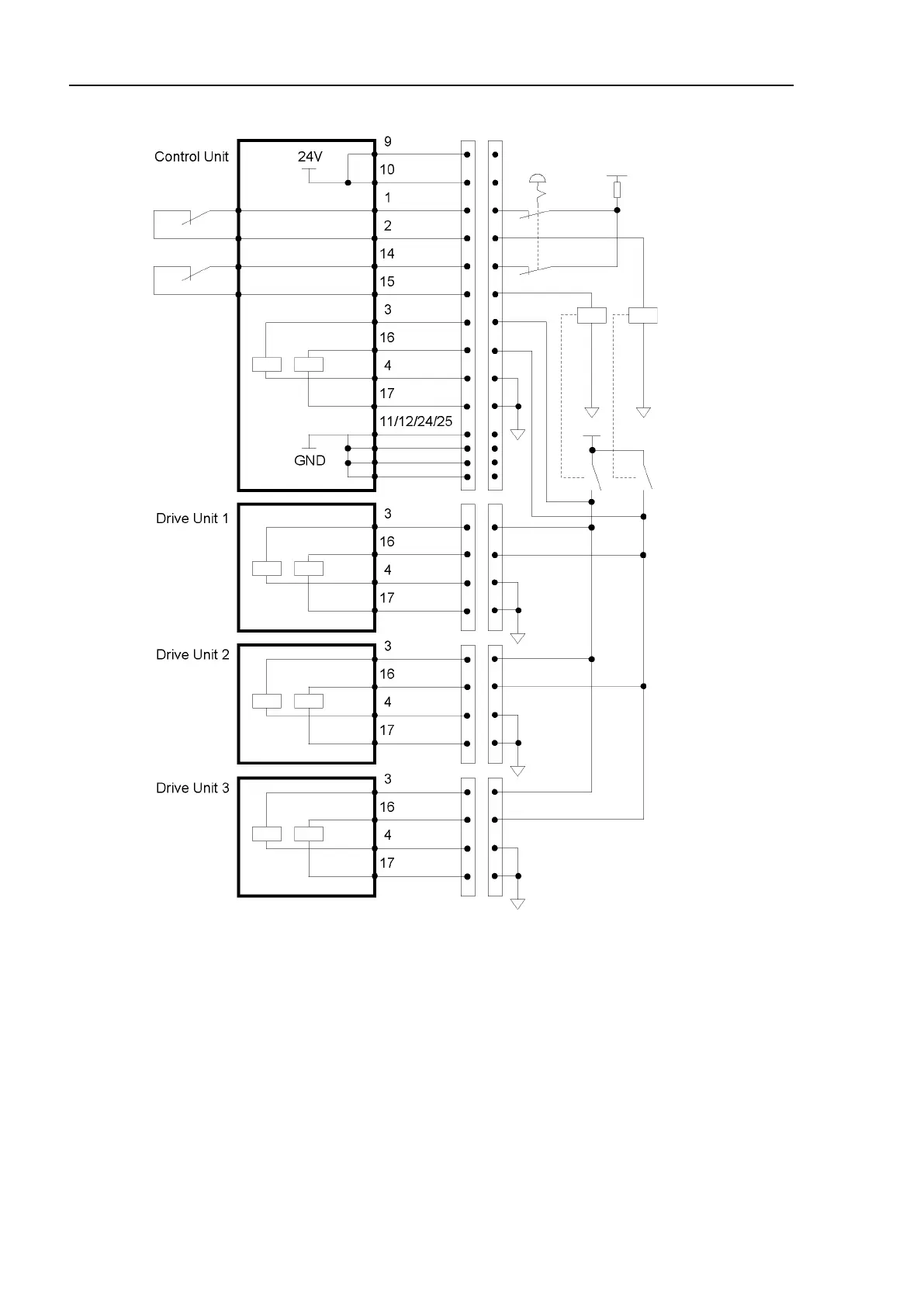

Example 2: External safety relay typical application
Emergency
stop switch
Fuse *
External
+24V
GND
External
+24V
GND
External
+24V
GND
External
+24V
Terminal block
External +24V
External
Safety relay
External
+24V
GND
* Fuse
For the protection of the emergency stop circuit, the fuse’s capacity should be as follows:
- Meets the capacity of the external
- 0.4A or less

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
