Epson RC700 Series Original Instructions

Installation 2. Installation
RC700 Series Rev.3 47

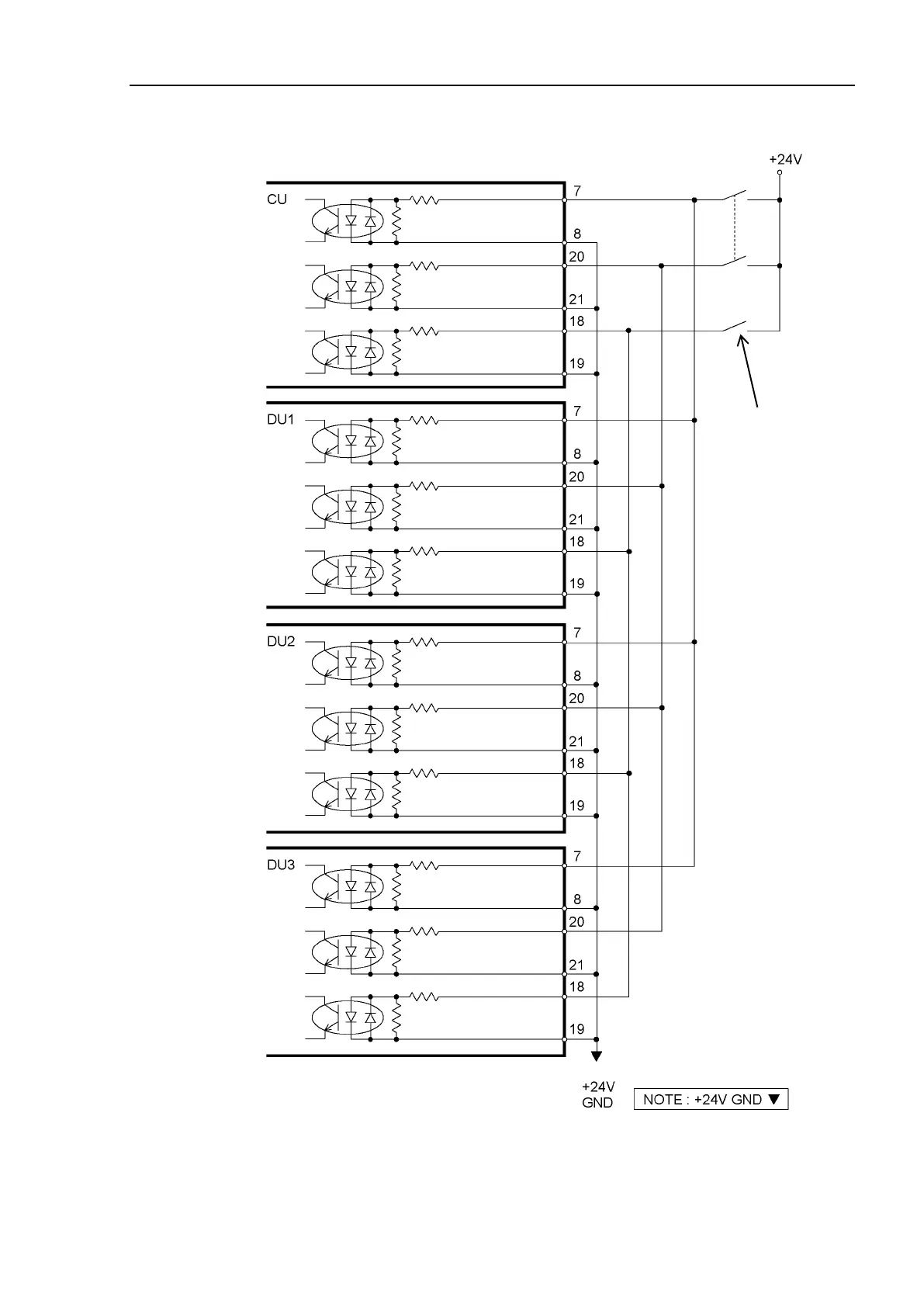

Wiring Example for Safety Door Input / Latch Release Input
External
Latch release input
Close :Latch off
Open :Latch on
Exter
nal
Safety Door input 1
Latch release input
Safety Door input 2
Safety Door input 1
Safety Door input 2
Latch release input
Latch release input
Safety Door input 2
Safety Door input 1
Safety Door input 1
Safety Door input 2
Latch release input
Design the cables connecting the units within 20 m long.

NOTE

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
