26. Hook the thermal L, R springs to the thermal frame. Check the direction of insertion of the
D-cut groove and attach the thermal L, R springs on thermal holder assembly.

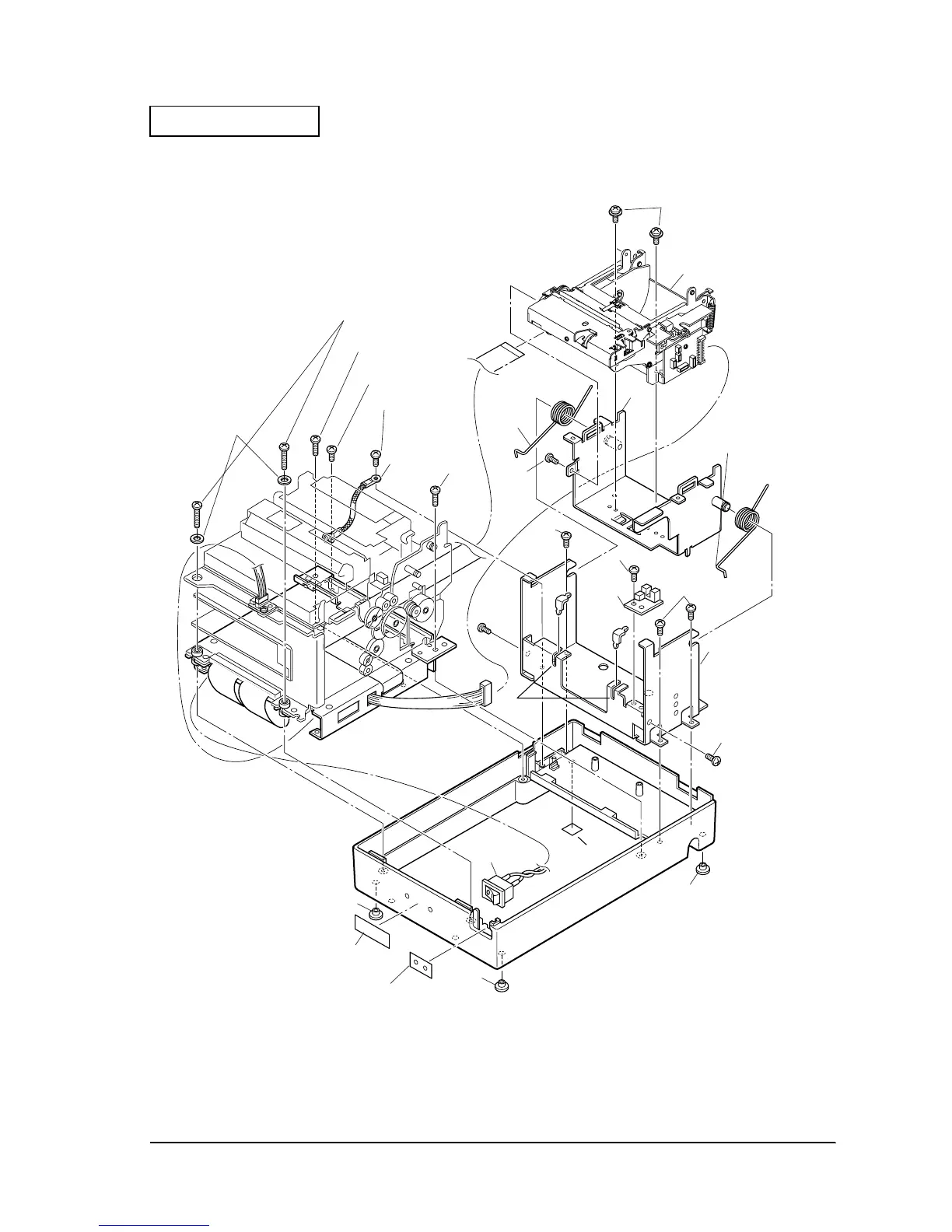

Figure 2-28
105
screw(C.C.S-tite,3X6)
500
Thermal mechanism
assembly (M-H6000)
125
Thermal holder assembly
108
screw
(C.B.B-tite,4X12)
108
screw(C.B.B-tite,4X12)
109
screw(C.B.B-tite,4X25)
106
screw(C.B.S-tite F,3X6)
103
screw(C.P.T-B,3X10)
203
Earth wire
assembly
127
Thermal frame
106
screw
(C.B.S-tite F,3X6)
141
Front seal
207
Power switch
cable assembly
117
Rubber foot
117
Rubber foot
115
Caution seal
131
Left thermal spring
103
screw
(C.P.T-B,3X10)
103 screw
(C.P.T-B,3X10)
105
screw
(C.C.S-tite,3X6)
132
Right thermal
spring
112
Plain washer
(4.2X1X12)
106
screw
(C.B.S-tite F,3X6)
204
Thermal unit
sensor
circuit
board
assembly
130
Thermal cushion
117
Rubber foot
145
Power switch cover
