NOTE: Paper must not be pasted to the paper roll spool.
When paper other than that specified is used, the thermal print head may be worn out.Be sure to use the
specified paper.

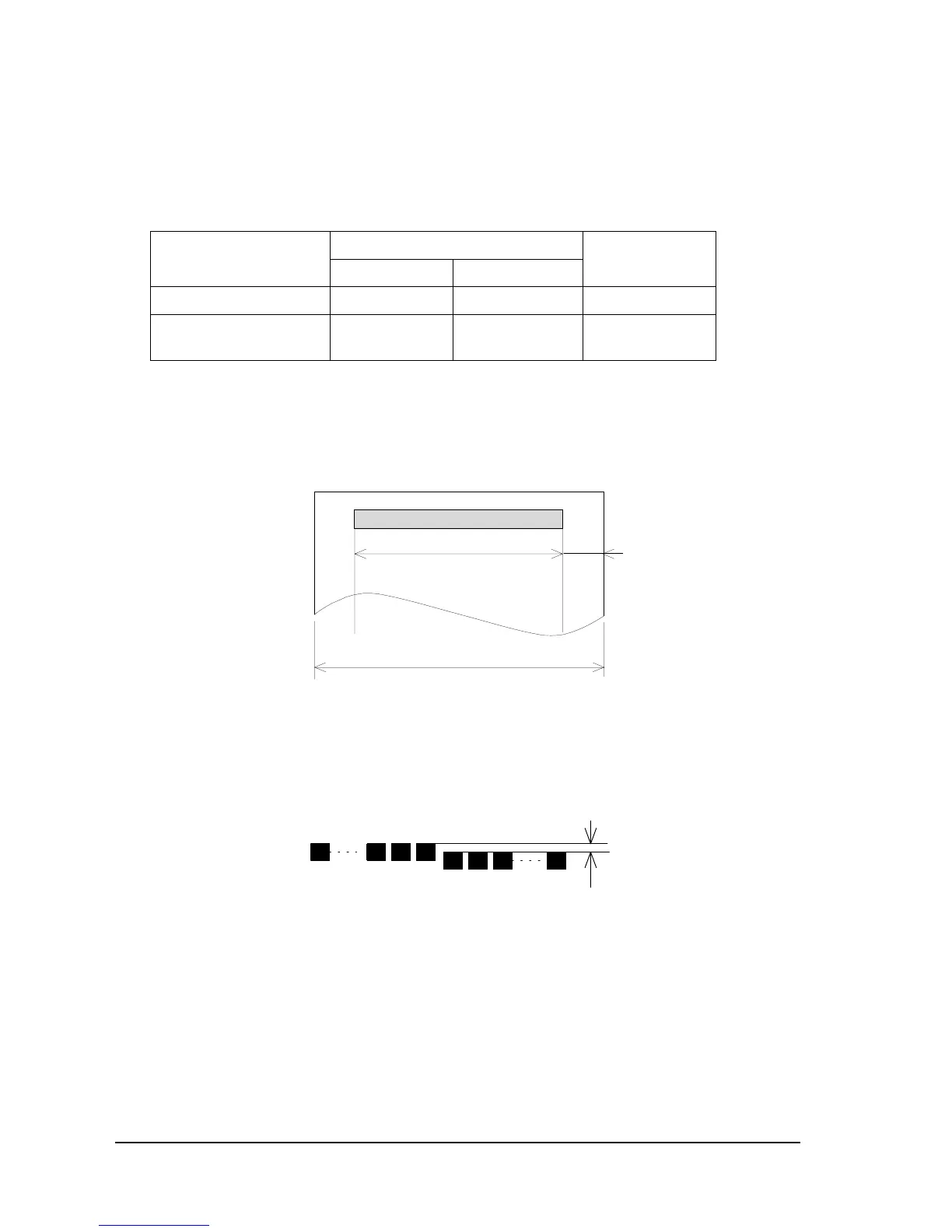

Depending on each paper specification, it is recommended to set the DIP switch as shown in Table below:
1.4.4.4 Printable Area
The printable area of a paper roll with a width of 79.5 ± 0.5 mm (3.13" ± 0.02") is 72.2 ± 0.2 mm
(2.84"
± 0.008") (512 dots), and the space on the right and left sides are approximately 3.7 ±
2mm (0.15" ± 0.079").
Printable area for paper roll
NOTE: The print position in the printable area of thermal elements for dots 257 to 512 is shifted approximately
0.07 mm {.003”} in the paper feed direction from the position for dots 1 to 256. Be sure not to print a ladder bar
code across both printable areas, as this can cause variations in printing that are difficult to read.
Shifting of the print position
Original paper type DIP SW2 Print
density level
34
P350 (F380) ON ON 1
PD160R, AF50KS-E,
P310, P300
OFF OFF 2 (default)
