Epson TM-H6000III Technical Reference Guide

Rev. C Setup 3-11
TM-H6000III Technical Reference Guide

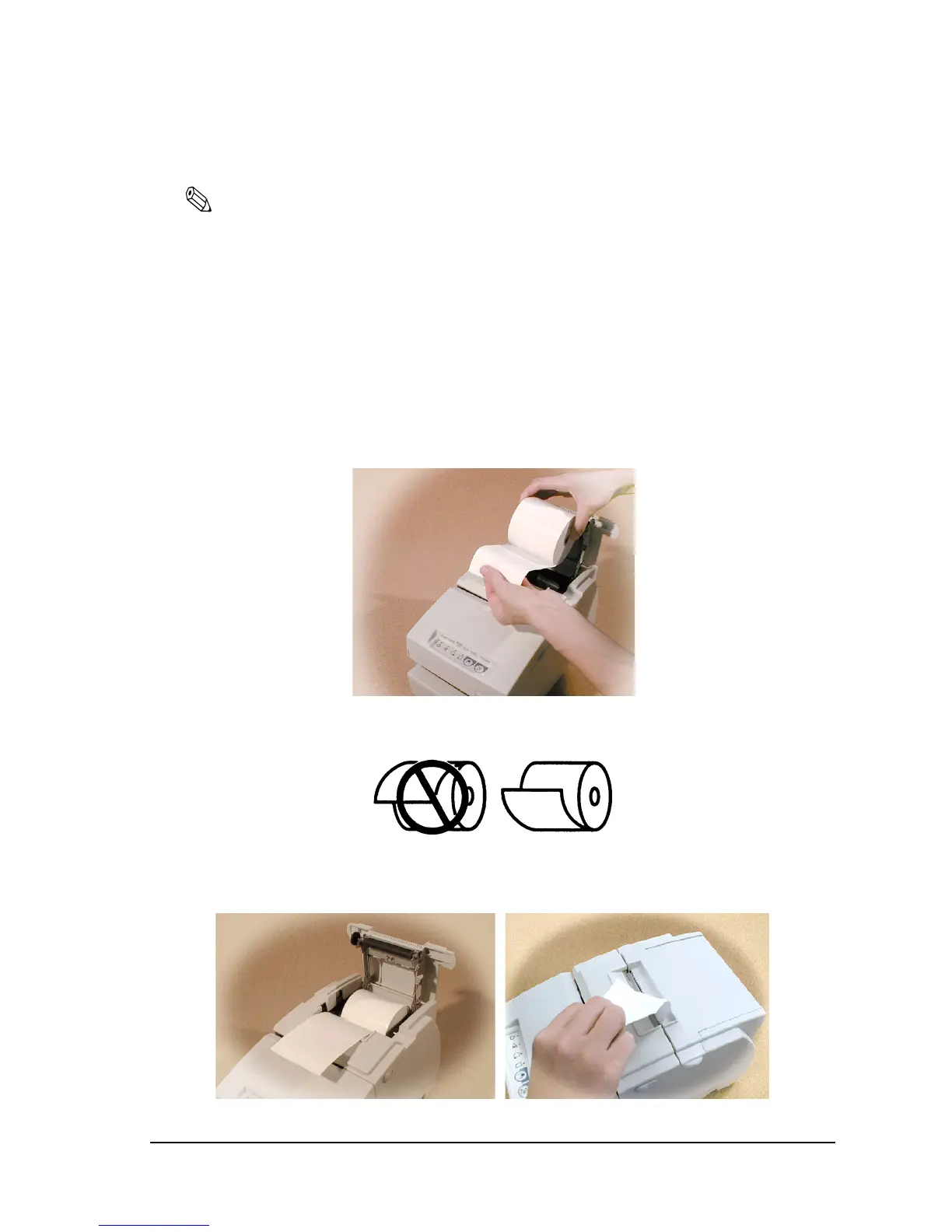

3.3.4 Installing or Replacing the Paper Roll
Note:
Do not use paper rolls that have the paper glued or taped to the core because they might cause a paper jam.
To prevent paper jams, make sure that nothing obstructs paper coming out of the paper exit, and do not
pull the paper out of the printer.
1. To prevent data loss make sure that the printer is not receiving data.
2. Open the paper roll cover by lifting up the two tabs on the paper roll cover and then pushing
the cover back.
3. Remove the used paper roll core if there is one.
4. Insert the paper roll as shown.
5. Be sure to note the correct direction that the paper should come off the roll.
6. Pull out a small amount of paper, as shown. Then close the cover and tear off the extra paper
by pulling it toward the front of the printer.

Epson TM-H6000III Specifications

General

Dimensions (WxDxH)	186 x 298 x 185 mm
USB port	Yes
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Connectivity technology	Wired
Type	POS printer
Print speed	63 lps
Character size	0.99 x 2.4 mm
Print technology	Dot matrix
Safety	UL, CSA, TÜV
Certification	VCC1, FCC, CE
Country of origin	China
Autocutter durability	1.5 million cuts
Mean time between failures (MTBF)	360000 h
Product color	Black
Maximum roll diameter	83 mm
Supported paper width	80 mm
Printing media thickness	60 - 90 µm
Ethernet LAN	No
Input current	1.8 A
Power supply type	DC
Pallet width	800 mm
Pallet height	1675 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	40 pc(s)
Quantity per pallet (UK)	50 pc(s)
Quantity per pallet layer	8 pc(s)
Quantity per pallet layer (UK)	10 pc(s)
Package depth	382 mm
Package width	285 mm
Package height	305 mm
Package weight	6600 g
Quantity per pack	1 pc(s)
