Epson TM-H6000III

2-12 System Planning Rev. C

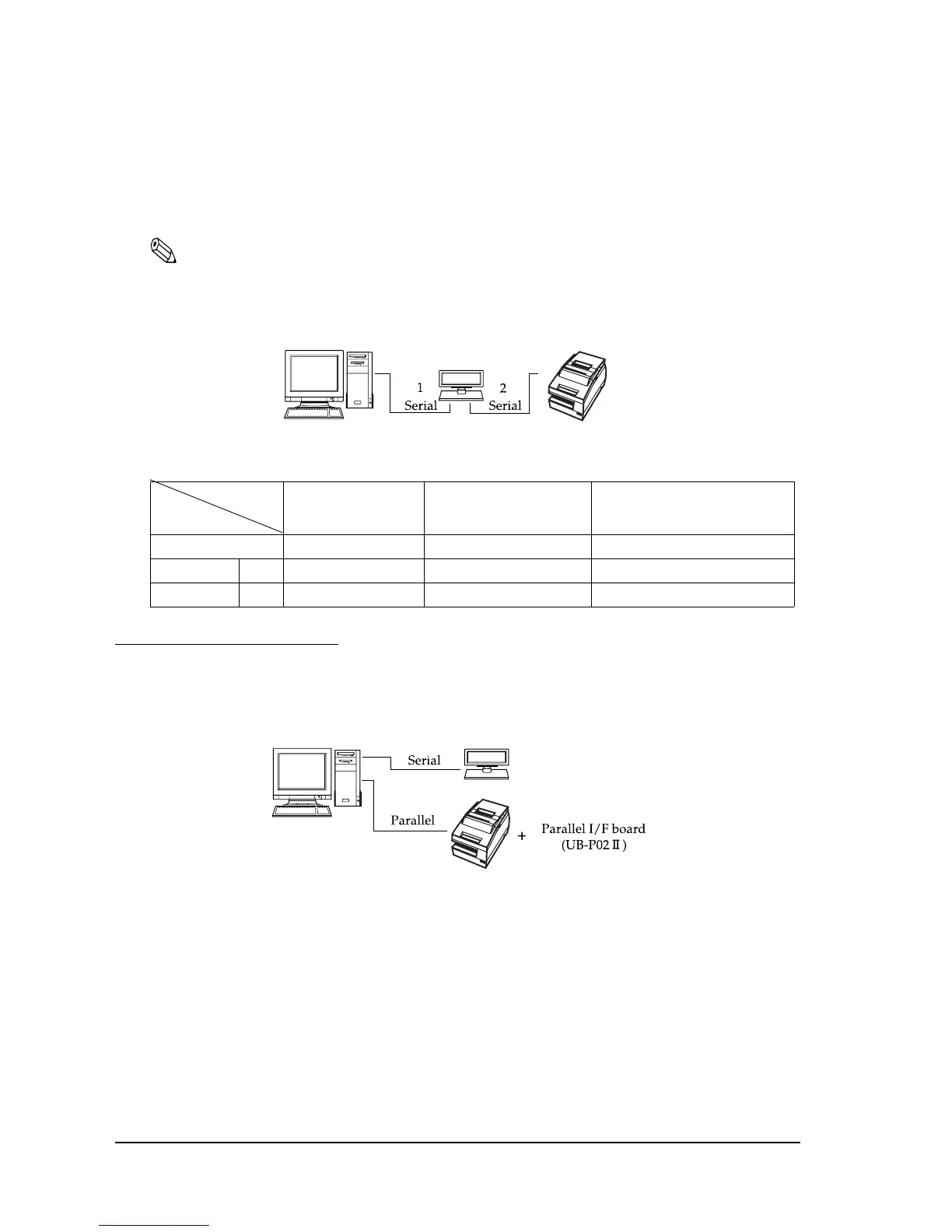

2.3.3 Pass-Through Connections
The TM printer is connected to the customer display (DM-D) via a serial port, and the DM-D is
connected to the host PC via a serial port.
Note:
On a DM-D (DM-D500 etc...) device that has a DIP switch to select the Y-type connection, confirm that
the DIP switch has been set to “Y-type connection: Disable.” For details of the DIP switch, see the User’s
Manual packed with your customer display.
2.4 Parallel Connection
The TM printer is connected to the host PC via a parallel interface board (UB-P02II). The
customer display (DM-D) is connected to the host PC via a serial port.
Application
TM side control
control setting
XON/XOFF
(except OPOS)
DTR/DSR
(DOS, OPOS, Visual C)
RTS/CTS
(DOS, Windows driver, Visual C,
Visual Basic, MSComm)
XON/XOFF Not available — —
DTR/DSR 1 — Type A or B Type B
2 — Type A or B Type A or B
