ESAB 100i - Power Supply Replacement Parts - Rear Panel

100i / 200i / 300i / 400i
Manual PN: 0560956430 PARTS LISTS 105

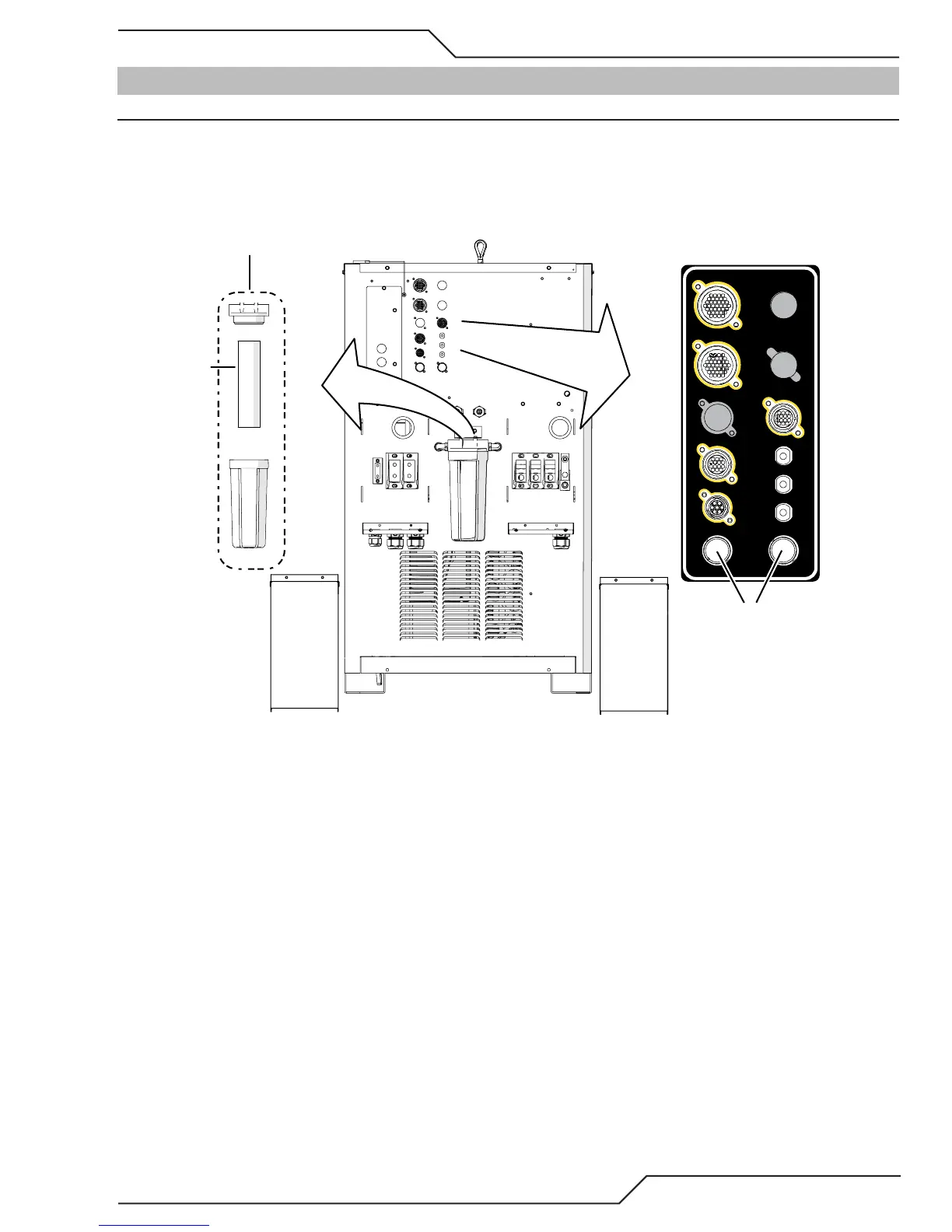

6.10 Power Supply Replacement Parts - Rear Panel
Item # Qty Description Breaker Rating Circuit Rating Ref. Des. Catalog #
1 1 Coolant Filter Assy 9-7320
2 1 Coolant Filter 9-7321
3 1 Fuse, 8A 500V - Time Delay (2 total) 9-7377
Art # A-11549_AC
1
2
3
USER INPUT
HEIGHT CONTROL
F1 - 8A SB 500 VAC F2 - 8A SB 500 VAC
CB4 - 5A 120 VAC
CB3 - 5A 24 VAC
CB2 - 5A 120 VAC
J55 - GCM
J15 - CNC
J59 - RAS
J70 - HE
J54 - TSC /COMM
