100i / 200i / 300i / 400i
66 INSTALLATION Manual PN: 0560956430
Under low power plasma cutting the External Cooler may not come on. This is normal operation.
Periodically check obstructions in the radiator and remove them by vacuuming the fins. Do not use cleaners or fluids to remove
debris, they may affect the radiator integrity.
3.23 Install Remote Arc Starter
Site Location
Select a clean, dry location with good ventilation and adequate working space around all components.
Review the safety precautions in the front of this manual to be sure that the location meets all safety requirements.
Interconnecting cables and hoses attach to the Arc Starter. There must be adequate space around the Arc Starter for these con-
nections without excessive kinking or bending.

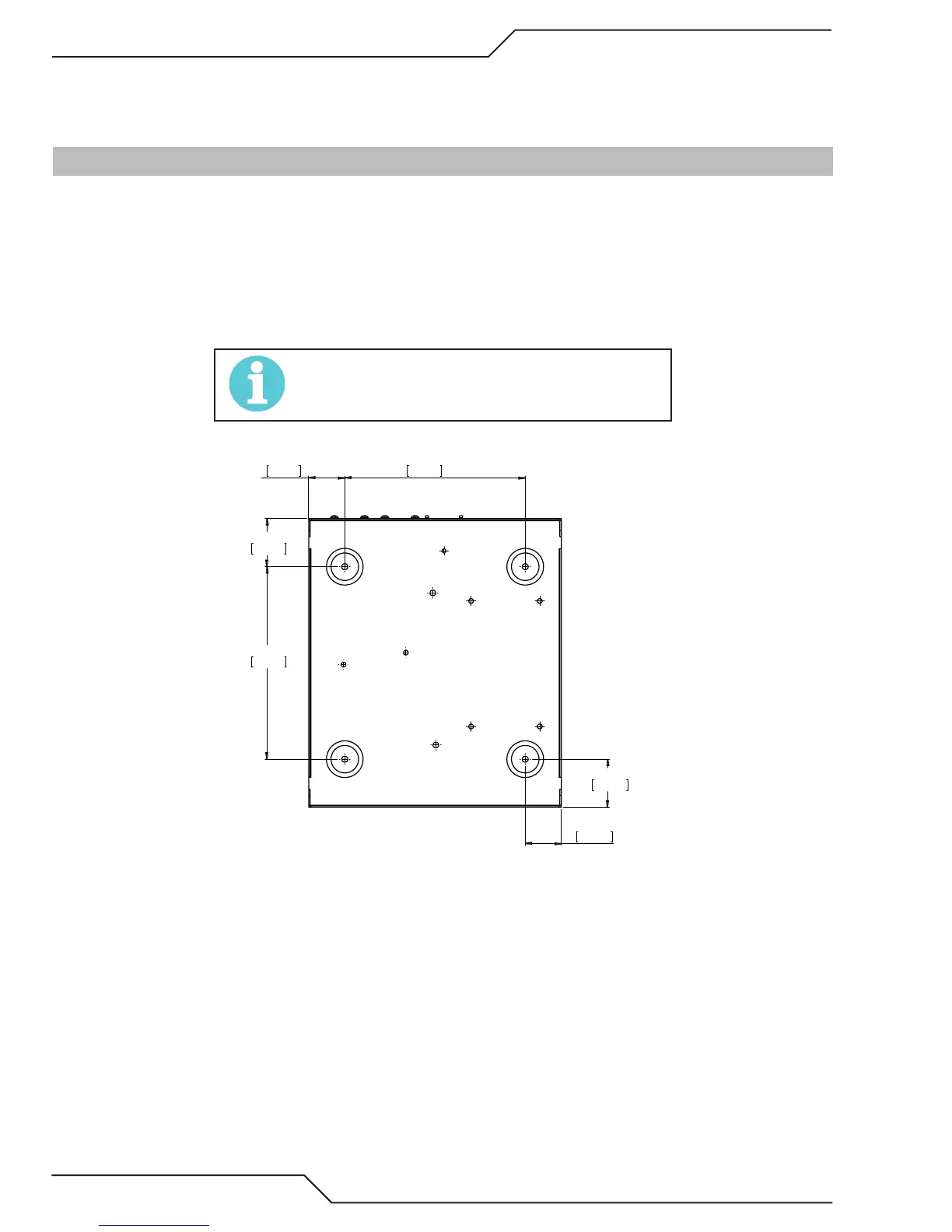

Mounting Dimensions
NOTE!
Height not shown is 7.375” ( 187mm )
38.10mm
1.50in
190.50mm
7.50in
50.80mm
2.00in
203.20mm
8.00in
50.80mm
2.00in
38.10mm
1.50in
Art # A-12058
