Manual 0560956430 223 TORCH DATA 100i-400i
Torch Replacement Parts
Description Catalog Number
Torch Head Assembly 0559211002
Coolant Check Valve Assembly 9-4846
Torch Clamp Assembly 9-9336
Torch Positioning Tube (includes hardware kit 9-4847) 9-4700
Positioning Tube Hardware Kit (O-Ring) 9-4847
Plasma & Shield Leads Assembly (to Torch Valve) 4-3026
Ohmic Clip (not shown) 9-9388
Positioning Tube
Torch Leads End Cap
Shield Gas
Coolant Supply,
Coolant Return,
and Pilot Leads
Leads Cover
To Torch Valve

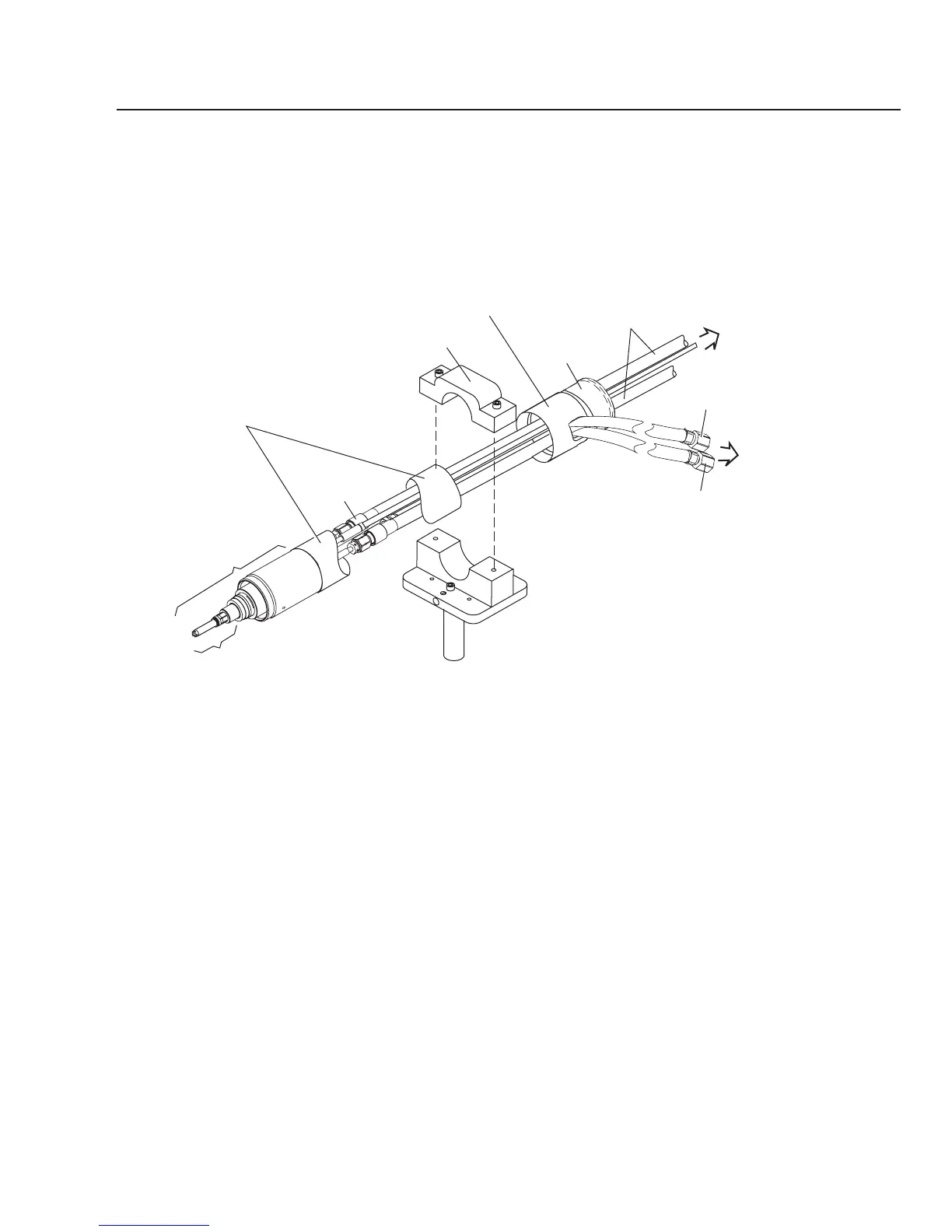

Art # A-07423_AB
Torch Head
To Remote Arc Starter
Torch Clamp
Plasma Gas
Coolant Tube Assembly
Coolant
Check Valve
8.11 PATENT INFORMATION
This product may be protected by one or more of the following U.S. Patent Nos.:
6852944; 6919526; 694616; 6989505; 6998566; 7005600; 7019254; 7071443; 7126080; 7132619; 7737383
