100i / 200i / 300i / 400i
112 TORCH INFORMATION Manual PN: 0560956430
7.02 O-Ring Lubrication

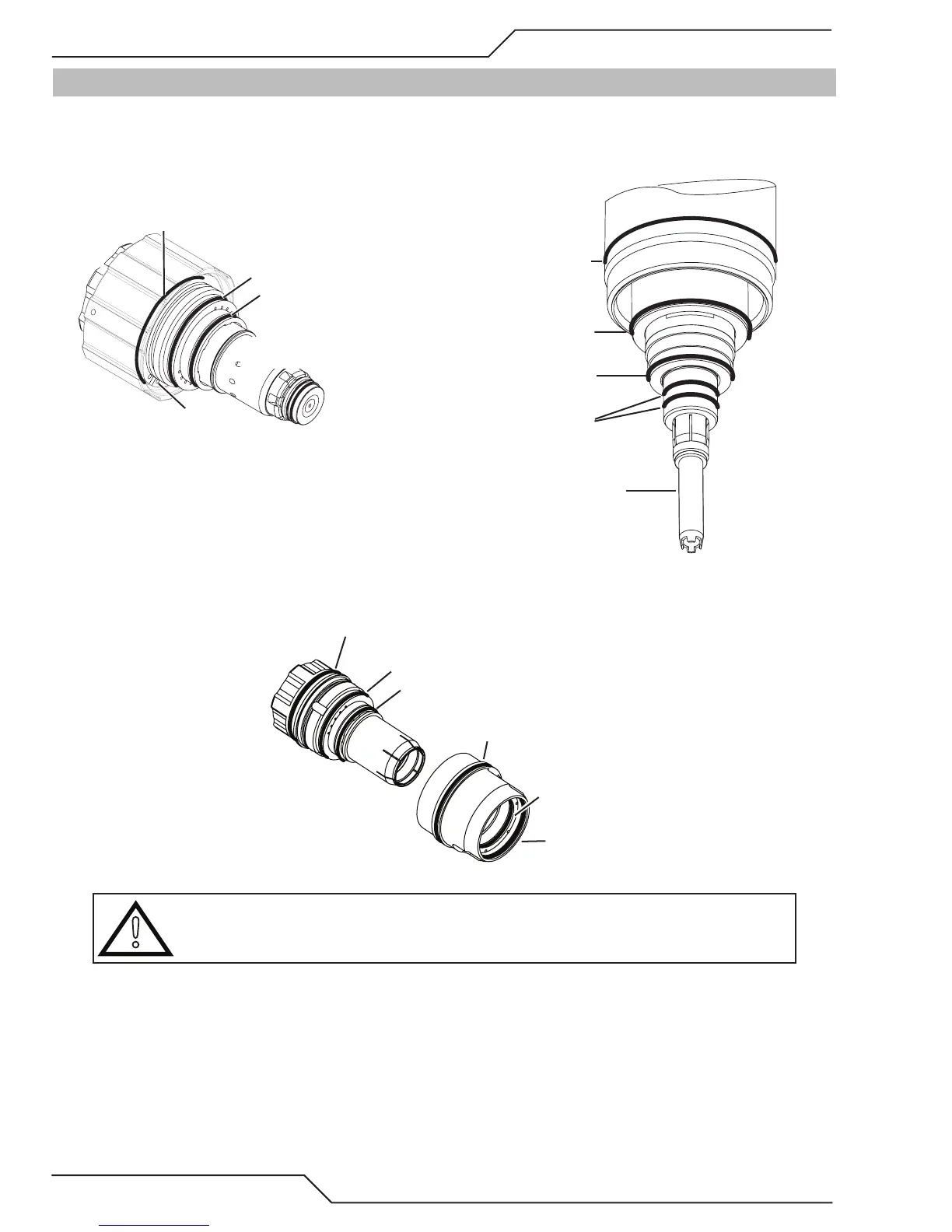

Lubricate all three O-Rings on the Cartridge Assembly and all three O-Rings on the Torch Head periodically with O-Ring
Lubricant supplied. Remove the snap ring on the cartridge assembly and slide the locking ring downward for access to the
O-Ring under the locking ring.
O-Ring, Cat. No. 9-3029
Inner O-Ring (Cat. No. 9-3030)
Location (Under Locking Ring)
O-Ring, Cat. No. 9-3028
Art # A-04071_AC
Snap Ring
Cartridge Assembly
Art # A-04066_AE
O-Rings
Cat. No. 8-0524
Cat. No. 9-3026
Cat. No. 9-3025
Torch Head
Cat. No. 9-9041
Cat. No. 9-9429
O-Ring, Cat. No. 9-3029
Inner O-Ring (Cat. No. 9-3030)
Location (Under Speed Lock Ring)
O-Ring, Cat. No. 9-3028
Art # A-09684_AD
O-Ring,
Cat. No.
9-3029
O-Ring,
Cat. No. 8-0561
O-Ring, Cat. No. 8-0547
Cartridge Assembly
Speed Lock Ring and
Threaded Ring
removed for clarity
Outer Cartridge
CAUTION
Use only Thermal Dynamics No. 9-4893 O-Ring Lubricant (Christo Lube MCG-129) with this
torch part. Use of other lubricants may cause irreparable damage to the torch.
