Manual 0560956430 217 TORCH DATA 100i-400i
8.09 TORCH PARTS LIST
Returns
If a product must be returned for service, contact your authorized distributor. Materials returned without proper
authorization will not be accepted.
Ordering Information
Order replacement parts by catalog number and complete description of the part or assembly. Also include the
model and serial number of the machine or torch.
Refer to parts diagrams within the body of the manual for consumable parts and replacement O-Ring catalog numbers.
Description Catalog Number
O-Ring Lubricant (Christo-Lube MCG-129) 9-4893
Torch Head and Cartridge O-Ring Kit 9-9488
Shield Cup (up to 150A) 0559211201
Shield Cup (200A - 300A ) 0559211301
Shield Cup (400A)
0559210143
Torch Cartridge (includes Cartridge Tool) (up to 150A)
0559211200
Torch Cartridge (includes Cartridge Tool) (200A - 300A)
0559211300
Torch Cartridge (400A Only) 0559211400
Cartridge Tool 9-9431
Cartridge Retaining Ring 9-9489

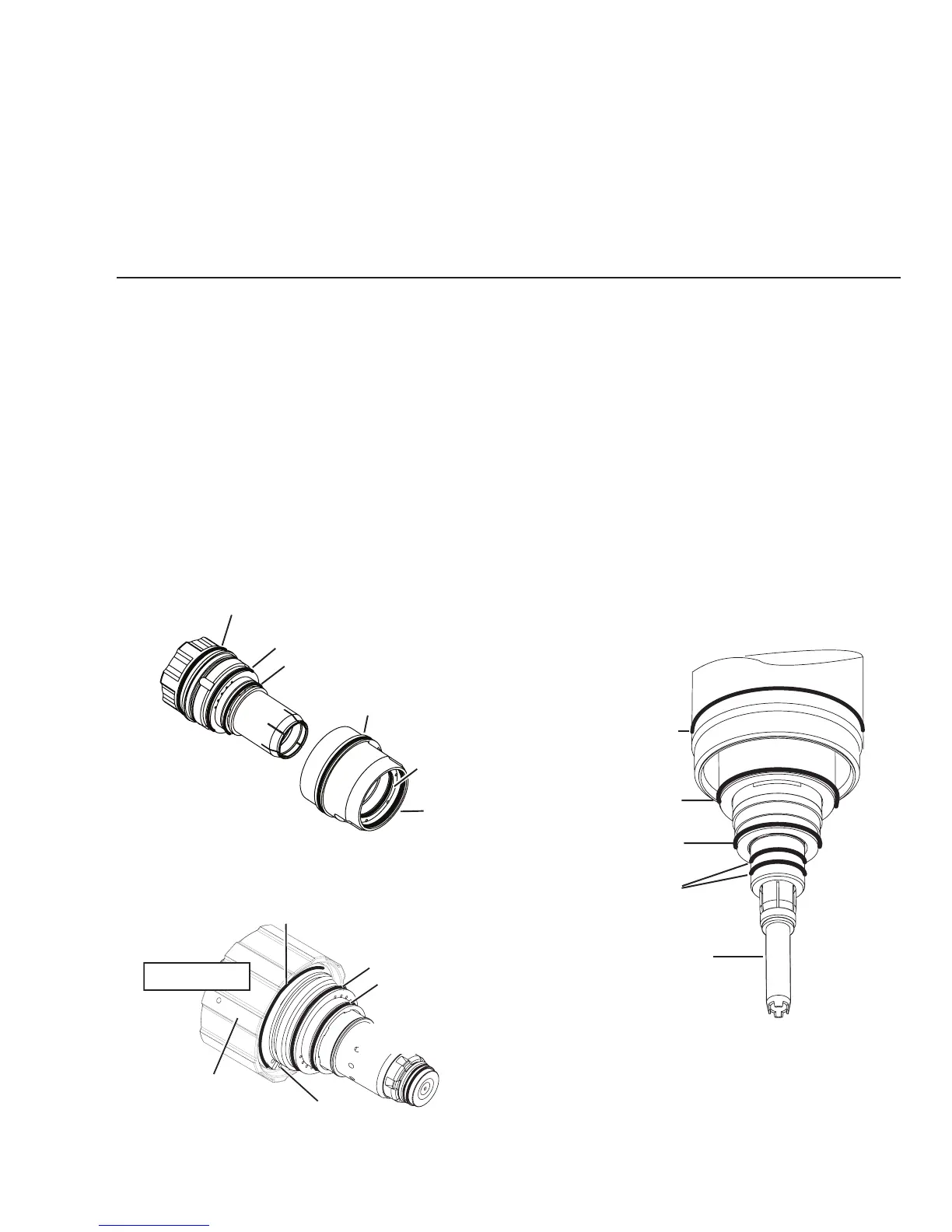

Art # A-04066_AE
O-Rings
Cat. No. 8-0524
Cat. No. 9-3026
Cat. No. 9-3025
Torch Head
Cat. No. 9-9041
Cat. No. 9-9429
O-Ring, Cat. No. 9-3029
Inner O-Ring (Cat. No. 9-3030)
Location (Under Locking Ring)
O-Ring, Cat. No. 9-3028
Art # A-07087_AD
300 Amp and Less
Snap Ring
Cartridge Assembly
Cartridge Retaining
Ring (Cat. No. 9-9489)
O-Ring, Cat. No. 9-3029
Inner O-Ring (Cat. No. 9-3030)
Location (Under Speed Lock Ring)
O-Ring, Cat. No. 9-3028
Art # A-09684_AD
O-Ring,
Cat. No.
9-3029
O-Ring,
Cat. No. 8-0561
O-Ring, Cat. No. 8-0547
Cartridge Assembly
Speed Lock Ring and
Threaded Ring
removed for clarity
Outer Cartridge
