ESAB 100i - Page 218

TORCH DATA 100i-400i 218 Manual 0560956430

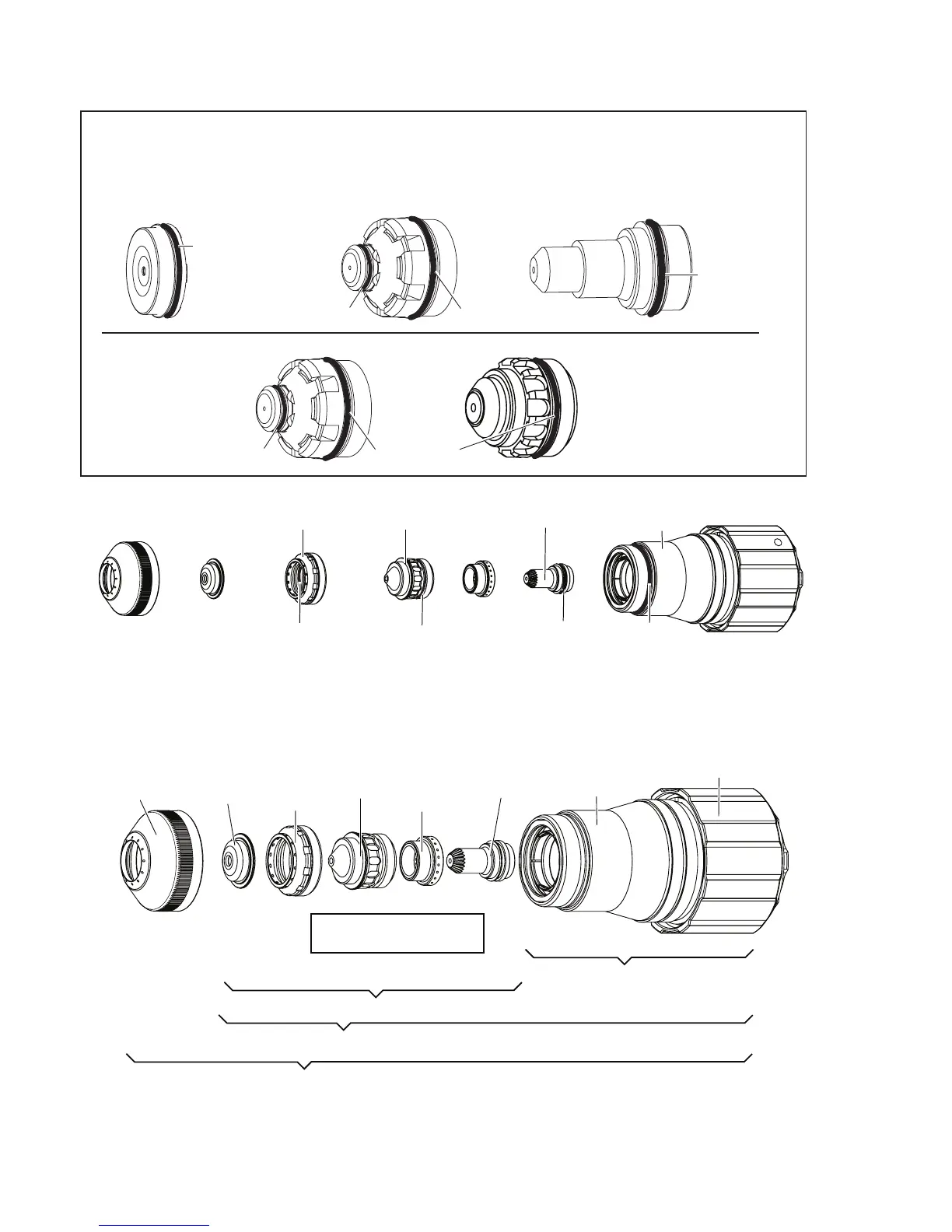

Consumables O-Rings (up to 150 Amps)
O-Ring 9-9039
Shield Cap Tips Up to 100 Amps Electrode
O-Ring 9-9060
O-Ring 9-9061
O-Ring 9-9035
Art # A-07161_AB
O-Ring 9-9060
O-Ring 9-9038
150 Amp Tip
200 Amp Tip
Consumables O-Rings (300 Amps)
Electrode
Shield Cup
Tip
Shield Gas Distributor
Ar
t # A-07419_AB
O-Ring
9-9035
O-Ring
9-9060
O-Ring
9-9060
O-Ring
8-0558
Assembly Sequence, 200/300 Amp Consumables
Tip
Electrode
Plasma Gas
Distributor
Shield Cap
Shield Gas
Distributor
Shield Retainer
Shield Cup
Assembly sequence:
Cartridge
1
2
3
4
Art # A-07424_AB
