ESAB 100i - Power Supply Replacement Parts - Left Side

100i / 200i / 300i / 400i
106 PARTS LISTS Manual PN: 0560956430
6.11 Power Supply Replacement Parts - Left Side
Item # Qty Description Ref. Des. Catalog #
1 1 AC Suppresion PCB 9-9254
2 1 Main Contactor (2 total) W1, W2 9-7318
3 1 Inverter Module, Full, 480 VAC 9-7330
3 1 Inverter Module, Full, 400 VAC 9-7317
(100 and 200 Amp Systems use 1)
(300 Amp System uses 2)
(400 Amp System uses 3)
4 1 Inverter Module, Partial 480 VAC (For 200A and 300A ONLY) 9-7331
4 1 Inverter Module, Partial 400 VAC (For 200A and 300A ONLY) 9-7319
1
2
3
4

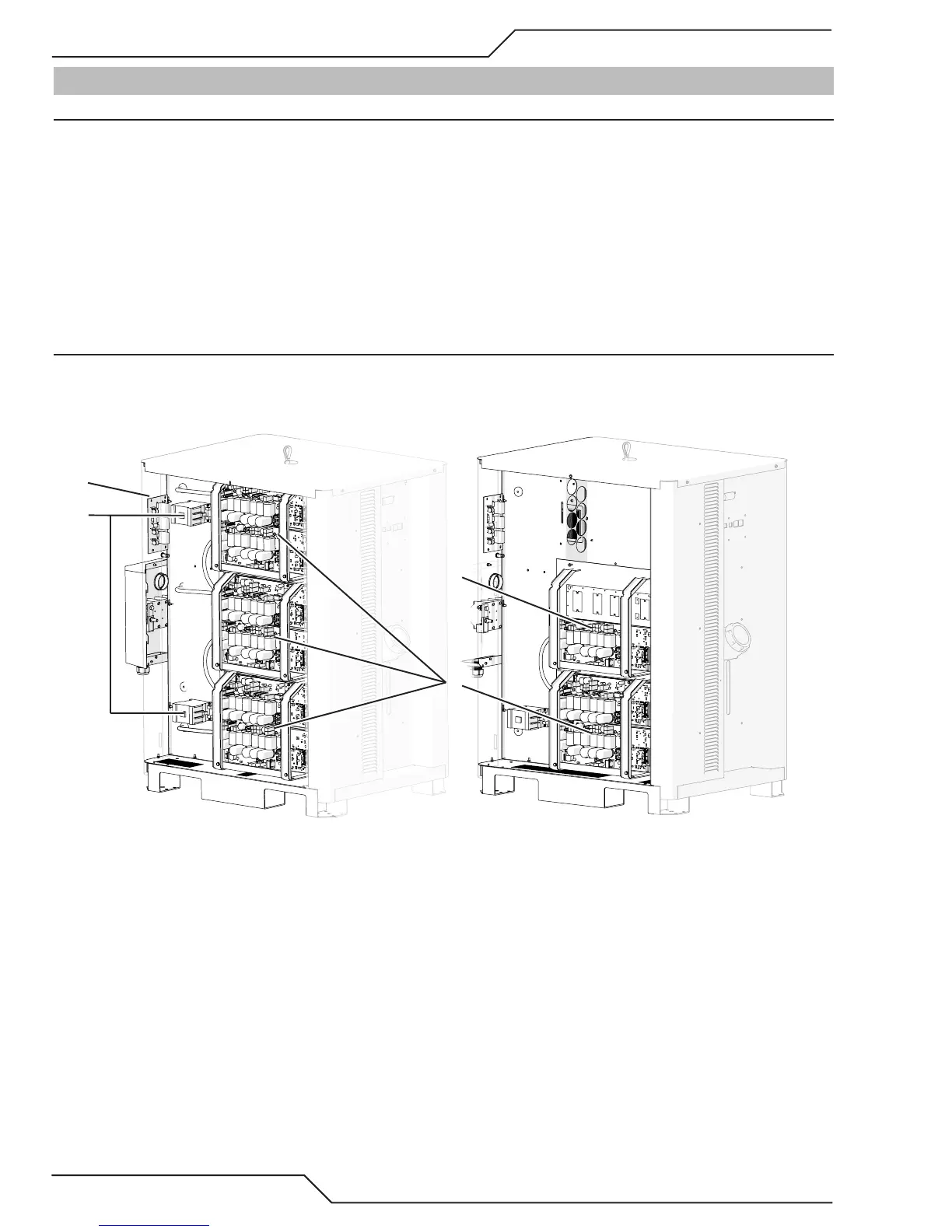

400 Amp Power Supply
200 Amp Power Supply
Art # A-12185
