ESAB 100i - Module and Component Installation

100i / 200i / 300i / 400i
Manual PN: 0560956430 INSTALLATION 41
3.11 Connect Coolant Leads

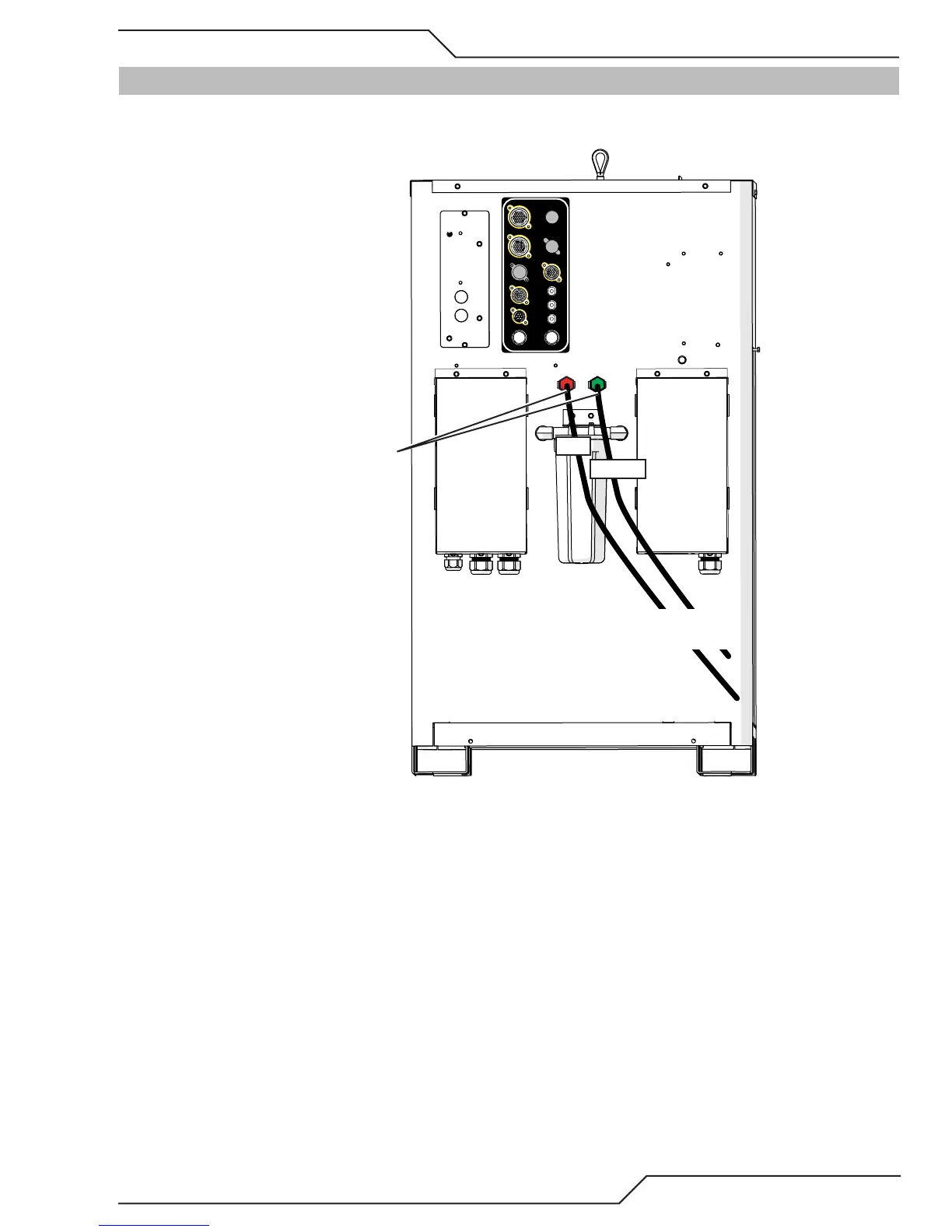

1. Connect the color-coded coolant hoses to the coolant connections on the power supply rear panel. The supply line (out)
is flagged green, the return line (in) is flagged red.
COOLANT
RETURN SUPPLY
Coolant Connections
RED
GREEN
To RAS 1000 Arc Starter or
HE-400 Heat Exchanger if used
Art # A-11534_AB
USER INPUT
HEIGHT CONTROL
F1 - 8A SB 230 VAC F2 - 8A SB 230 VAC
CB4 - 5A 120 VAC
CB3 - 5A 24 VAC
CB2 - 5A 120 VAC
J55 - GCM
J15 - CNC
J59 - RAS
J70 - HE
J54 - TSC /COMM
To remote arc starter or heat
exchanger.
