ESAB 100i - Connect Cables for CNC, Remote Arc Starter, Gas Selection, and Heat Exchanger

100i / 200i / 300i / 400i
42 INSTALLATION Manual PN: 0560956430
3.12 Connect Cables for CNC, Remote Arc Starter, Gas Selection, and Heat Exchanger
1. Connect one end of each cable to the power supply.
2. Connect the other end of the CNC cable to the CNC device.
3. The CNC cable shield must be attached to ground at the CNC end.
USER INPUT
HEIGHT CONTROL
F1 - 8A SB 230 VAC F2 - 8A SB 230 VAC
CB4 - 5A 120 VAC
CB3 - 5A 24 VAC
CB2 - 5A 120 VAC
J55 - GCM
J15 - CNC
J59 - RAS
J70 - HE
J54 - TSC /COMM

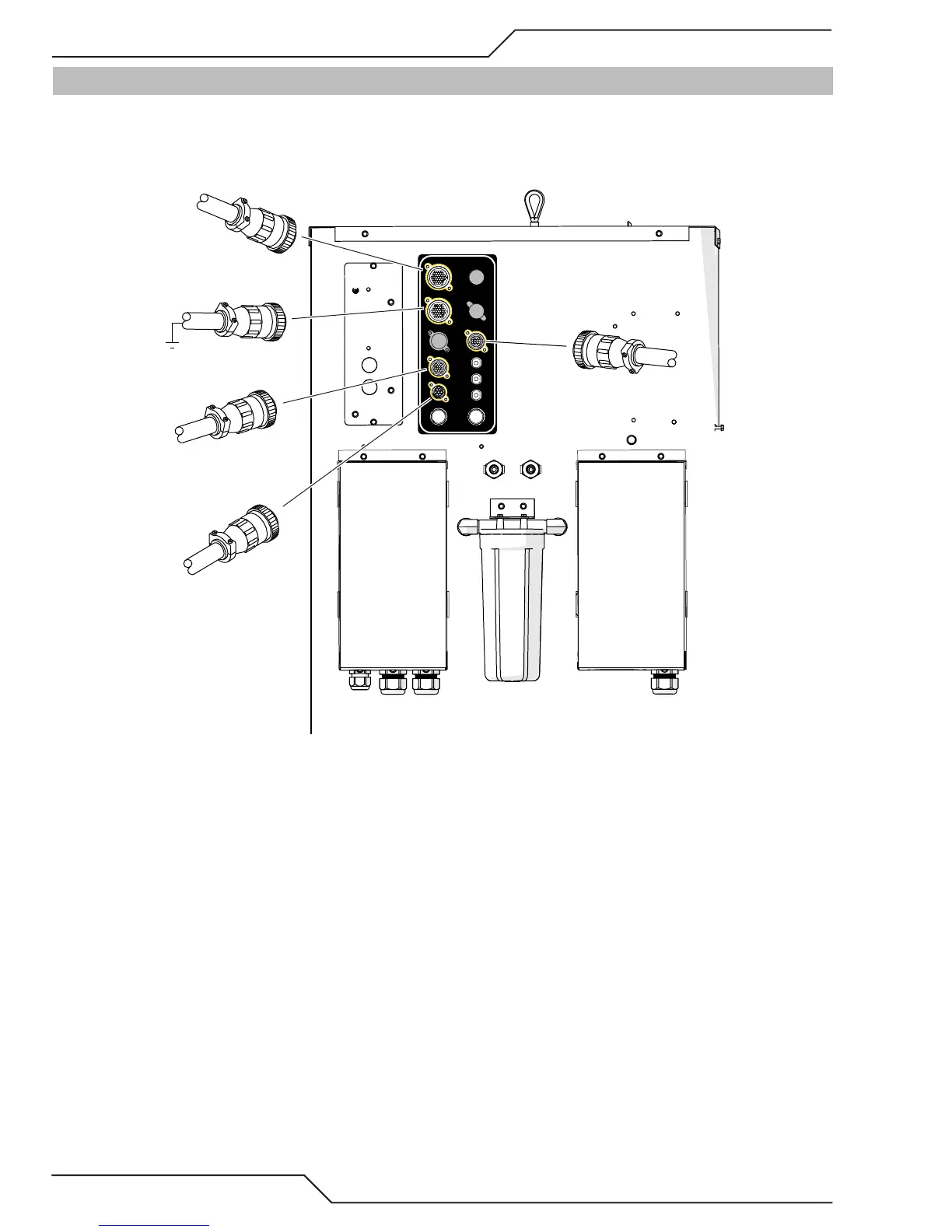

Art # A-11994
J15 To CNC Control
J59 To Remote
Arc Starter
J55 To DMC-3000
J70 To Heat
Exchanger
J54 TSC/
Comm
J55 To Gas Selection
