ESAB 100i - Set Switches on the Command - Control Module

100i / 200i / 300i / 400i
Manual PN: 0560956430 INSTALLATION 49

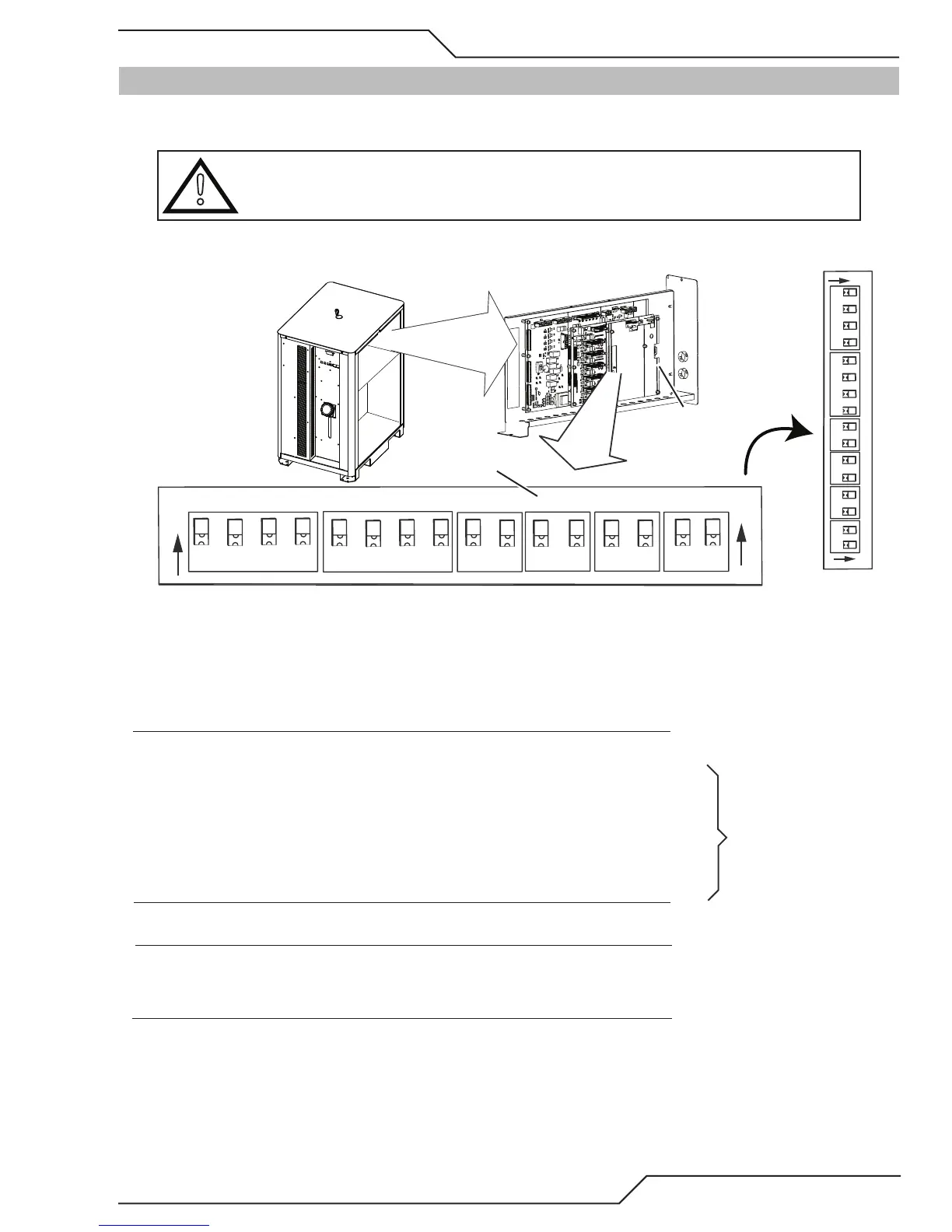

3.15 Set Switches on the Command - Control Module
Remove the power supply upper right side. Set switches on the CCM (Command-Control Module) per the illustrations. Switch
settings and connection details are provided in the Appendix. Any changes made require a restart of the power supply.
!
CAUTION
Printed circuit boards in the Command - Control Module are static - sensitive. Discharge any
built-up static charges in your body or surroundings before touching the printed circuit boards.
USB
SW1 SW3SW4SW5SW8
3
4
1
2
3
4
1
2
1
2
1
2
1
2
1
2
SW-1-1: Auto Pilot Restart. 1 = ON = Auto Pilot Function enabled.
1 = OFF = Auto Pilot Function disabled (Factory default setting).
SW-1-2: Pilot Delay 2 = OFF, 3 = OFF, 4 = OFF: 0 Seconds (Factory default setting).
SW-1-3: Pilot Delay 2 = ON, 3 = OFF, 4 = OFF: 0.1 Seconds
SW-1-4: Pilot Delay 2 = OFF, 3 = ON, 4 = OFF: 0.2 Seconds
2 = ON, 3 = ON, 4 = OFF: 0.4 Seconds
2 = OFF, 3 = OFF, 4 = ON: 0.8 Seconds
2 = ON, 3 = OFF, 4 = ON: 1.0 Seconds
2 = OFF, 3 = ON, 4 = ON: 1.5 Seconds
2 = ON, 3 = ON, 4 = ON: 2.0 Seconds
SW-4: Postflow Time 1 = OFF, 2 = OFF: 10 Seconds (Factory default setting).
1 = ON, 2 = OFF: 20 Seconds
1 = OFF, 2 = ON: 5 Seconds
1 = ON, 2 = ON: 0 Seconds
SW-5-1: Tip Saver Reserved for Factory use.
SW-5-2: Off Plate Reserved for Factory use.
1 = ON = Long (3 s.)
O
N
O
N
Active only when
SW-1-1 is set to ON.
Art # A-11890_AB
SW 8-2: Remote Current 1 = OFF = Disabled (Factory default setting).
1 = ON = (Remote Analog Current Control) Also set SW11 to “A” position
*SW 8-3: Auto Transfer Retry1 = OFF = Enabled Up to 3 tries (Factory default setting).
1 = ON = Disabled
SW 8-4: OFF = Disabled (Factory default setting).
ON = Remote Marking SW Enabled at TB3-1&2
Switches shown in OFF position
SW9
SW 8-1: Pilot Time 1 = OFF = Short (85 ms.) (Factory default setting).
SW-3: Gas Preflow Time 1 = Off, 2 = OFF: 3 seconds
1 = ON, 2 = OFF: 4 seconds
1 = OFF, 2 = ON: 6 seconds
1 = ON, 2 = ON: 8 seconds
Future Use
SW1 SW3SW4SW5SW8
3
4
1
2
3
4
1
2
1
2
1
2
1
2
1
2
O N
O N
Switches shown in OFF position
SW9
Actual orientation
