ESAB 100i - CNC Cable Color Code

100i / 200i / 300i / 400i
Manual PN: 0560956430 APPENDIX A-9

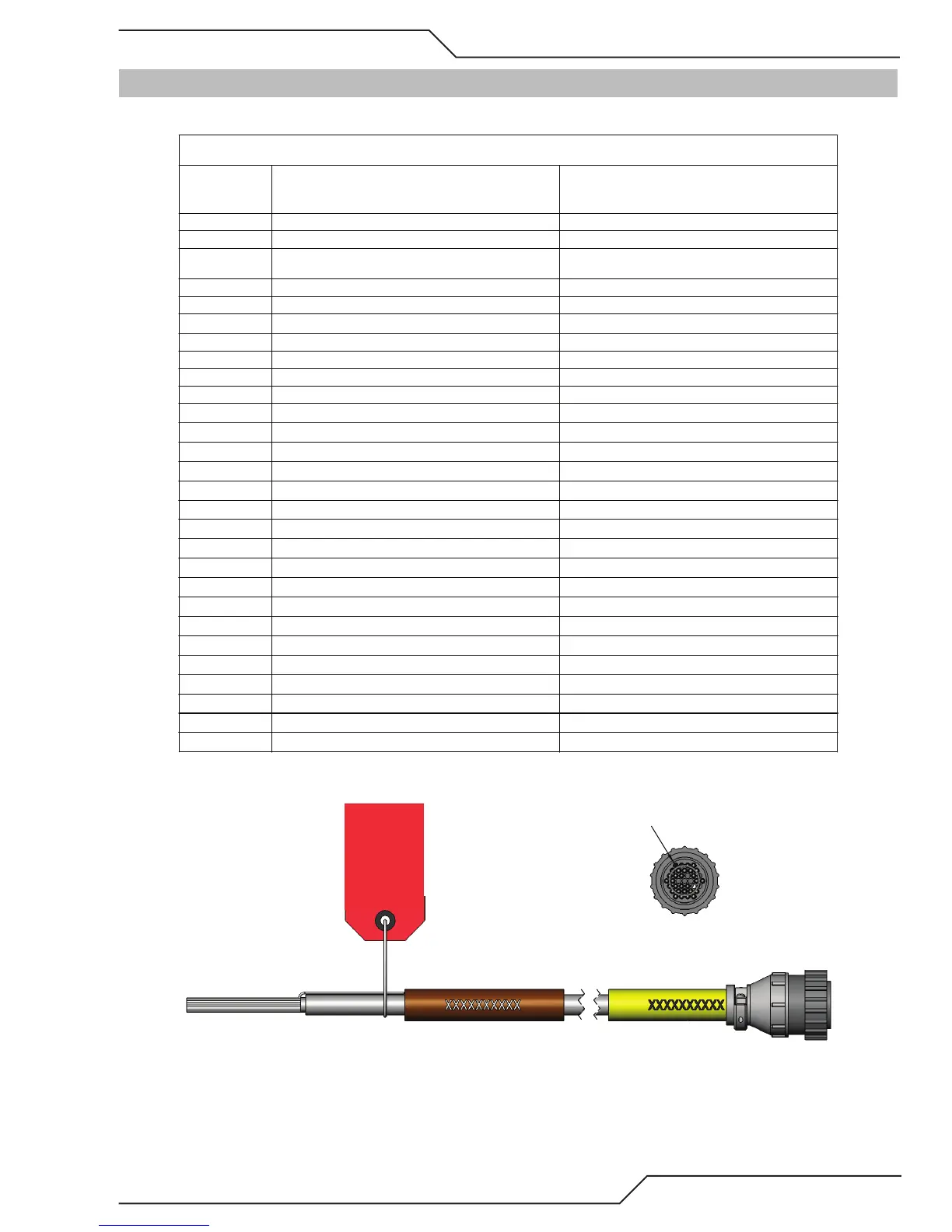

CNC Cable Color Code
PIN 1
Art # A-12757
TABLE 1: CABLE ITEM#4 COLOR CODE TABLE
PIN
LOCATION
COLOR SIGNAL DESCRIPTION
3 WHITE/BLUE START CNC (+)
4 WHITE/VIOLET START CNC (-)
5 WHITE/BROWN/VIOLET DIV ARC (-)
6 WHITE/BROWN DIV ARC(+)
7 YELLOW PREFLOW ON (+)
8 GREEN COMM 1K
9 WHITE/BLACK/BROWN PREFLOW ON (-)
10 WHITE/BROWN/BLUE CORNER CR (+)
11 WHITE/BLACK CORNER CR (-)
12 BLACK OK TO MOVE (-)
14 BLUE OK TO MOVE (+)
16 WHITE/BROWN/YELLOW /HOLD START (+)
17 WHITE/BROWN/GREEN /HOLD START (-)
21 WHITE/BLACK/ORANGE /PLASMA MARK (+)
22 WHITE/BLACK/RED /PLASMA MARK (-)
23 WHITE/BROWN/ORANGE /CUT EXPANDED METAL (+)
24 ORANGE /CUT EXPANDED METAL (-)
25 RED /CNC PLASMA ENABLE (+)
26 BROWN /CNC PLASMA ENABLE (-)
29 WHITE/BROWN RED REMOTE CC POT HIGH
30 WHITE REMOTE CC (ANALOG)
31 GRAY REMOTE CC POT LOW
32 VIOLET STOP SW (MOMENTARY)
33 WHITE/BLACK/YELLOW STOP SW RETURN
34 WHITE/BLACK/GRAY PILOT IS ON (A)
35 WHITE/BLACK/VIOLET PILOT IS ON (B)
36 WHITE/BLACK/BLUE SPARE OUT #1 (A)
37 WHITE/BLACK/GREEN SPARE OUT #1 (B)
