ESAB 100i - Gas Control Unit Replacement Parts

100i / 200i / 300i / 400i
Manual PN: 0560956430 PARTS LISTS 109
6.14 Gas Control Unit Replacement Parts
Item # Qty Description Catalog #
1 1 Gas Control Unit Assembly 0559099443
2 1 Gas Control Unit - PCB 9-8262
3 1 SMPS PCB 9-8263
4 1 Shield Gas P Valve 9-8267
5 1 Sensor, Pressure, 1/8mnpt (six total) 9-8269
6 1 Solenoid 9-8264
7 1 Plasma Lo and Pre-Flow P Valve 9-8268
8 1 Gas Control Unit Manifold Fully Assembled 9-7658

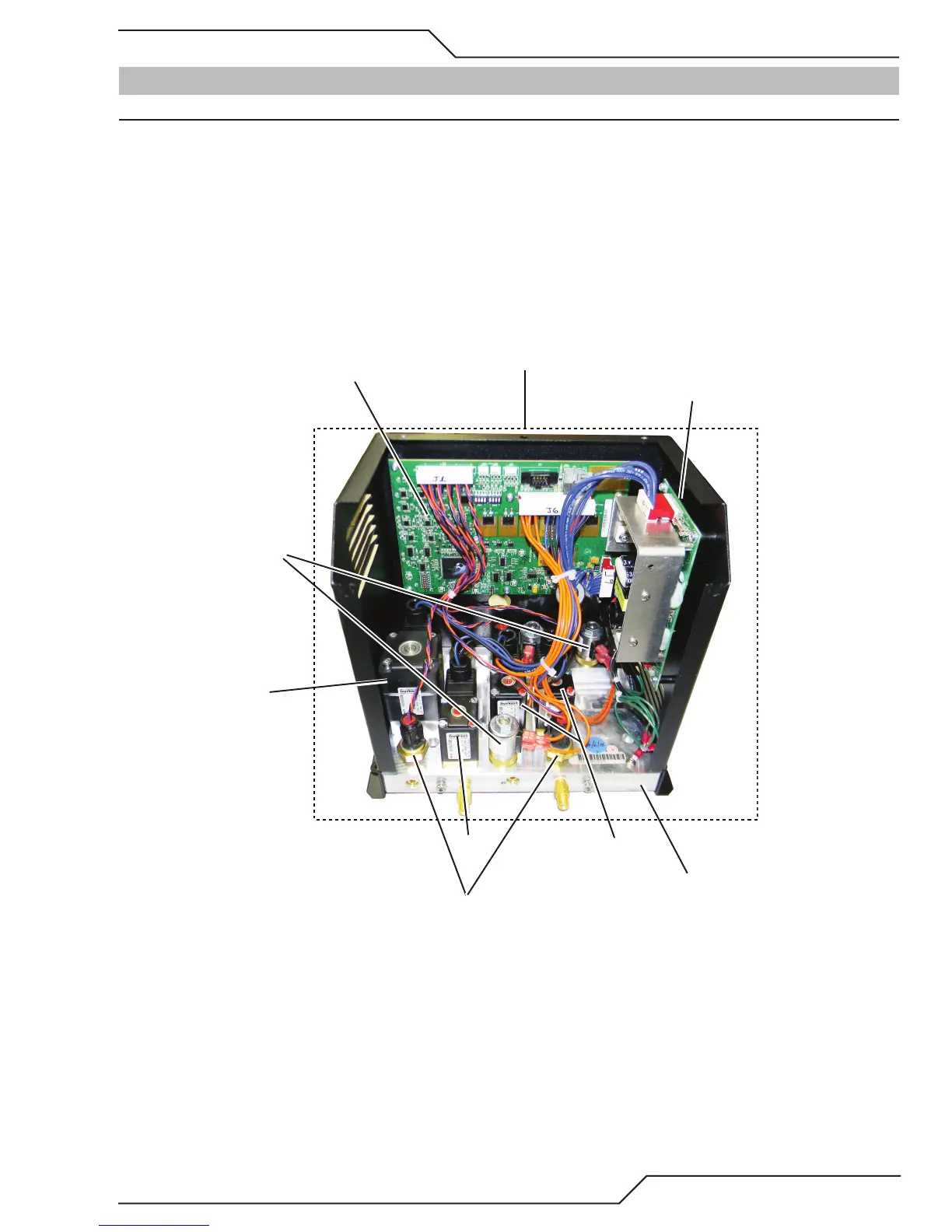

Art # A-09164_AC
1
2
3
4
5
7
8
7
6
