100i / 200i / 300i / 400i
Manual PN: 0560956430 TORCH INFORMATION 115
CAUTION
The cartridge assembly must cover the O-Ring on the torch head.
Do not force the cartridge if it will not tighten fully. Remove the cartridge assembly and gently
clean the threads on the torch head with a wire brush. Apply oxygen-compatible lubricant
(supplied with the torch) to the threads.
Torch Head O-Ring
Torch Head
Art # A-07202_AB
0.063 - 0.083"
(1.6 - 2.1 mm)
Protrusion

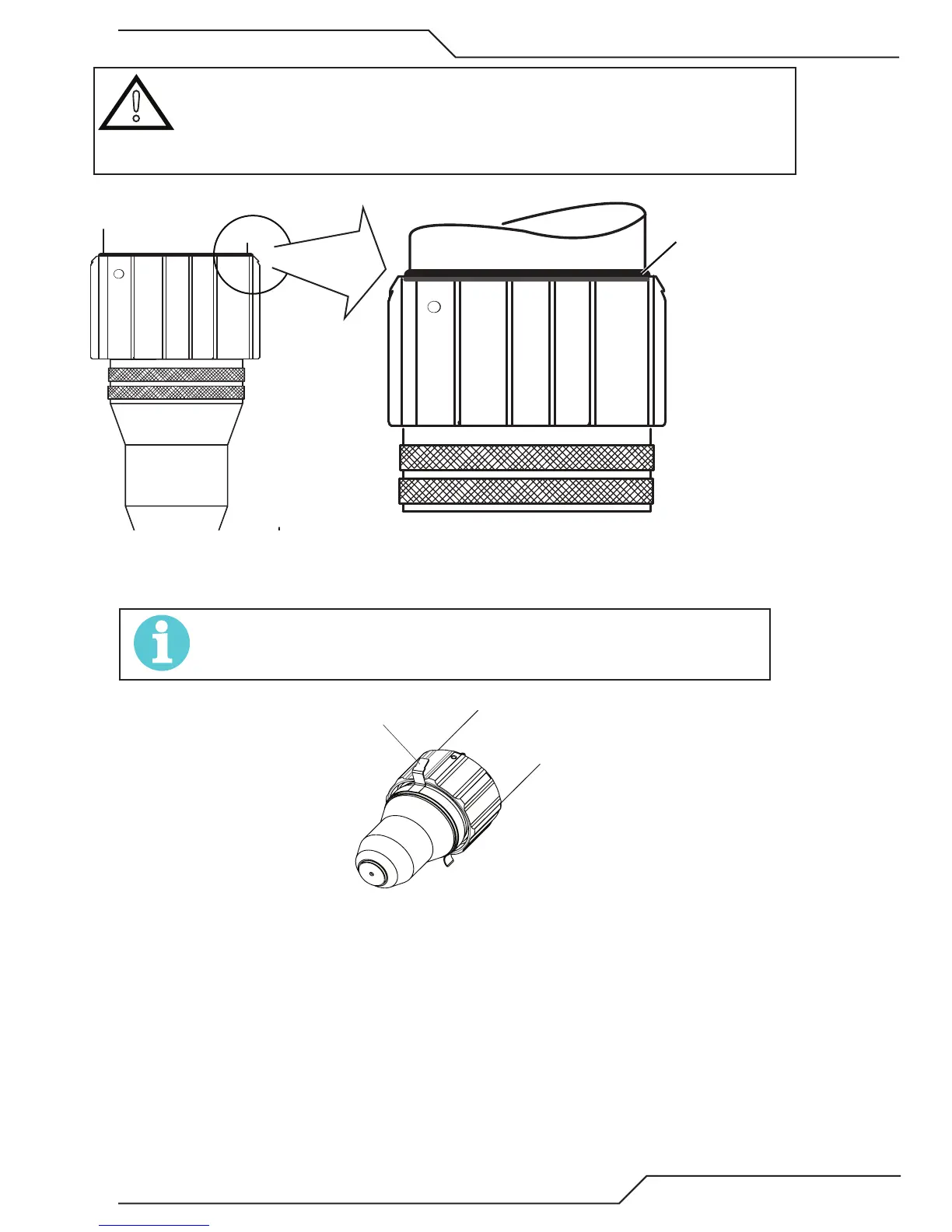

Installing Assembled Cartridge Onto Torch Head
3. Slide the ohmic clip over the shield cup if using ohmic torch height control sensing.
NOTE!
Ohmic height sensing is not recommended with water shield. Water on the plate inter-
feres electrically with the ohmic sensing circuit.
Ohmic Clip
Art # A-03393_AB
4. Connect the wire lead from the height finder to the ohmic clip.
To Next Page
