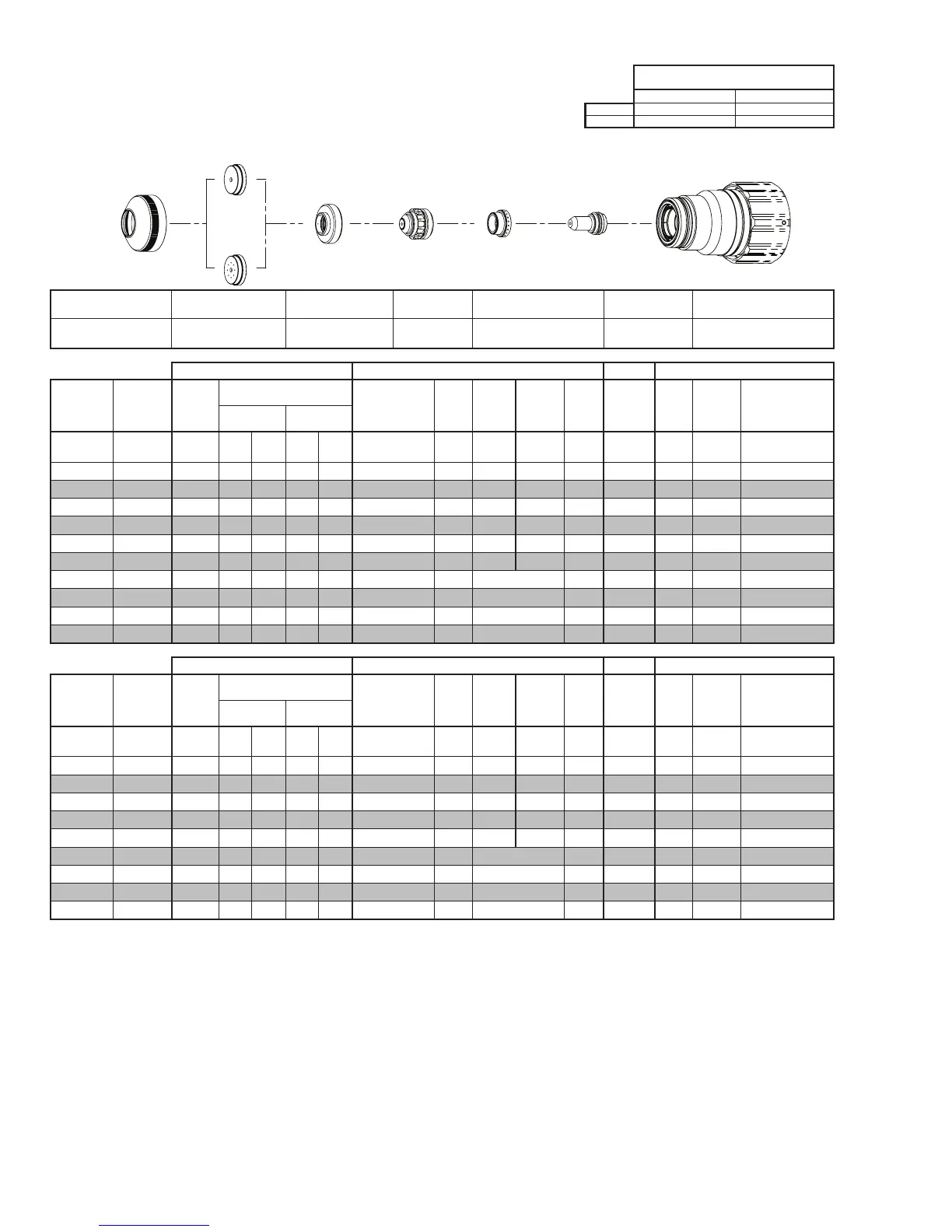

TORCH DATA 100i-400i 170 Manual 0560956430
Aluminum
Flow Rates (SLPM / SCFH)
200A Bevel Cut
H35 N₂
Preow
- / - 62 / 132
H35 Plasma / N₂ Shield
Culow
33 / 71 44 / 94
Electrode
Shield Retainer
Tip
Art # A-08567_AB
Plasma Gas
Distributor
Cartridge Assembly
This Art Is For Reference ONLY
Shield Cap
Shield Gas
Distributor
Shield Retainer Shield Cap
Shield Gas
Distributor
Tip Plasma Gas Distributor Electrode Cartridge
0559211211
< 1” / 0559210149
≥ 1” / 0559210148
0559210082 0559210128 0559210062 0559210110 0559211300
Manual Gas Control Advanced Torch Height Control (THC) Basic THC CNC Control
Eecve
Material
Thickness
Min.
Clearance
Pre Flow
Pressure
(N₂)
Cut Flow Rates / Pressures
Eecve Cut
Height
THC
Pierce
Delay
Pierce
Ignion
Height
Elevaon
Height
Control
Delay
Pierce
Height
without
Elevaon
Travel
Speed
CNC
Moon
Delay
Max Kerf Width
@ Rec. Speed
Plasma (H35) Shield (N₂)
inch (in) (psi) Ball (psi) Ball (psi) (in) (sec) (in) (in) (sec) (in) (ipm) (sec) (in)
0.375 0.080 20 100 100 NA 110 0.300 - 0.550 0.2 0.300 0.250 0.2 0.400 180 0.2 0.113
0.500 0.080 20 100 100 NA 110 0.300 - 0.550 0.2 0.250 0.200 0.4 0.350 150 0.2 0.119
0.625 0.080 20 100 100 NA 110 0.300 - 0.550 0.5 0.250 0.200 0.3 0.350 110 0.3 0.120
0.750 0.080 20 100 100 NA 110 0.300 - 0.550 0.7 0.300 0.250 0.2 0.400 70 0.4 0.130
0.875 0.080 20 100 100 NA 110 0.350 - 0.550 1.0 0.350 0.300 0.2 0.450 55 0.5 0.139
1.000 0.080 20 100 100 NA 110 0.350 - 0.550 1.3 0.400 0.300 0.2 0.500 40 0.7 0.150
1.250 0.080 20 100 100 NA 110 0.400 - 0.550 0.4 Edge Start 0.2 Edge 32 0.4 0.161
1.500 0.080 20 100 100 NA 110 0.400 - 0.550 0.4 Edge Start 0.2 Edge 25 0.4 0.170
1.750 0.080 20 100 100 NA 110 0.400 - 0.550 0.4 Edge Start 0.2 Edge 20 0.4 0.188
2.000 0.080 20 100 100 NA 110 0.400 - 0.550 0.4 Edge Start 0.2 Edge 15 0.4 0.205
Manual Gas Control Advanced Torch Height Control (THC) Basic THC CNC Control
Eecve
Material
Thickness
Min.
Clearance
Pre Flow
Pressure
(N₂)
Cut Flow Rates / Pressures
Eecve Cut
Height
THC
Pierce
Delay
Pierce
Ignion
Height
Elevaon
Height
Control
Delay
Pierce
Height
without
Elevaon
Travel
Speed
CNC
Moon
Delay
Max Kerf Width
@ Rec. Speed
Plasma (H35) Shield (N₂)
(mm) (mm) (Bar) Ball (Bar) Ball (Bar) (mm) (sec) (mm) (mm) (sec) (mm)
(mm/
min)
(sec) (mm)
10 2.0 1.4 100 6.9 NA 7.6 7.6 - 14.0 0.2 7.4 6.2 0.2 10.0 4460 0.2 2.9
12 2.0 1.4 100 6.9 NA 7.6 7.6 - 14.0 0.2 6.6 5.4 0.4 9.2 3980 0.2 3.0
15 2.0 1.4 100 6.9 NA 7.6 7.6 - 14.0 0.4 6.4 5.1 0.3 8.9 3070 0.3 3.0
20 2.0 1.4 100 6.9 NA 7.6 8.0 - 14.0 0.8 8.0 6.7 0.2 10.5 1660 0.4 3.4
25 2.0 1.4 100 6.9 NA 7.6 8.9 - 14.0 1.3 10.0 7.6 0.2 12.5 1060 0.7 3.8
30 2.0 1.4 100 6.9 NA 7.6 10.2 - 14.0 0.4 Edge Start 0.2 Edge 860 0.4 4.0
35 2.0 1.4 100 6.9 NA 7.6 10.2 - 14.0 0.4 Edge Start 0.2 Edge 720 0.4 4.2
40 2.0 1.4 100 6.9 NA 7.6 10.2 - 14.0 0.4 Edge Start 0.2 Edge 600 0.4 4.5
50 2.0 1.4 100 6.9 NA 7.6 10.2 - 14.0 0.4 Edge Start 0.2 Edge 400 0.4 5.2
BOLD TYPE indicates maximum piercing parameters. BOLD ITALIC indicates edge starts only.
