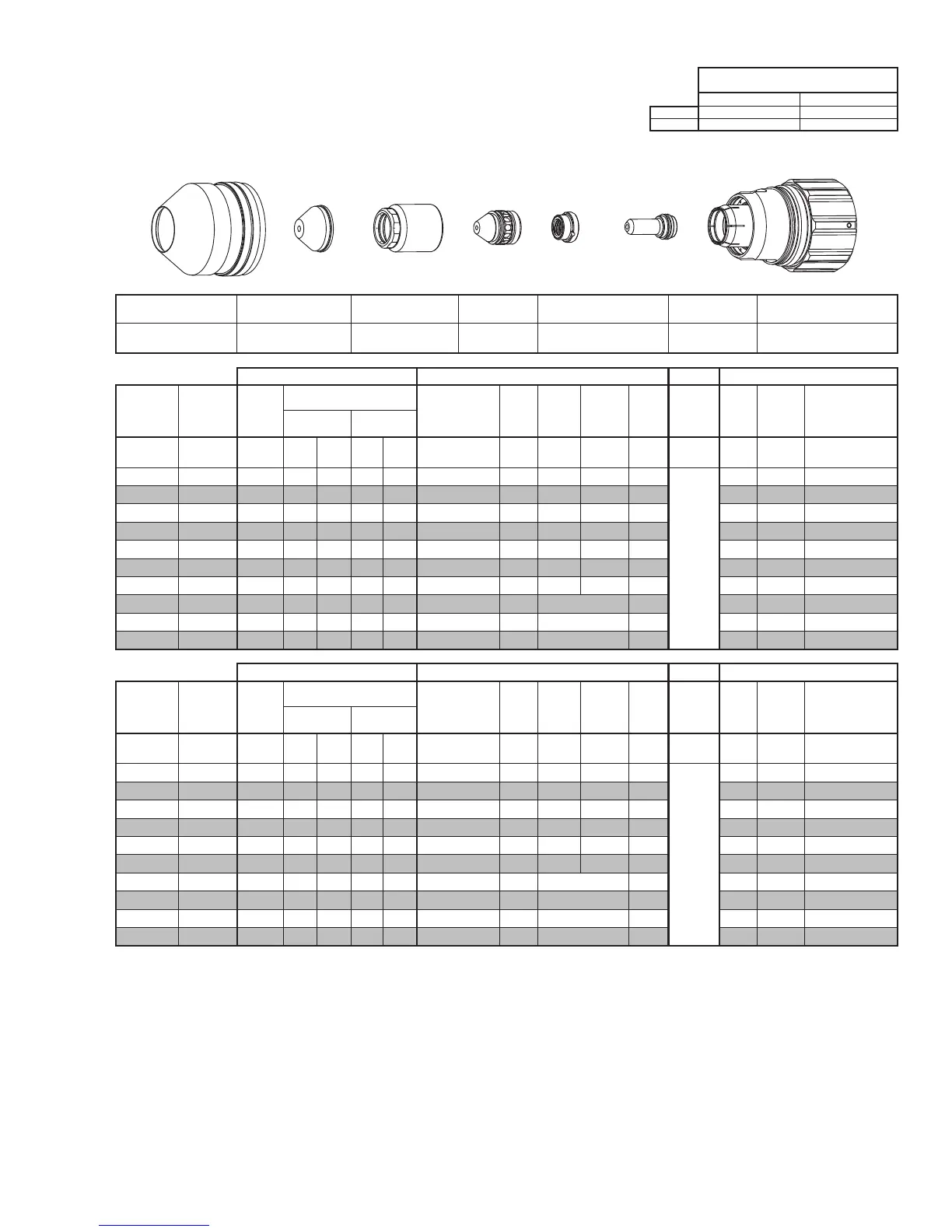

Manual 0560956430 209 TORCH DATA 100i-400i
Aluminum
Flow Rates (SLPM / SCFH)
400A Bevel Cut
H35 N₂
Preow
- / - 207 / 439
H35 Plasma / N₂ Shield
Culow
47 / 100 173 / 367
Shield Cup
Shield Cap
Shield Gas
Distributor
Tip
Gas
Distributor
Electrode
Cartridge Assembly
This Art Is For Reference Only
Art# A-10444
Shield Cup Shield Cap
Shield Gas
Distributor
Tip Plasma Gas Distributor Electrode Cartridge
0559211401
≤ 1” / 0559210154
> 1” / 0559210155
0559210083 0559210132 0559210065 0559210112 0559211400
Manual Gas Control Advanced Torch Height Control (THC) Basic THC CNC Control
Eecve
Material
Thickness
Min.
Clearance
Pre Flow
Pressure
(N₂)
Cut Flow Rates / Pressures
Eecve Cut
Height
THC
Pierce
Delay
Pierce
Ignion
Height
Elevaon
Height
Control
Delay
Pierce
Height
without
Elevaon
Travel
Speed
CNC
Moon
Delay
Max Kerf Width
@ Rec. Speed
Plasma (H35) Shield (N₂)
inch (in) (psi) Ball (psi) Ball (psi) (in) (sec) (in) (in) (sec) (in) (ipm) (sec) (in)
0.750 0.080 30 120 100 NA 100 0.350 - 0.600 0.6 0.450 0.400 0.2
Not Recommended without
Elevaon Height
120 0.4 0.230
1.000 0.080 30 120 100 NA 100 0.350 - 0.600 0.7 0.450 0.500 0.2 90 0.5 0.220
1.250 0.080 30 120 100 NA 100 0.350 - 0.600 0.8 0.450 0.500 0.2 80 0.6 0.225
1.500 0.080 30 120 100 NA 100 0.400 - 0.600 1.4 0.500 0.750 0.2 60 1.2 0.235
1.750 0.080 30 120 100 NA 100 0.400 - 0.600 2.2 0.500 0.750 0.2 45 1.8 0.250
2.000 0.080 30 120 100 NA 100 0.400 - 0.600 3.8 0.500 0.750 0.2 30 3.2 0.260
2.250 0.080 30 120 100 NA 100 0.400 - 0.600 6.5 0.500 0.750 0.2 20 4.5 0.275
2.500 0.080 30 120 100 NA 100 0.400 - 0.600 3.0 Edge Start 0.2 15 3.0 0.280
3.000 0.080 30 120 100 NA 100 0.400 - 0.600 3.0 Edge Start 0.2 10 3.0 0.290
3.500 0.080 30 120 100 NA 100 0.400 - 0.600 3.0 Edge Start 0.2 5 3.0 0.325
Manual Gas Control Advanced Torch Height Control (THC) Basic THC CNC Control
Eecve
Material
Thickness
Min.
Clearance
Pre Flow
Pressure
(N₂)
Cut Flow Rates / Pressures
Eecve Cut
Height
THC
Pierce
Delay
Pierce
Ignion
Height
Elevaon
Height
Control
Delay
Pierce
Height
without
Elevaon
Travel
Speed
CNC
Moon
Delay
Max Kerf Width
@ Rec. Speed
Plasma (H35) Shield (N₂)
(mm) (mm) (Bar) Ball (Bar) Ball (Bar) (mm) (sec) (mm) (mm) (sec) (mm)
(mm/
min)
(sec) (mm)
20 2.0 2.1 120 6.9 NA 6.9 8.9 - 15.2 0.6 11.4 10.5 0.2
Not Recommended without
Elevaon Height
2930 0.4 5.8
25 2.0 2.1 120 6.9 NA 6.9 8.9 - 15.2 0.7 11.4 12.5 0.2 2330 0.5 5.6
30 2.0 2.1 120 6.9 NA 6.9 8.9 - 15.2 0.8 11.4 12.7 0.2 2100 0.6 5.7
35 2.0 2.1 120 6.9 NA 6.9 9.5 - 15.2 1.1 12.1 16.0 0.2 1770 0.9 5.8
40 2.0 2.1 120 6.9 NA 6.9 10.2 - 15.2 1.6 12.7 19.1 0.2 1410 1.4 6.1
50 2.0 2.1 120 6.9 NA 6.9 10.2 - 15.2 3.6 12.7 19.1 0.2 810 3.0 6.6
60 2.0 2.1 120 6.9 NA 6.9 10.2 - 15.2 3.0 Edge Start 0.2 420 3.0 7.0
70 2.0 2.1 120 6.9 NA 6.9 10.2 - 15.2 3.0 Edge Start 0.2 320 3.0 7.2
80 2.0 2.1 120 6.9 NA 6.9 10.2 - 15.2 3.0 Edge Start 0.2 220 3.0 7.6
90 2.0 2.1 120 6.9 NA 6.9 10.2 - 15.2 3.0 Edge Start 0.2 120 3.0 8.3
BOLD TYPE indicates maximum piercing parameters. BOLD ITALIC indicates edge starts only.
