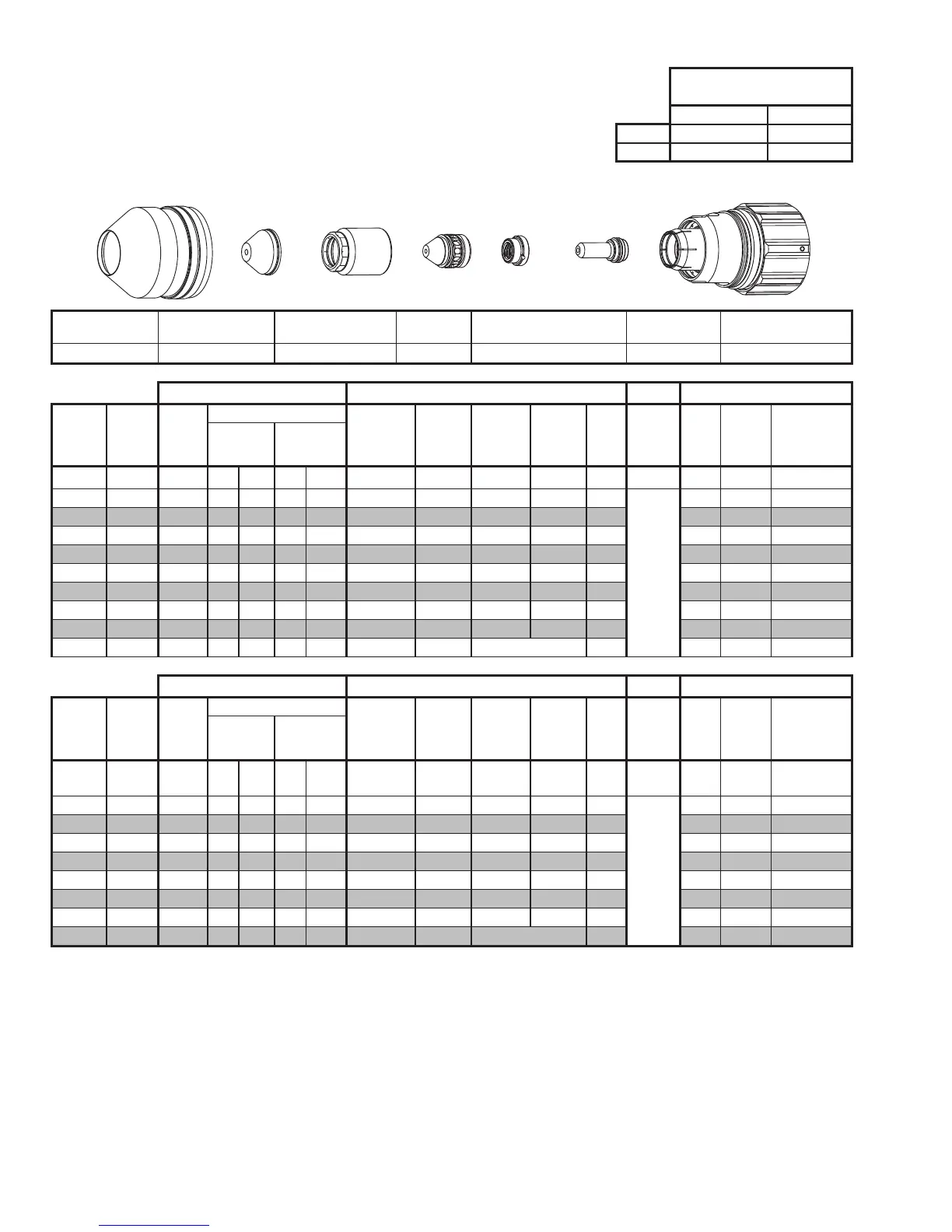

TORCH DATA 100i-400i 208 Manual 0560956430
Stainless Steel
400A Bevel Cut
N₂ Plasma / H₂O Shield
Flow Rates
N₂ (SLPM / SCFH) H₂O (GPH / LPH)
Preow
22 / 47 8 / 30
Culow 72 / 153 8 / 30
Shield Cup Shield Cap
Shield Gas
Distributor
Tip Plasma Gas Distributor Electrode Cartridge
0559211401 0559210156 0559210084 0559210132 0559210063 0559210113 0559211400
Manual Gas Control Advanced Torch Height Control (THC) Basic THC CNC Control
Eecve
Material
Thickness
Min.
Clearance
Pre Flow
Pressure
(N2)
Cut Flow Rates / Pressures
Eecve Cut
Height
THC Pierce
Delay
Pierce
Ignion
Height
Elevaon
Height
Control
Delay
Pierce
Height
without
Elevaon
Travel
Speed
CNC
Moon
Delay
Max Kerf Width
@ Rec. Speed
Plasma (N₂) Shield (H₂O)
inch (in) (psi) Ball (psi) Ball (psi)* (in) (sec) (in) (in) (sec) (in) (ipm) (sec) (in)
0.375 0.080 17 150 119 8 na 0.200 - 0.600 0.4 0.400 0.300 0.2
Not Recommended without
Elevaon Height
150 0.3 0.132
0.500 0.080 17 150 119 8 na 0.200 - 0.600 0.6 0.450 0.300 0.2 130 0.4 0.200
0.625 0.080 17 150 119 8 na 0.200 - 0.600 0.8 0.450 0.400 0.2 110 0.6 0.200
0.750 0.080 17 150 119 8 na 0.200 - 0.600 1.2 0.450 0.400 0.2 90 0.7 0.200
1.000 0.080 17 150 119 8 na 0.200 - 0.600 2.0 0.450 0.400 0.2 75 1.0 0.230
1.250 0.080 17 150 119 8 na 0.250 - 0.600 2.5 0.450 0.450 0.2 40 1.5 0.230
1.500 0.080 17 150 119 8 na 0.250 - 0.600 3.0 0.450 0.500 0.2 30 2.3 0.240
1.750 0.080 17 150 119 8 na 0.300 - 0.600 3.5 0.450 0.500 0.2 25 2.7 0.245
2.000 0.080 17 150 119 8 na 0.300 - 0.600 4.0 Edge Start 0.2 17 4.0 0.245
Manual Gas Control Advanced Torch Height Control (THC) Basic THC CNC Control
Eecve
Material
Thickness
Min.
Clearance
Pre Flow
Pressure
(N2)
Cut Flow Rates / Pressures
Eecve Cut
Height
THC Pierce
Delay
Pierce
Ignion
Height
Elevaon
Height
Control
Delay
Pierce
Height
without
Elevaon
Travel
Speed
CNC
Moon
Delay
Max Kerf Width
@ Rec. Speed
Plasma (N₂) Shield (H₂O)
(mm) (mm) (Bar) Ball (Bar) Ball (Bar)* (mm) (sec) (mm) (mm) (sec) (mm)
(mm/
min)
(sec) (mm)
10 2.0 1.2 150 8.2 8 na 5.1 - 15.2 0.4 10.4 7.6 0.2
Not Recommended without
Elevaon Height
3730 0.3 3.6
12 2.0 1.2 150 8.2 8 na 5.1 - 15.2 0.6 11.2 7.6 0.2 3410 0.4 4.7
15 2.0 1.2 150 8.2 8 na 5.1 - 15.2 0.7 11.4 9.5 0.2 2930 0.5 5.1
20 2.0 1.2 150 8.2 8 na 5.1 - 15.2 1.3 11.4 10.2 0.2 2230 0.7 5.2
25 2.0 1.2 150 8.2 8 na 5.1 - 15.2 1.9 11.4 10.2 0.2 1930 1.0 5.8
30 2.0 1.2 150 8.2 8 na 6.0 - 15.2 2.4 11.4 11.1 0.2 1260 1.4 5.8
40 2.0 1.2 150 8.2 8 na 6.7 - 15.2 3.1 11.4 12.7 0.2 720 2.4 6.1
50 2.0 1.2 150 8.2 8 na 7.6 - 15.2 3.9 Edge Start 0.2 460 3.8 6.2
BOLD TYPE indicates maximum piercing parameters. BOLD ITALIC indicates edge starts only.
BOLD TYPE indicates maximum piercing parameters.
* Pressure of the water supply line should be regulated by customer pressure regulator.
Note1: Ohmic height sensing is not recommended with water shield. Water on the plate interferes electrically with the ohmic sensing circuit.
Note2: Water source used for shield must be demineralized.
This Art Is For Reference Only
Shield Cup
Shield Cap
Shield Gas
Distributor
Tip
Gas
Distributor
Electrode
Cartridge Assembly
Art# A-10445
